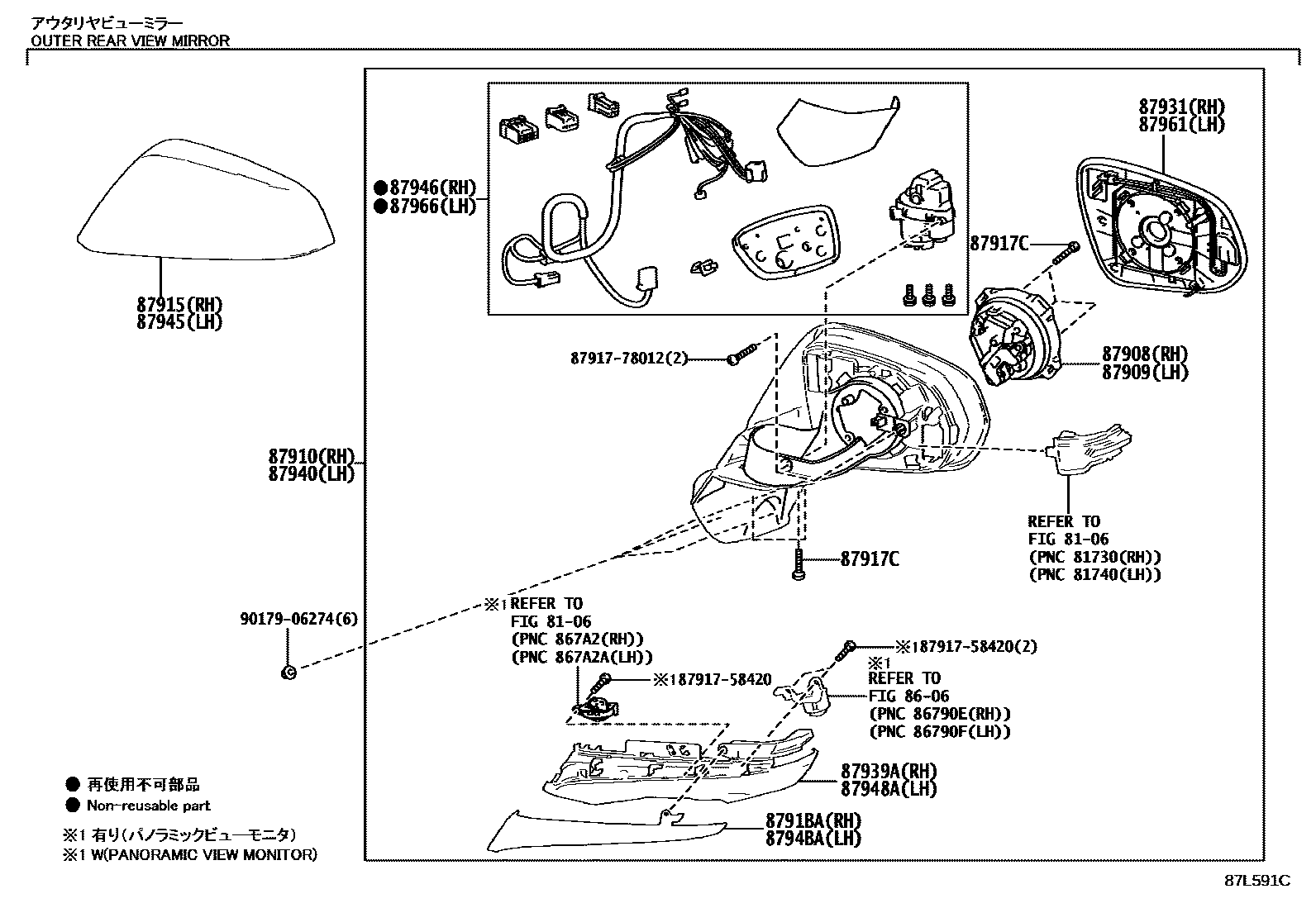

MIRROR
8106
8606
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
PERIPHERAL MONITOR CAMERA-WITH(*PVM),BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5,8Z2
sub87910-46232
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
sub87910-46252
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC& SAFE EXIT ASSIST),BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
87915COVER, OUTER MIRROR, RH
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
NO PAINT REQ.,BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
87917CSCREW, OUTER MIRROR
8791BACOVER, OUTER MIRROR, RH NO.3
sub8791B-48A31
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
sub8791B-48D61
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
87931OUTER MIRROR, RH
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
87939ACOVER, OUTER MIRROR HOLE, RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
87940MIRROR ASSY, OUTER REAR VIEW, LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM),BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5,8Z2
sub87940-46232
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
sub87940-46252
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
PERIPHERAL MONITOR CAMERA-WITH(*PVM)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC& SAFE EXIT ASSIST),BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
87945COVER, OUTER MIRROR, LH
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
87946RETRACTOR, OUTER MIRROR, RH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
87948ACOVER, OUTER MIRROR HOLE, LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
8794BACOVER, OUTER MIRROR, LH NO.3
sub8794B-48C31
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
sub8794B-48D71
BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
87961MIRROR OUTER, LH
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
87966RETRACTOR, OUTER MIRROR, LH
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
BACK MONITOR-WITH(*PVM)
REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
BACK MONITOR-WITH(*PVM)
PERIPHERAL MONITOR CAMERA-WITH(*PVM)
8791758420ESCUTCHEON
main87917-58420
8791778012ESCUTCHEON
main87917-78012
9017906274
main90179-06274
20 parts on this diagram · 2 diagrams in section
