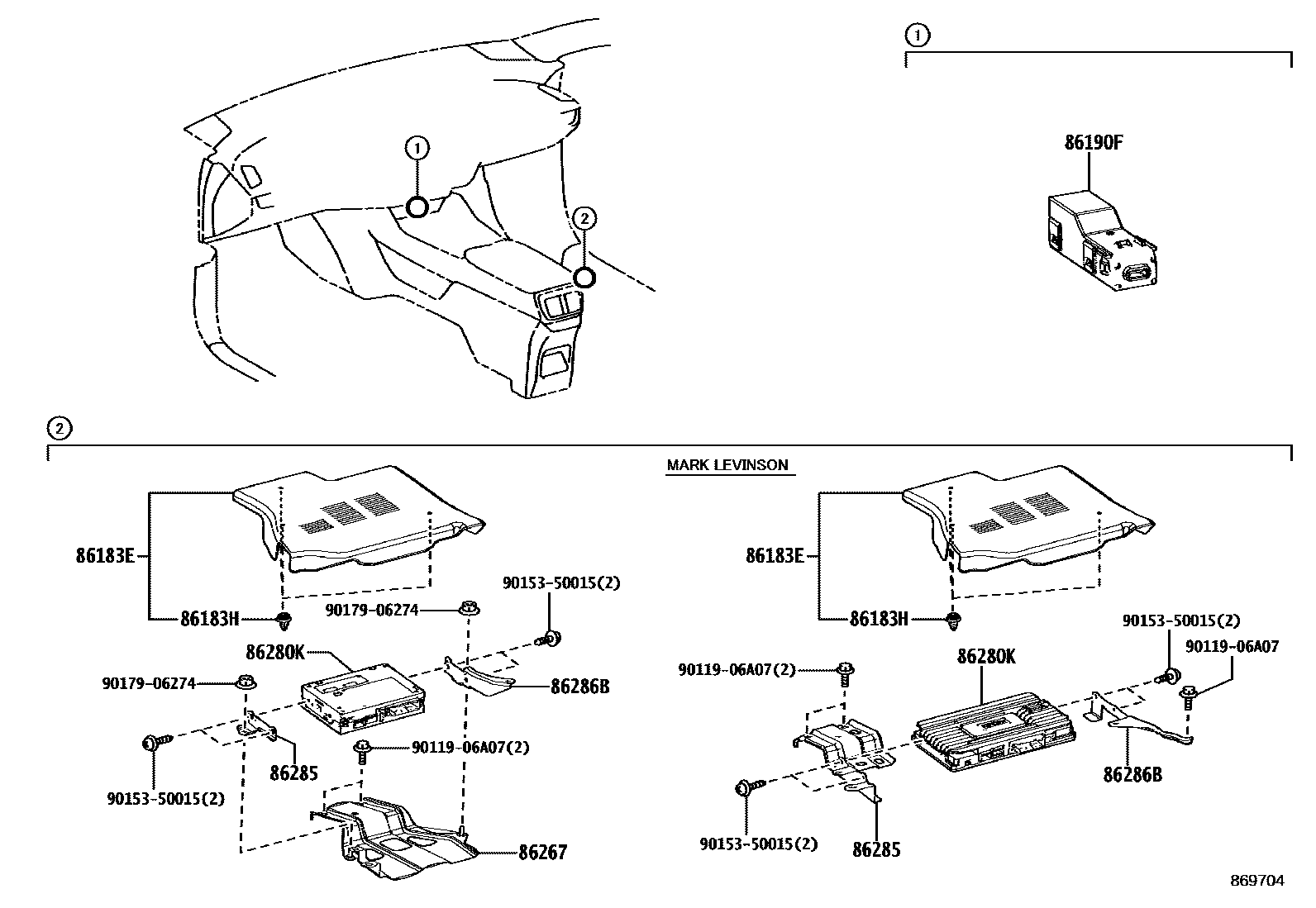

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AMPLIFIER 0002 1CONDENSER

86183ECOVER, AUDIO AMPLIFIER

main86183-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

86183HCLIP, AUDIO AMPLIFIER COVER

main90467-09232iXEBM15..B..CHI202301-202311

86190FADAPTER ASSY, STEREO JACK

main86190-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

86267BRACKET, TAPE PLAYER, NO.3

main86286-42060iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

86280KAMPLIFIER ASSY, STEREO COMPONENT

main86280-46010iXEBM15..B..CHI202301-202311

main86280-46020iXEBM1#..C..CHI202301-202311

AUDIO-EMV & 10SPEAKER

main86280-46040iXEBM15..L..CHI202301-202407

AUDIO-EMV

main86280-46040iXEBM15..L..(ARL,EUR,GEN)202301-202407

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&AUDIO-EMV

main86280-46041iXEBM15..L..CHI202408

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&AUDIO-EMV

main86280-46041iXEBM15..L..CHI202408

AUDIO-EMV

86285BRACKET, AMPLIFIER, NO.1

main86285-46010iXEBM15..B..CHI202301-202311

main86285-46020iXEBM1#..L..(ARL,EUR,GEN)202301-202311

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&AUDIO-EMV

main86285-46020iXEBM1#..L..(ARL,EUR,GEN)202301-202311

AUDIO-EMV

86286BBRACKET, AMPLIFIER, NO.2

main86286-46010iXEBM15..B..CHI202301-202311

main86286-46020iXEBM1#..L..(ARL,EUR,GEN)202301-202311

PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&AUDIO-EMV

main86286-46020iXEBM1#..L..(ARL,EUR,GEN)202301-202311

AUDIO-EMV

9011906A07

main90119-06A07

9015350015

main90153-50015

9017906274

main90179-06274

10 parts on this diagram · 2 diagrams in section
