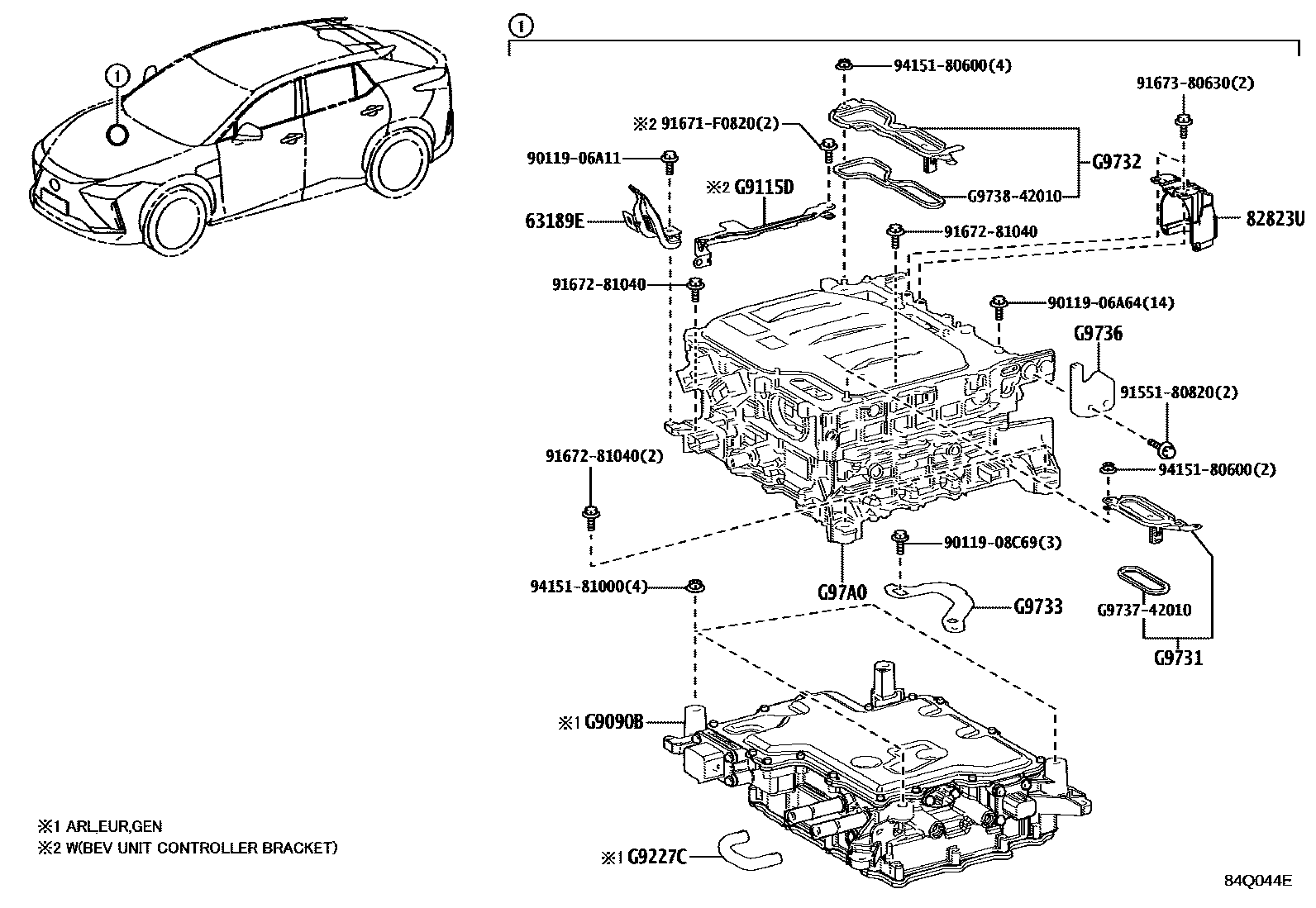

DC/DC CONVERTER & CHARGER(BEV OR FCEV)

0001 1 0002 1 0003 1 0004 1CHARGE CABLE

63189EBRACKET, WIRING HARNESS CONNECTOR

main63189-42020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

82823UCAP, TERMINAL

main82823-42080iXEBM10202311

G9090BCHARGER ASSY, ELECTRIC VEHICLE

mainG909046010iXEBM1#..ARL,EUR,GEN202301-202409

mainG909046011iXEBM1#..ARL,EUR,GEN202409

G9115DBRACKET, BEV UNIT CONTROLLER

mainG911546010iXEBM10..CHI202311-202411

G9227CHOSE, INVERTER COOLING, NO.3

mainG922746010iXEBM15..ARL,EUR,GEN202301-202311

G9731COVER, TERMINAL, NO.1

mainG973142010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9732COVER, TERMINAL, NO.2

mainG973242011iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

mainG973242012iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

G9733BRACKET, EARTH

mainG973342010iXEBM15..B..CHI202301-202311

G9736PROTECTOR, CONNECTOR, NO.3

mainG973642010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G97A0UNIT ASSY, ELECTRIC CONVERTER W/CAP

mainG97A042120iXEBM15..ARL,EUR,GEN202307-202311

mainG97A042170iXEBM1#..ARL,EUR,GEN202311-202404

subG97A0-42171

mainG97A042171iXEBM1#..ARL,EUR,GEN202405

mainG97A046010iXEBM15..ARL,EUR,GEN202301-202307

subG97A0-42120

mainG97A046060iXEBM15..CHI202301-202307

subG97A0-46100

mainG97A046101iXEBM15..(C,L)..CHI202307-202311

mainG97A046110iXEBM10..CHI;XEBM15..(C,L)..CHI202311-202504

subG97A0-46111

9011906A11

main90119-06A11

9011906A64

main90119-06A64

9011908C69

main90119-08C69

9155180820

main91551-80820

91671F0820

main91671-F0820

9167281040

main91672-81040

9167380630

main91673-80630

9415180600

main94151-80600

9415181000

main94151-81000

G973742010GASKET, TERMINAL COVER, NO.1

mainG9737-42010

G973842010GASKET, TERMINAL COVER, NO.2

mainG9738-42010

21 parts on this diagram · 4 diagrams in section
