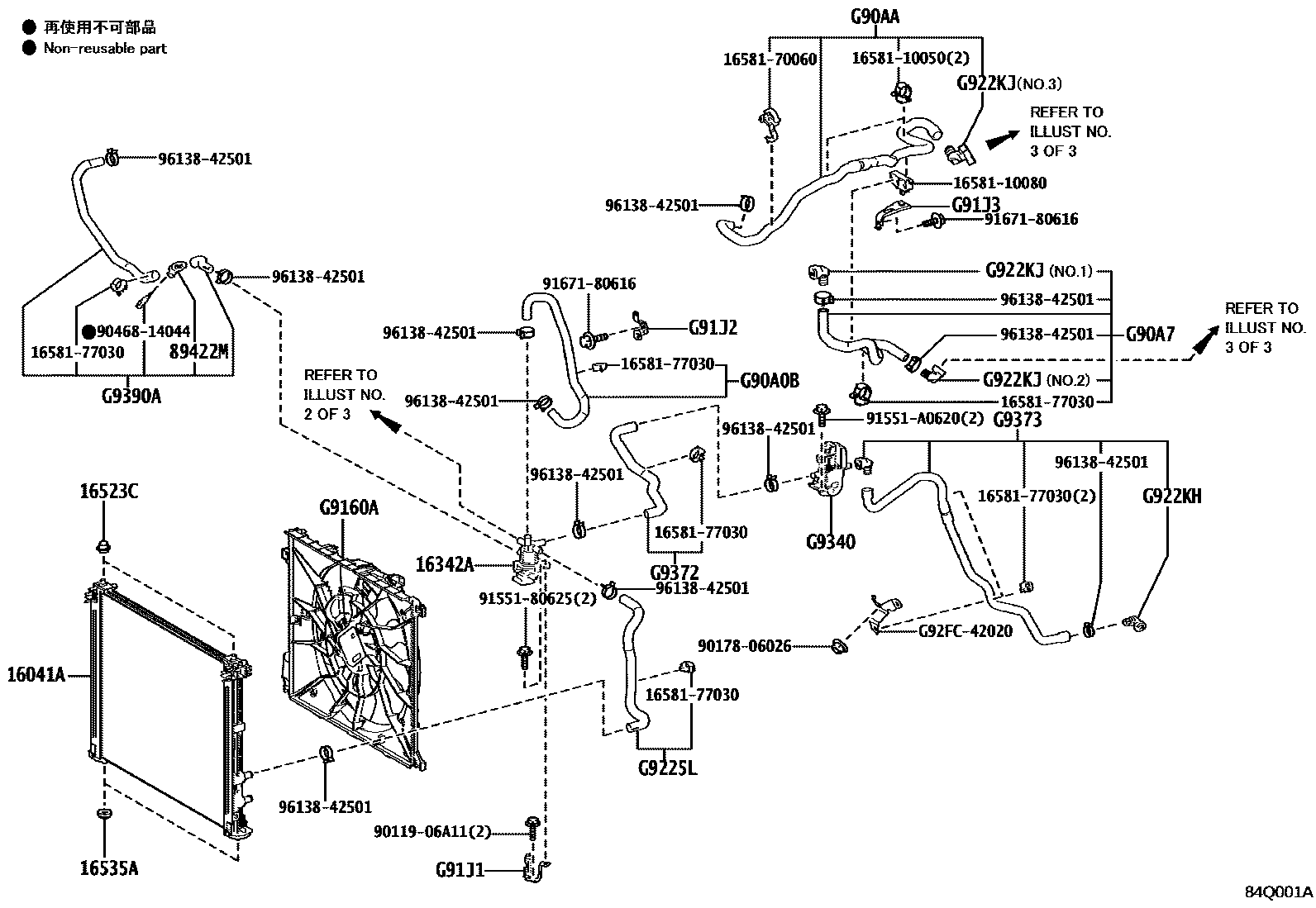

BEV COOLING

0001 1FRONT HOSE 1/2 0002 1FRONT HOSE 2/2 0003 1FRONT HOSE 1/2 0004 1FRONT HOSE 2/2 0005 1REAR HOSE 0006 1 0007 1

16041ARADIATOR SUB-ASSY, L/CAP

main16041-10010iEM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

16342AVALVE, WATER CONTROL

main16342-10010iEM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

16523CCUSHION, RADIATOR SUPPORT

main16523-37010iEM..XEBM15..B..CHI202301-202311

16535ASUPPORT, RADIATOR, LOWER

main90480-40021iEM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

89422MSENSOR, WATER TEMPERATURE

main89422-33040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G90A0BHOSE ASSY, INVERTER COOLING, NO.1

mainG90A242010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G90A7HOSE SUB-ASSY, INVERTER COOLING, NO.7

mainG90A742010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G90AAHOSE SUB-ASSY, INVERTER COOLING, NO.10

mainG90AA42010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9160AFAN ASSY, INVERTER COOLING W/MOTOR

mainG916042020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G91J1BRACKET, INVERTER COOLING, NO.1

mainG91J142010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

mainG91J142030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

G91J2BRACKET, INVERTER COOLING, NO.2

mainG91J242010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G91J3BRACKET, INVERTER COOLING, NO.3

mainG91J342010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9225LHOSE, INVERTER COOLING, NO.1

mainG922542030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G922KHCONNECTOR, WATER HOSE, NO.1

mainG922K33020iXEBM15..B..CHI202301-202311

G922KJCONNECTOR, WATER HOSE, NO.2

mainG922K33020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

NO.1

mainG922K33030iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

NO.3

mainG922K47011iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

NO.2

G9340HEATER ASSY, BATTERY COOLANT

mainG96H142020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9372HOSE, EV WATER BY-PASS, NO.2

mainG937242010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9373HOSE, EV WATER BY-PASS, NO.3

mainG93A042010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9390HOSE ASSY, EV WATER PUMP, NO.1

mainG938042010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

G9390AHOSE ASSY, EV WATER PUMP, NO.2

mainG939042010iXEBM15..B..CHI202301-202311

1658110050CLAMP, HOSE(FOR WATER HOSE)

main16581-10050

1658110080CLAMP, HOSE(FOR WATER HOSE)

main16581-10080

1658170060CLAMP, HOSE(FOR WATER HOSE)

main16581-70060

1658177030CLAMP, HOSE(FOR WATER HOSE)

main16581-77030

9011906A11

main90119-06A11

9017806026

main90178-06026

9046814044

main90468-14044

9155180625

main91551-80625

91551A0620

main91551-A0620

9167180616

main91671-80616

9613842501

main96138-42501

G92FC42020BRACKET, BATTERY COOLING, NO.1

mainG92FC-42020

32 parts on this diagram · 7 diagrams in section
