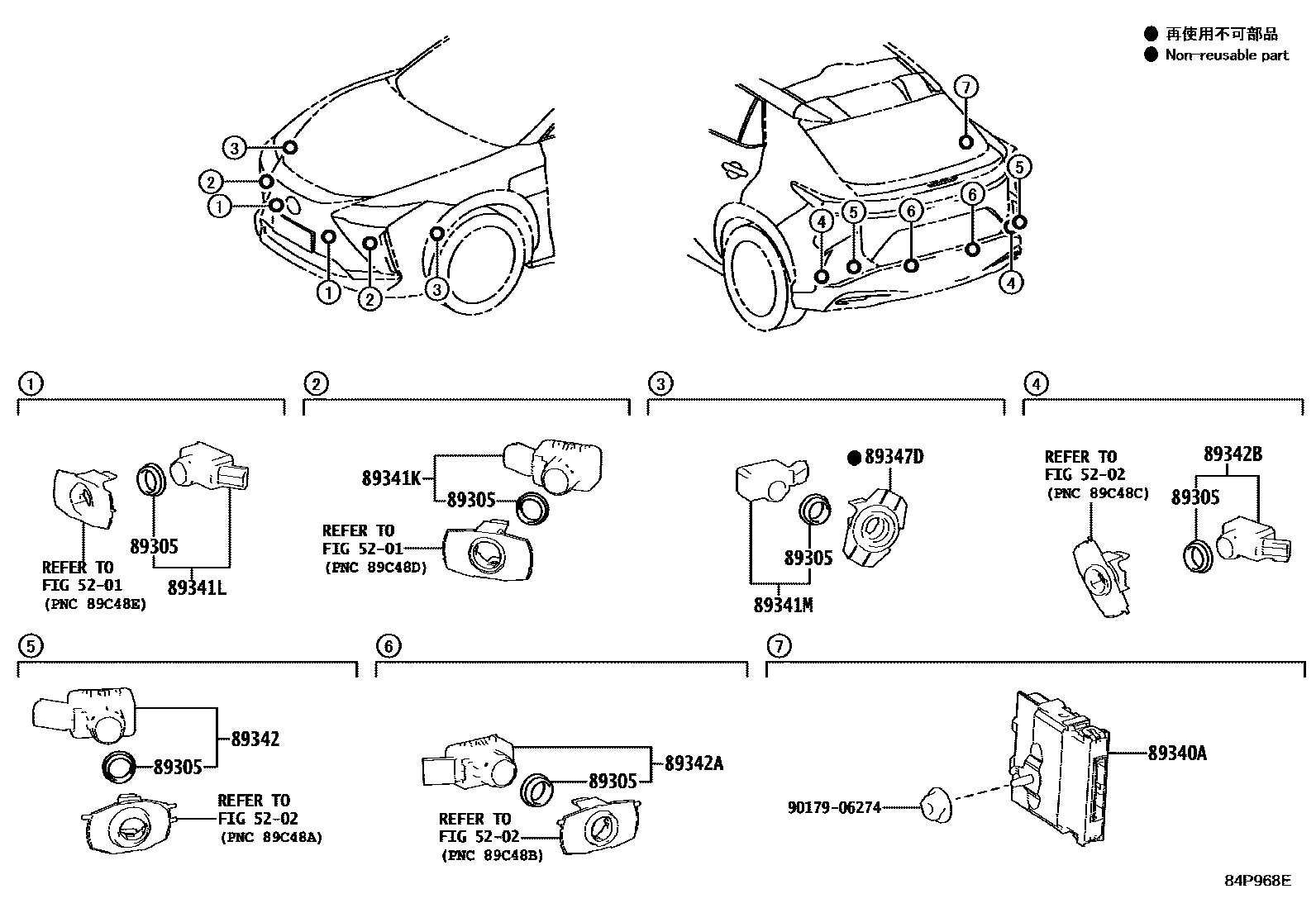

CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
ADVANCED PARK-WITH
89341KSENSOR, ULTRASONIC, FRONT CORNER
GRAPHITE BLACK GF.,223
SONIC QUARTZ,085
BLACK,2YF ,2YG ,2YH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),SONIC COPPER,2YF
SONIC IRIDIUM,1L2
COLD AREA SPEC,SONIC CHROME,2YH
AETHER ME.,2YG ,8Z2
METALLIC BLACK,085 ,1L1 ,1L2 ,223 ,4Y5 ,8Z2
89341LSENSOR, ULTRASONIC, FRONT CENTER
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),SONIC QUARTZ,085
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),BLACK,2YF ,2YG ,2YH
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),SONIC COPPER,2YF ,4Y5
SONIC IRIDIUM,1L2
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),SONIC CHROME,1L1 ,2YH
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),AETHER ME.,2YG ,8Z2
METALLIC BLACK,085 ,1L1 ,1L2 ,223 ,4Y5 ,8Z2
89341MSENSOR, ULTRASONIC, FRONT SIDE
DUMMY-MAT BLACK
WHEEL ARCH MOULDING-PAINTED,BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
89342SENSOR, ULTRASONIC, REAR CORNER
DUMMY-MAT BLACK
WHEEL ARCH MOULDING-PAINTED&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING,BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
89342ASENSOR, ULTRASONIC, REAR CENTER
DUMMY-MAT BLACK
WHEEL ARCH MOULDING-PAINTED&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING,BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2
89342BSENSOR, ULTRASONIC, REAR SIDE
WHEEL ARCH MOULDING-PAINTED&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)&ADVANCED PARK-WITH,SONIC QUARTZ,085
SONIC IRIDIUM,1L2
ADVANCED PARK-WITH,SONIC CHROME,1L1 ,2YH
WHEEL ARCH MOULDING-PAINTED&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ADVANCEDPARK-WITH,GRAPHITE BLACK GF.,223
WHEEL ARCH MOULDING-PAINTED&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR)&ADVANCED PARK-WITH,SONIC COPPER,2YF ,4Y5
WHEEL ARCH MOULDING-PAINTED&AUTO & EASY CLOSER DOOR-WITH(HANDS FREE POWER BACK DOOR),TOWING&ADVANCED PARK-WITH,AETHER ME.,2YG ,8Z2
89347DRETAINER, ULTRASONIC SENSOR, FRONT SIDE
ADVANCED PARK-WITH,DUMMY-MAT BLACK,RH
DUMMY-MAT BLACK,LH
WHEEL ARCH MOULDING-PAINTED&ADVANCED PARK-WITH(REMOTE CONTROL FUNCTION),BLACK,085,1L1 ,1L2 ,223 ,2YF ,2YG ,2YH ,4Y5 ,8Z2,RH
WHEEL ARCH MOULDING-PAINTED&ADVANCED PARK-WITH,BLACK,085 ,1L1 ,1L2 ,223 ,2YF ,2YG,2YH ,4Y5 ,8Z2,LH
9017906274
main90179-06274
12 parts on this diagram · 1 diagram in section
