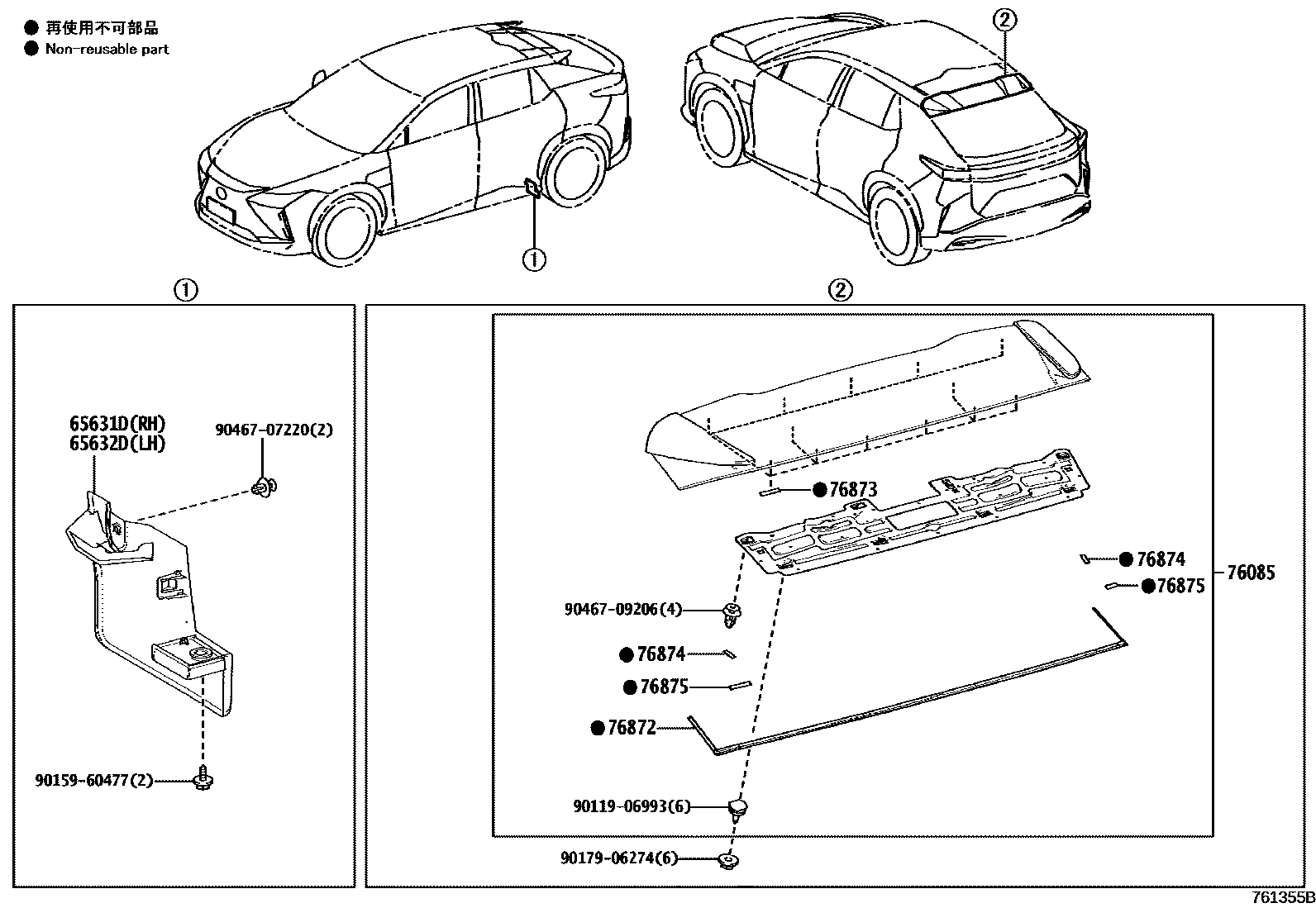

MUDGUARD & SPOILER

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

76085SPOILER SUB-ASSY, REAR

main76085-46903iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

76873PROTECTOR, REAR SPOILER, NO.2

main76875-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202404

76874PROTECTOR, REAR SPOILER, NO.3

main76874-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202404

76875PROTECTOR, REAR SPOILER, NO.4

main76875-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202404

9011906993

main90119-06993

9015960477

main90159-60477

9017906274

main90179-06274

9046707220

main90467-07220

9046709206

main90467-09206

12 parts on this diagram · 1 diagram in section
