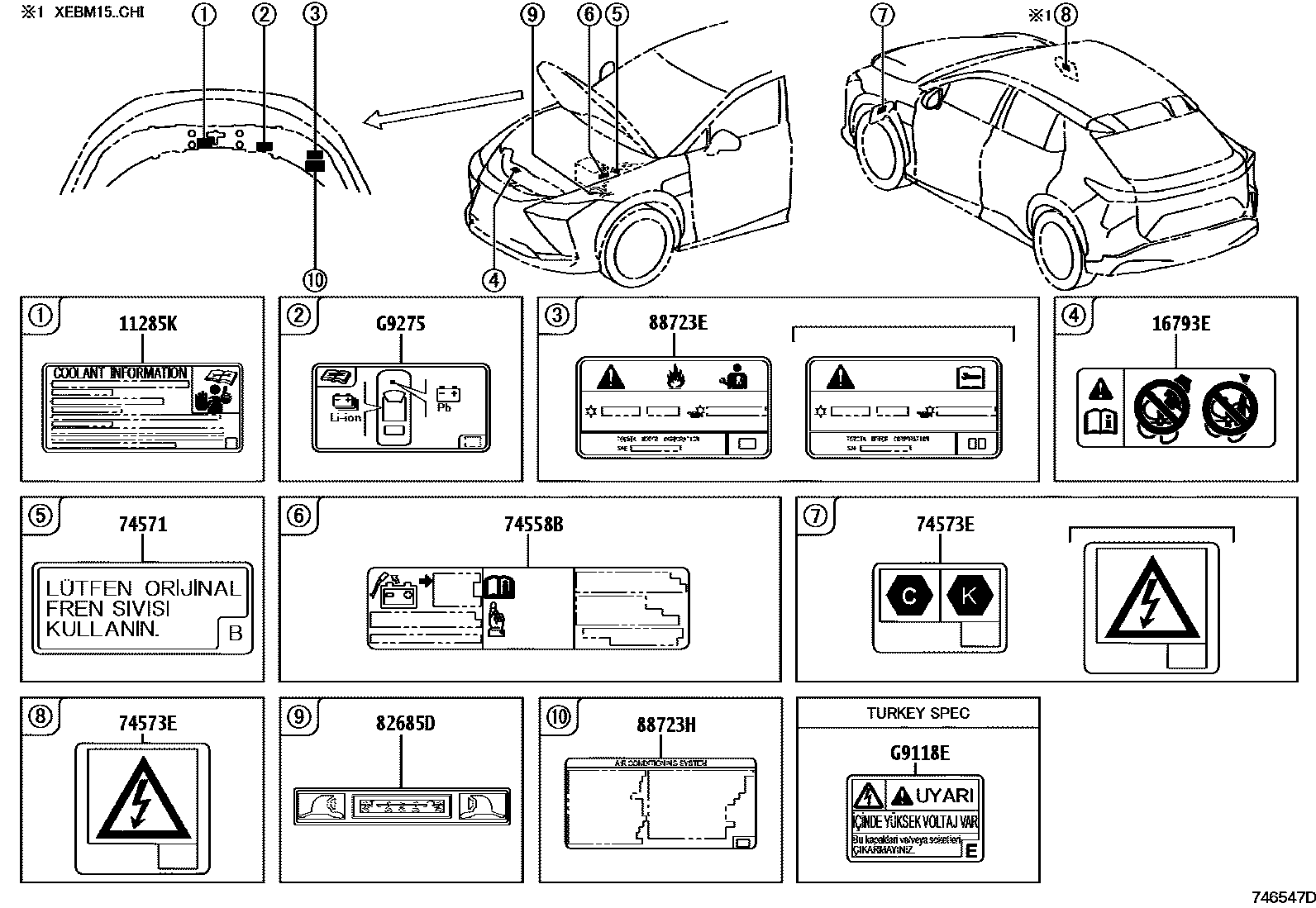

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR & INTERIOR

11285KLABEL, COOLANT SYSTEM INFORMATION

main11285-10040iEM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

16793ELABEL, COOLING FAN CAUTION

main16793-36030iEM..XEBM15..(C,L)..CHI;EM..XEBM15..ARL,EUR,GEN202301-202311

74558BLABEL, BATTERY INSPECTION INFORMATION

main74558-78010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

74571PLATE, BRAKE FLUID CAUTION

main47288-64010

74573ELABEL, ELECTRIC VEHICLE BATTERY CAUTION, NO.2

main74573-42160iXEBM10..CHI;XEBM15..(C,L)..CHI202301

main74573-46010iXEBM1#..ARL,EUR,GEN202311

DEST.PACKAGE (EXC/ERP.)-DOMINICA SPEC

main74573-46010iXEBM1#..ARL,EUR,GEN202311

DEST.PACKAGE (EXC/ERP.)-GUATEMALA SPEC

main74573-46010iXEBM1#..ARL,EUR,GEN202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main74573-46010iXEBM1#..ARL,EUR,GEN202311

PANAMA SPEC

main74573-46010iXEBM15..LHD..GEN202311

DEST.PACKAGE (EXC/ERP.)-COSTA RICA SPEC

main74573-46010iXEBM15..ARL,EUR,GEN202301-202311

TAIWAN SPEC

82685DPLATE, CAUTION

main82684-48010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

88723ELABEL, COOLER SERVICE CAUTION

main88723-42160iXEBM1#..EUR202301-202407

main88723-42210iXEBM1#..EUR202407

main88723-76090iXEBM1#..LHD..EUR202311

DESTINATION PACKAGE(ERP)-UKRAINE SPEC

main88723-76090iXEBM1#..LHD..EUR202311

DESTINATION PACKAGE(ERP)-TAIWAN SPEC

main88723-76090iXEBM15..(C,L)..(ARL,CHI,GEN)202301-202311

UKRAINE SPEC

main88723-76090iXEBM15..LHD..EUR202301-202311

TAIWAN SPEC

main88723-76090iXEBM15..B..CHI202301

88723HLABEL, COOLER SERVICE CAUTION

main88733-52160iXEBM1#..EUR202407

G9118ELABEL, ELECTRIC VEHICLE UNIT CONTROLLER CAUTION, NO.1

G9275LABEL, BATTERY CAUTION, NO.1

main288A2-10010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

10 parts on this diagram · 2 diagrams in section
