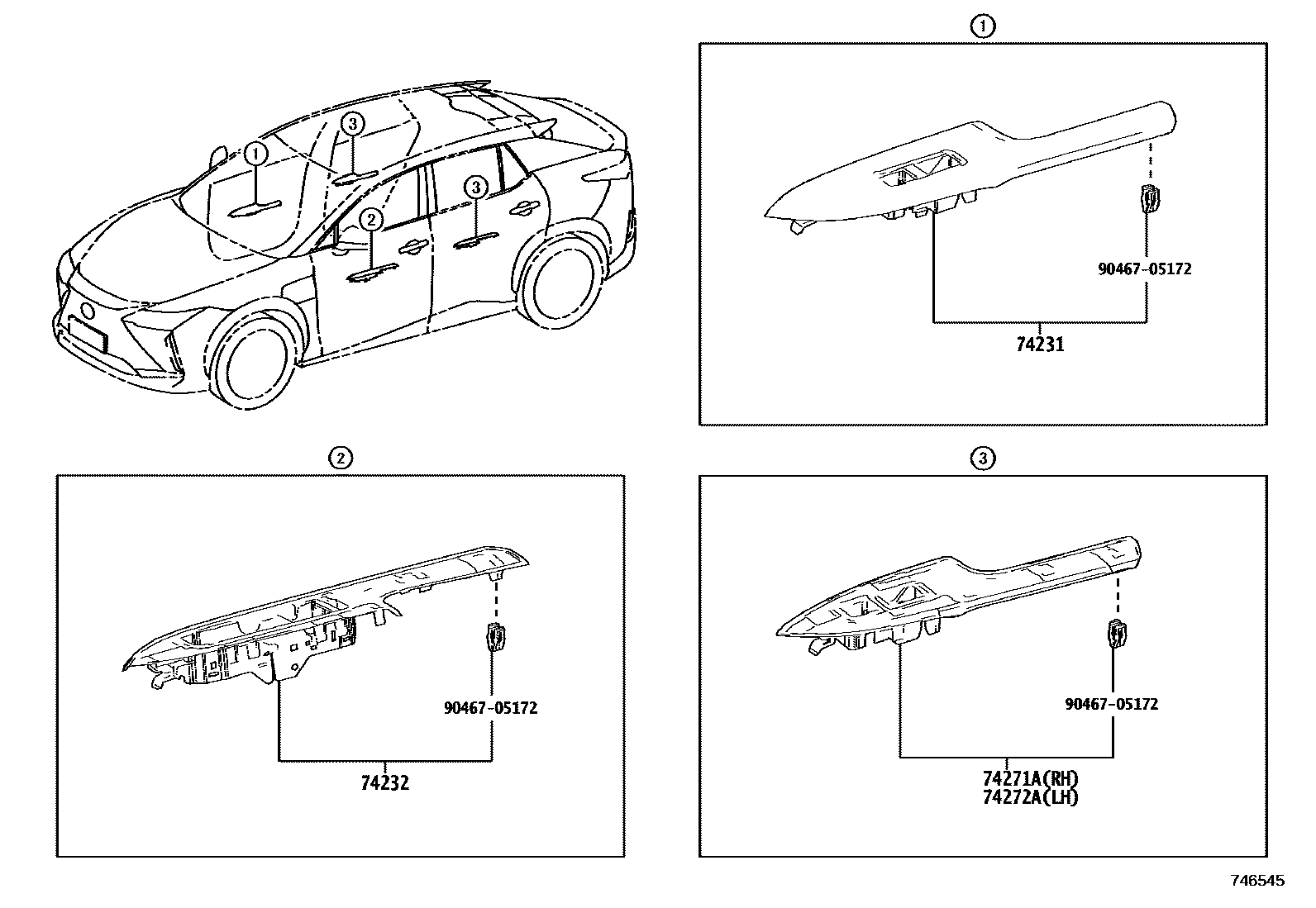

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-46100iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

main74231-46110iXEBM1#..RHD202311

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-46060iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202301-202311

main74232-46070iXEBM1#..RHD202311

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-46040iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-46040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9046705172

main90467-05172

5 parts on this diagram · 3 diagrams in section
