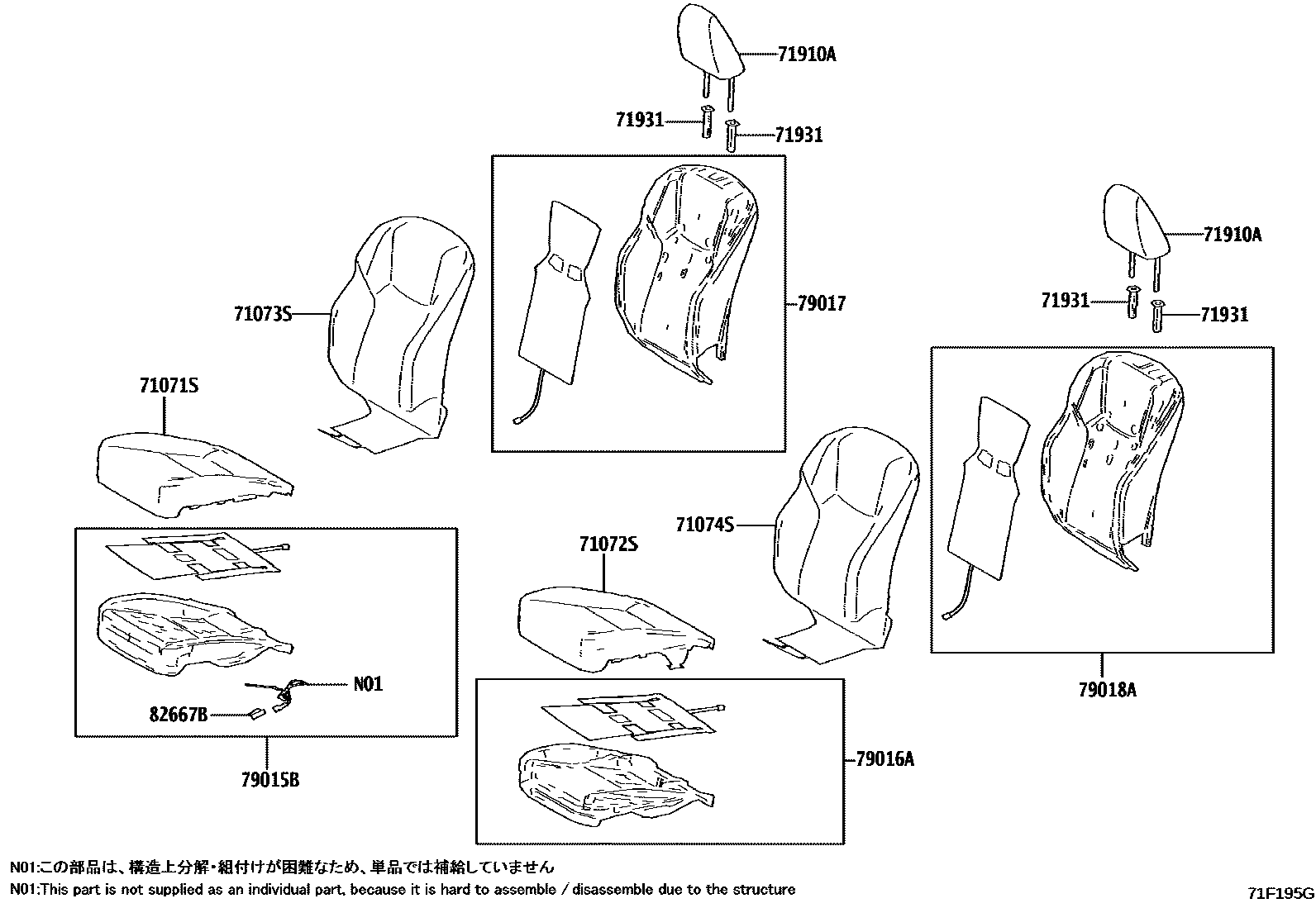

FRONT SEAT & SEAT TRACK

0001 1SEAT COVER & PAD 0002 1SEAT COVER & PAD 0003 1SEAT COVER & PAD 0004 1SEAT COVER & PAD 0005 1LH SEAT(MANUAL SEAT) 0006 1LH SEAT(POWER SEAT) 0007 1LH SEAT(MANUAL SEAT) 0008 1LH SEAT(POWER SEAT) 0009 1RH SEAT(MANUAL SEAT) 0010 1RH SEAT(POWER SEAT) 0011 1RH SEAT(MANUAL SEAT) 0012 1RH SEAT(POWER SEAT) 0013 1FITTING PARTS

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-46230-B1iXEBM1#..B..EUR202301-202410

DK.GRAY,TRIM1#

main71071-46260-B1iXEBM15..C202301-202309

DK.GRAY,TRIM1#

main71071-46260-E1iXEBM15..C202301-202309

HAZEL,TRIM4#

main71071-46260-J2iXEBM15..C202301-202309

ORAGE,TRIM8#

main71071-46261-B2iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202309-202410

DK.GRAY,TRIM1#

main71071-46261-E2iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202309-202410

HAZEL,TRIM4#

main71071-46261-J3iXEBM15..C202309-202410

ORAGE,TRIM8#

main71071-46271-B2iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202311

DK.GRAY,TRIM1#

main71071-46271-B2iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY,TRIM1#

main71071-46271-E2iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE),HAZEL,TRIM4#

main71071-46271-E2iXEBM10..LHD..GEN202311

HAZEL,TRIM4#

main71071-46271-J3iXEBM1#..C..(ARL,EUR)202311

ORAGE,TRIM8#

main71071-46271-J3iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE),ORAGE,TRIM8#

main71071-46290-B1iXEBM1#..L202301-202311

DK.GRAY,TRIM1#

main71071-46290-E1iXEBM1#..L202301-202311

HAZEL,TRIM4#

main71071-46290-J1iXEBM15..L202301-202311

ORAGE,TRIM8#

main71071-46310-B0iXEBM10..B..CHI202311

DK.GRAY,TRIM1#

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-46280-B1iXEBM15..B202301-202410

DK.GRAY,TRIM1#

main71072-46310-B1iXEBM15..C202301-202309

DK.GRAY,TRIM1#

main71072-46310-E1iXEBM15..C202301-202309

HAZEL,TRIM4#

main71072-46310-J2iXEBM15..C202301-202309

ORAGE,TRIM8#

main71072-46311-B2iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202309-202410

DK.GRAY,TRIM1#

main71072-46311-E2iXEBM1#..C..(ARL,EUR)202309-202410

HAZEL,TRIM4#

main71072-46311-J3iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202309-202410

ORAGE,TRIM8#

main71072-46321-B2iXEBM1#..C..(ARL,EUR)202311

DK.GRAY,TRIM1#

main71072-46321-B2iXEBM1#..C..(ARL,EUR)202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE),DK.GRAY,TRIM1#

main71072-46321-E2iXEBM1#..C..(ARL,EUR)202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE),HAZEL,TRIM4#

main71072-46321-E2iXEBM10..LHD..GEN202311

HAZEL,TRIM4#

main71072-46321-J3iXEBM1#..C..(ARL,EUR)202311

ORAGE,TRIM8#

main71072-46321-J3iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE),ORAGE,TRIM8#

main71072-46340-B1iXEBM1#..L202301-202311

DK.GRAY,TRIM1#

main71072-46340-E1iXEBM1#..L202301-202311

HAZEL,TRIM4#

main71072-46340-J1iXEBM15..L202301-202311

ORAGE,TRIM8#

main71072-46360-B0iXEBM10..B..CHI202311

DK.GRAY,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-46320-B1iXEBM10..LHD..B;XEBM15..LHD..B..EUR202301

DK.GRAY,TRIM1#

main71073-46350-B2iXEBM1#..RHD..B202301-202311

DK.GRAY,TRIM1#

main71073-46380-B1iXEBM15..LHD..C..EUR;XEBM15..C..(CHI,GEN)202301-202311

DK.GRAY,TRIM1#

main71073-46380-E1iXEBM15..LHD..C..EUR;XEBM15..C..(CHI,GEN)202301-202311

HAZEL,TRIM4#

main71073-46380-J2iXEBM15..LHD..C..EUR;XEBM15..C..(CHI,GEN)202301-202311

ORAGE,TRIM8#

main71073-46400-B2iXEBM15..RHD..C..(ARL,EUR)202301-202311

DK.GRAY,TRIM1#

main71073-46400-E2iXEBM15..RHD..C..(ARL,EUR)202301-202311

HAZEL,TRIM4#

main71073-46400-J3iXEBM15..RHD..C..(ARL,EUR)202301-202311

ORAGE,TRIM8#

main71073-46410-B1iXEBM1#..LHD..L..EUR;XEBM1#..L..(CHI,GEN)202301-202311

DK.GRAY,TRIM1#

main71073-46410-E1iXEBM1#..LHD..L..EUR;XEBM1#..L..(CHI,GEN)202301-202311

HAZEL,TRIM4#

main71073-46410-J1iXEBM1#..LHD..L..EUR;XEBM1#..L..(CHI,GEN)202301-202311

ORAGE,TRIM8#

main71073-46420-B2iXEBM15..RHD..L..(ARL,EUR)202301-202311

DK.GRAY,TRIM1#

main71073-46420-E2iXEBM1#..RHD..L..(ARL,EUR)202301-202311

HAZEL,TRIM4#

main71073-46420-J2iXEBM15..RHD..L..(ARL,EUR)202301-202311

ORAGE,TRIM8#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-46210-B1iXEBM15..RHD..B202301

DK.GRAY,TRIM1#

main71074-46220-B2iXEBM1#..LHD..B..EUR202301-202311

DK.GRAY,TRIM1#

main71074-46240-B1iXEBM15..C..CHI202301-202311

DK.GRAY,TRIM1#

main71074-46240-E1iXEBM15..RHD..C202301-202311

HAZEL,TRIM4#

main71074-46240-J2iXEBM15..C..CHI202301-202311

ORAGE,TRIM8#

main71074-46260-B2iXEBM1#..LHD..C..EUR202301-202311

DK.GRAY,TRIM1#

main71074-46260-E2iXEBM1#..LHD..C..EUR202301-202311

HAZEL,TRIM4#

main71074-46260-J3iXEBM1#..LHD..C..EUR202301-202311

ORAGE,TRIM8#

main71074-46270-B1iXEBM1#..RHD..L;XEBM15..LHD..L..(CHI,GEN)202301-202311

DK.GRAY,TRIM1#

main71074-46270-E1iXEBM1#..RHD..L;XEBM15..LHD..L..(CHI,GEN)202301-202311

HAZEL,TRIM4#

main71074-46270-J1iXEBM1#..RHD..L;XEBM15..LHD..L..(CHI,GEN)202301-202311

ORAGE,TRIM8#

main71074-46280-B2iXEBM1#..LHD..L..EUR202301-202311

DK.GRAY,TRIM1#

main71074-46280-E2iXEBM1#..LHD..L..EUR202301-202311

HAZEL,TRIM4#

main71074-46280-J2iXEBM1#..LHD..L..EUR202301-202311

ORAGE,TRIM8#

main71074-46290-B0iXEBM15..B..CHI202301-202309

DK.GRAY,TRIM1#

main71074-46300-B0iXEBM15..C..CHI202301-202309

DK.GRAY,TRIM1#

main71074-46300-E0iXEBM15..C..CHI202301-202309

HAZEL,TRIM4#

main71074-46300-J0iXEBM15..C..CHI202301-202309

ORAGE,TRIM8#

main71074-46310-B0iXEBM15..L..CHI202301-202309

DK.GRAY,TRIM1#

main71074-46310-E0iXEBM15..L..CHI202301-202309

HAZEL,TRIM4#

main71074-46310-J0iXEBM15..L..CHI202301-202309

ORAGE,TRIM8#

71910AHEADREST ASSY, FRONT SEAT

main71910-46180-B0iXEBM15..B..EUR202301-202311

DK.GRAY,TRIM1#

main71910-46200-B0iXEBM1#..C..(ARL,EUR,GEN)202301-202311

DK.GRAY,TRIM1#

main71910-46200-E0iXEBM1#..C..(ARL,EUR,GEN)202301-202311

HAZEL,TRIM4#

main71910-46200-J0iXEBM1#..C..(ARL,EUR,GEN)202301-202311

ORAGE,TRIM8#

main71910-46210-B0iXEBM1#..L..(ARL,EUR,GEN)202301-202311

DK.GRAY,TRIM1#

main71910-46210-E0iXEBM15..L..(ARL,EUR,GEN)202301-202311

HAZEL,TRIM4#

main71910-46210-J0iXEBM15..L..(ARL,EUR,GEN)202301-202311

ORAGE,TRIM8#

main71910-46240-B0iXEBM10..B..CHI202301

DK.GRAY,TRIM1#

main71910-46250-B0iXEBM15..C..CHI202301-202311

DK.GRAY,TRIM1#

main71910-46250-E0iXEBM1#..C..CHI202301-202311

HAZEL,TRIM4#

main71910-46250-J0iXEBM1#..C..CHI202301-202311

ORAGE,TRIM8#

main71910-46260-B0iXEBM15..L..CHI202301-202311

DK.GRAY,TRIM1#

main71910-46260-E0iXEBM15..L..CHI202301-202311

HAZEL,TRIM4#

main71910-46260-J0iXEBM15..L..CHI202301-202311

ORAGE,TRIM8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-47050-C5iXEBM10..B;XEBM15..B..EUR202301-202311

W(LOCK),BLACK,TRIM1#,4#,8#

main71930-47050-C5iXEBM15..B202301

W(LOCK),BLACK,TRIM1#

main71931-47030-C4iXEBM1#..C,L202301-202311

W/O(LOCK),BLACK,TRIM1#,4#,8#

main71931-47030-C4iXEBM1#..C,L202301

W/O(LOCK),BLACK,TRIM1#

79015BPAD SUB-ASSY, NO.1 SEAT CUSHION, RH

main79015-46010iXEBM1#..RHD..B202301-202410

main79015-46020iXEBM15..LHD..B202301-202410

main79015-46030iXEBM15..RHD..C202301-202410

main79015-46040iXEBM15..LHD..C202301-202410

main79015-46050iXEBM15..RHD..L¥17,000202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79015-46050iXEBM1#..RHD..L¥17,000202311

main79015-46050iXEBM1#..RHD..C..GEN¥17,000202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE)

main79015-46060iXEBM15..LHD..L202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79015-46060iXEBM1#..LHD..L;XEBM10..LHD..GEN202311

main79015-46060iXEBM1#..C..CHI202301-202311

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE)

79016APAD SUB-ASSY, NO.1 SEAT CUSHION, LH

main79016-46010iXEBM15..LHD..B202301-202410

main79016-46020iXEBM1#..RHD..B202301-202410

main79016-46030iXEBM10..B..CHI;XEBM1#..LHD..C..EUR202301-202410

main79016-46040iXEBM1#..RHD..C..GEN202301-202410

main79016-46050iXEBM15..C..CHI202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79016-46050iXEBM1#..LHD..L;XEBM10..LHD..GEN202311

main79016-46050iXEBM1#..C..CHI202301-202311

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE)

main79016-46060iXEBM1#..RHD..C..GEN¥17,000202410

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE)

main79016-46060iXEBM15..RHD..L¥17,000202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79016-46060iXEBM1#..RHD..L¥17,000202311

79017PAD SUB-ASSY, NO.1 SEATBACK, RH

main79017-46010iXEBM15..LHD..(B,C)..EUR;XEBM15..(B,C)..(CHI,GEN)202301-202410

main79017-46020iXEBM15..RHD..(B,C)..(ARL,EUR)202301-202311

main79017-46030iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)¥17,000202301-202311

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE)

main79017-46030iXEBM15..LHD..L..EUR;XEBM15..L..(CHI,GEN)¥17,000202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79017-46030iXEBM10..LHD..GEN;XEBM1#..LHD..L..EUR;XEBM1#..L..(CHI,GEN)¥17,000202311

main79017-46040iXEBM15..RHD..L..(ARL,EUR)202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79017-46040iXEBM1#..RHD..L..(ARL,EUR)202311

79018APAD SUB-ASSY, NO.1 SEATBACK, LH

main79018-46010iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)202301-202410

main79018-46020iXEBM1#..LHD..(B,C)..EUR202301-202311

main79018-46030iXEBM10..C..CHI;XEBM10..RHD..C..GEN;XEBM15..C..(CHI,GEN)¥17,000202301-202311

FRONT SEAT SLIDE-*PSE & WITH(SEAT MEMORY = DRIVER SIDE)

main79018-46030iXEBM10..LHD..GEN;XEBM1#..LHD..L..EUR;XEBM1#..L..(CHI,GEN)¥17,000202311

main79018-46030iXEBM15..LHD..L..EUR;XEBM15..L..(CHI,GEN)¥17,000202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

main79018-46040iXEBM1#..RHD..L..(ARL,EUR)202311

main79018-46040iXEBM15..RHD..C..(ARL,EUR)202301-202311

FRONT SEAT SLIDE-*PSE &W(SEAT MEMORY & SLIDE SENSOR=*DRS)

82667BHOLDER, CONNECTOR

main82666-47630iXEBM15..B,C;XEBM15..LHD..L..EUR;XEBM15..L..(ARL,CHI,GEN)¥170202301

11 parts on this diagram · 13 diagrams in section
