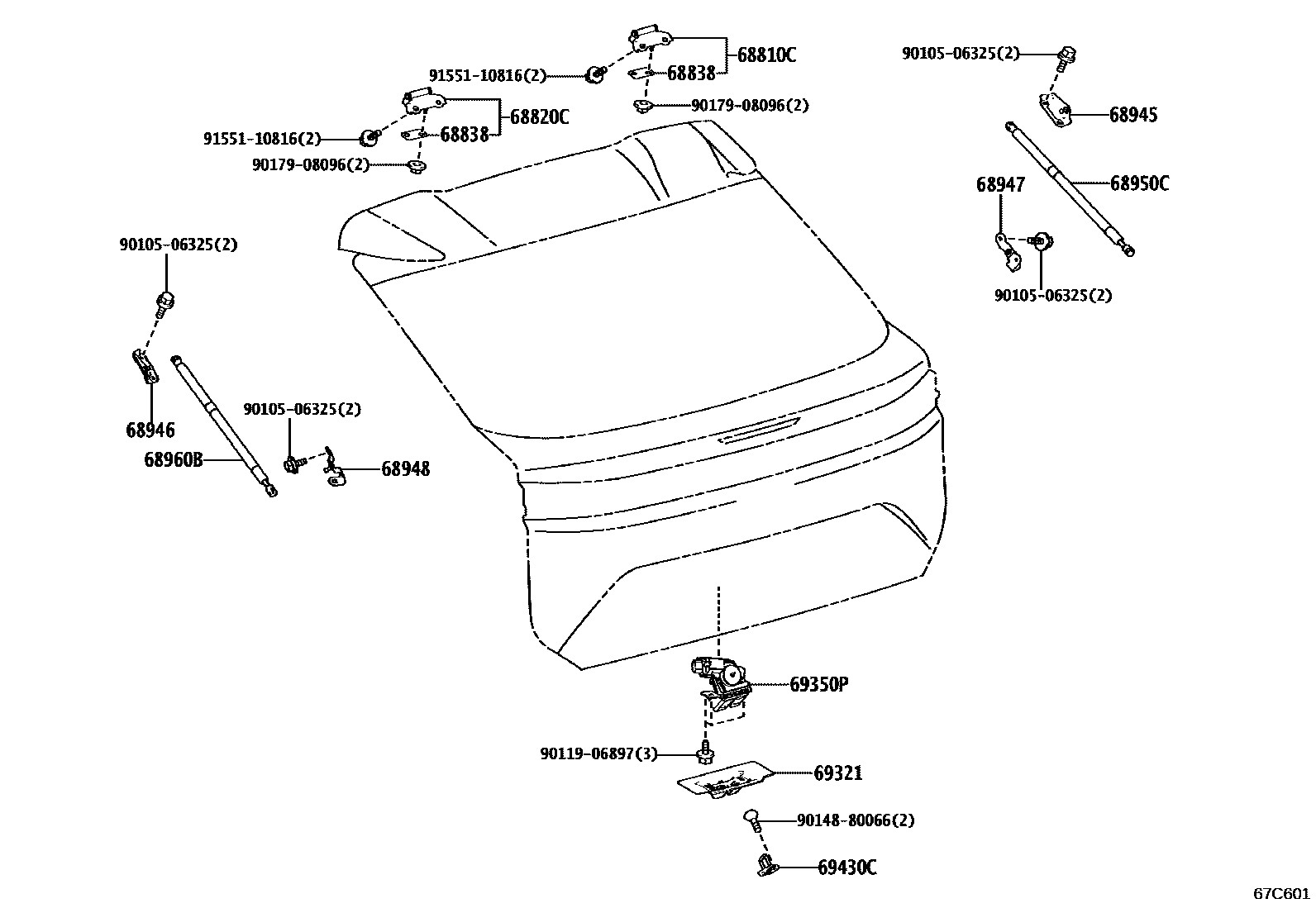

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

68810CHINGE ASSY, BACK DOOR, RH

main68810-48220iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

68820CHINGE ASSY, BACK DOOR, LH

main68810-48220iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

68838PAD, BACK DOOR HINGE, NO.1

main68838-48140×2iXEBM15..B..CHI202301

T=1.0

main68838-48150×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

T=1.5

main68838-48160×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-46010iXEBM15..B..CHI202301

68950CSTAY ASSY, BACK DOOR, RH

main68950-0WL50iXEBM1#..B..EUR202311

main68950-0WM50iXEBM10..B..CHI202311

AUTO & EASY CLOSER DOOR-WITHOUT

68960BSTAY ASSY, BACK DOOR, LH

main68960-0WL30iXEBM1#..B..EUR202311

main68960-0WM30iXEBM10..B..CHI202311

AUTO & EASY CLOSER DOOR-WITHOUT

69321COVER, BACK DOOR LOCK

main69321-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-42090supersedes 69350-48100iXEBM10..B..CHI202311

AUTO & EASY CLOSER DOOR-WITHOUT

main69350-48100iXEBM1#..C,L;XEBM10..B..CHI202311

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-48030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9010506325

main90105-06325

9011906897

main90119-06897

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

17 parts on this diagram · 2 diagrams in section
