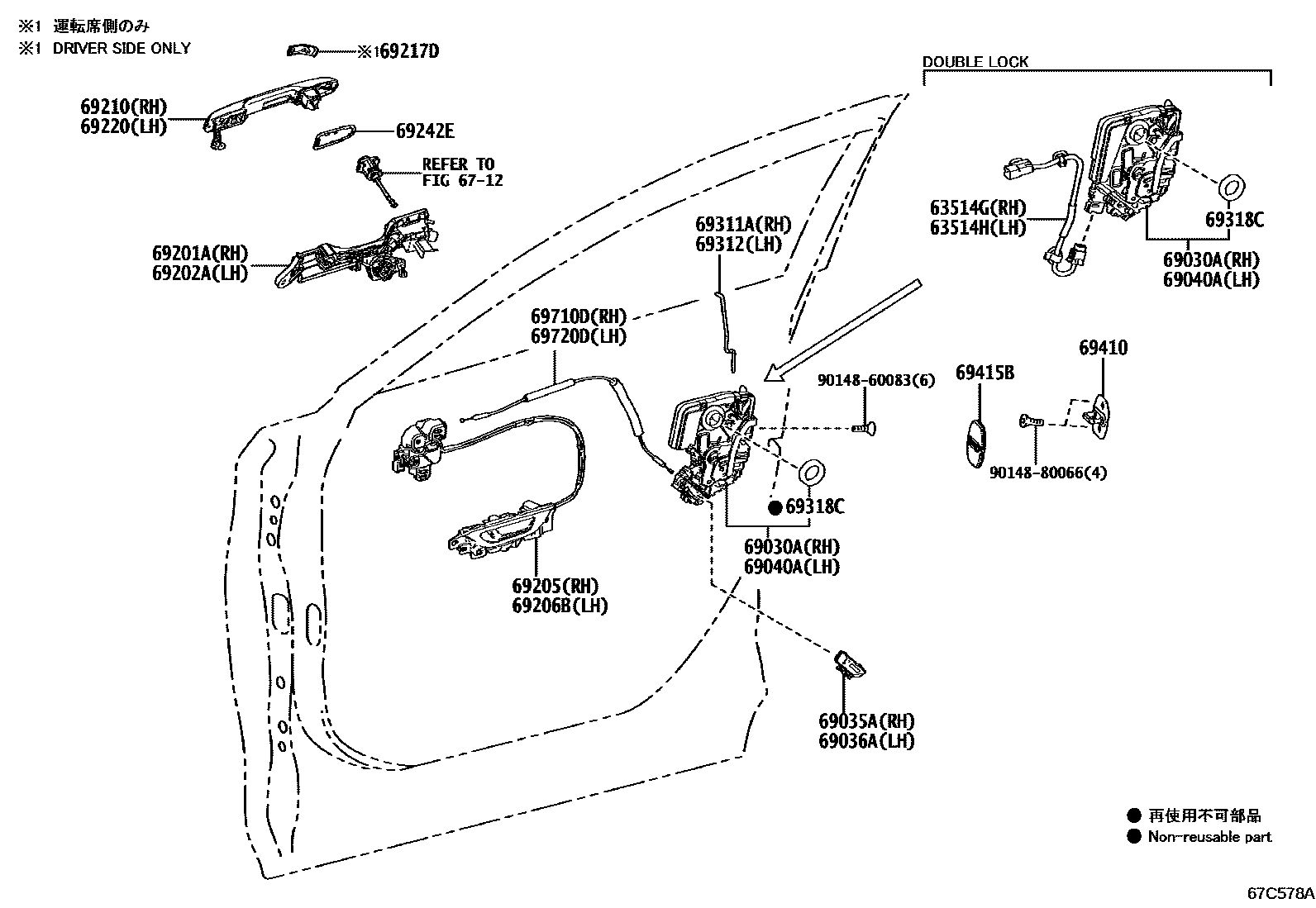

FRONT DOOR LOCK & HANDLE

63514GWIRE, CONNECTOR, RH

main63514-46010iXEBM1#..EUR202311

63514HWIRE, CONNECTOR, LH

main63514-46020iXEBM1#..EUR202311

6712

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-78100iXEBM1#..RHD..(ARL,GEN)202311

main69030-78120iXEBM15..B..CHI202301

main69030-78130iXEBM15..RHD..EUR202301-202311

main69030-78140iXEBM15..LHD..EUR202301-202311

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-78010iXEBM15..B..CHI202301

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-78010iXEBM15..B..CHI202301

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-78080iXEBM1#..RHD..(ARL,GEN)202311

main69040-78100iXEBM15..LHD..(C,L)..(CHI,GEN)202301-202311

main69040-78110iXEBM15..RHD..EUR202301-202311

main69040-78120iXEBM15..LHD..EUR202301-202311

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-46010iXEBM15..RHD..(EUR,GEN)202301-202311

main69201-78030supersedes 69201-46010iXEBM1#..RHD..(ARL,GEN)202311

CYPRUS SPEC

main69201-78050iXEBM15..B..CHI202301

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-46010iXEBM15..LHD..(EUR,GEN)202301-202311

main69202-78030iXEBM1#..RHD202311

main69202-78050supersedes 69202-78050iXEBM10..CHI;XEBM15..(C,L)..CHI202311

CROATIA SPEC

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69070-46030iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69080-46030iXEBM15..B..CHI202301

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-78050-A1iXEBM15..RHD..(ARL,GEN)202301-202303

SONIC QUARTZ,085

main69210-78050-B1iXEBM15..RHD..(ARL,GEN)202301-202303

SONIC CHROME,1L1 ,2YH

main69210-78050-B2iXEBM15..RHD..(ARL,GEN)202301-202303

SONIC IRIDIUM,1L2

main69210-78050-C1iXEBM15..RHD..(ARL,GEN)202301-202303

GRAPHITE BLACK GF.,223

main69210-78050-E1iXEBM15..RHD202301-202302

SONIC COPPER,2YF ,4Y5

main69210-78050-J3iXEBM15..RHD202301-202302

AETHER ME.,2YG ,8Z2

main69210-78051-A1iXEBM15..RHD202303-202304

SONIC QUARTZ,085

main69210-78051-B1iXEBM15..RHD202303-202304

SONIC CHROME,1L1 ,2YH

main69210-78051-B2iXEBM15..RHD202303-202304

SONIC IRIDIUM,1L2

main69210-78051-C1iXEBM15..RHD202303-202304

GRAPHITE BLACK GF.,223

main69210-78051-E1iXEBM15..RHD202303-202304

SONIC COPPER,2YF ,4Y5

main69210-78051-J3iXEBM15..RHD202303-202304

AETHER ME.,2YG ,8Z2

main69210-78052-A1iXEBM1#..RHD202311

SONIC QUARTZ,085

main69210-78052-B1iXEBM1#..RHD202311

SONIC CHROME,1L1 ,2YH

main69210-78052-B2iXEBM15..RHD202304-202311

SONIC IRIDIUM,1L2

main69210-78052-C1iXEBM15..RHD202304-202311

GRAPHITE BLACK GF.,223

main69210-78052-E1iXEBM15..RHD202304-202311

SONIC COPPER,2YF ,4Y5

main69210-78052-J3iXEBM15..RHD202304-202311

AETHER ME.,2YG ,8Z2

main69210-78070-A1iXEBM15..LHD..GEN202301-202303

SONIC QUARTZ,085

main69210-78070-B1iXEBM15..LHD202301-202302

SONIC CHROME,1L1 ,2YH

main69210-78070-B3iXEBM15..LHD..GEN202301-202303

SONIC IRIDIUM,1L2

main69210-78070-C1iXEBM15..LHD..GEN202301-202303

GRAPHITE BLACK GF.,223

main69210-78070-E1iXEBM15..LHD202301-202302

SONIC COPPER,2YF ,4Y5

main69210-78070-J3iXEBM15..LHD..GEN202301-202303

AETHER ME.,2YG ,8Z2

main69210-78071-A1iXEBM15..LHD202303-202304

SONIC QUARTZ,085

main69210-78071-B1iXEBM15..LHD202303-202304

SONIC CHROME,1L1 ,2YH

main69210-78071-B3iXEBM15..LHD202303-202304

SONIC IRIDIUM,1L2

main69210-78071-C1iXEBM15..LHD202303-202304

GRAPHITE BLACK GF.,223

main69210-78071-E1iXEBM15..LHD202303-202304

SONIC COPPER,2YF ,4Y5

main69210-78071-J3iXEBM15..LHD202303-202304

AETHER ME.,2YG ,8Z2

main69210-78072-A1iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

SONIC QUARTZ,085

main69210-78072-B1iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

SONIC CHROME,1L1 ,2YH

main69210-78072-B3iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

SONIC IRIDIUM,1L2

main69210-78072-C1iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202304-202311

GRAPHITE BLACK GF.,223

main69210-78072-E1iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

SONIC COPPER,2YF ,4Y5

main69210-78072-J3iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202304-202311

AETHER ME.,2YG ,8Z2

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-78020-A1iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

SONIC QUARTZ,085

main69217-78020-B1iXEBM15..B..CHI202301

SONIC CHROME,1L1 ,2YH

main69217-78020-B3iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

SONIC IRIDIUM,1L2

main69217-78020-C1iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

GRAPHITE BLACK GF.,223

main69217-78020-E1iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

SONIC COPPER,2YF ,4Y5

main69217-78020-J3iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

AETHER ME.,2YG ,8Z2

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-78050-A1iXEBM15..RHD..(ARL,GEN)202301-202303

SONIC QUARTZ,085

main69220-78050-B1iXEBM15..RHD202301-202302

SONIC CHROME,1L1 ,2YH

main69220-78050-B2iXEBM15..RHD..(ARL,GEN)202301-202303

SONIC IRIDIUM,1L2

main69220-78050-C1iXEBM15..RHD202301-202302

GRAPHITE BLACK GF.,223

main69220-78050-E1iXEBM15..RHD202301-202302

SONIC COPPER,2YF ,4Y5

main69220-78050-J3iXEBM15..RHD202301-202302

AETHER ME.,2YG ,8Z2

main69220-78051-A1iXEBM15..RHD202303-202304

SONIC QUARTZ,085

main69220-78051-B1iXEBM15..RHD202303-202304

SONIC CHROME,1L1 ,2YH

main69220-78051-B2iXEBM15..RHD202303-202304

SONIC IRIDIUM,1L2

main69220-78051-C1iXEBM15..RHD202303-202304

GRAPHITE BLACK GF.,223

main69220-78051-E1iXEBM15..RHD202303-202304

SONIC COPPER,2YF ,4Y5

main69220-78051-J3iXEBM15..RHD202303-202304

AETHER ME.,2YG ,8Z2

main69220-78052-A1iXEBM1#..RHD202311

SONIC QUARTZ,085

main69220-78052-B1iXEBM15..RHD202304-202311

SONIC CHROME,1L1 ,2YH

main69220-78052-B2iXEBM1#..RHD202311

SONIC IRIDIUM,1L2

main69220-78052-C1iXEBM15..RHD202304-202311

GRAPHITE BLACK GF.,223

main69220-78052-E1iXEBM1#..RHD202311

SONIC COPPER,2YF ,4Y5

main69220-78052-J3iXEBM1#..RHD202311

AETHER ME.,2YG ,8Z2

main69220-78070-A1iXEBM15..LHD202301-202302

SONIC QUARTZ,085

main69220-78070-B1iXEBM15..LHD202301-202302

SONIC CHROME,1L1 ,2YH

main69220-78070-B3iXEBM15..LHD..GEN202301-202303

SONIC IRIDIUM,1L2

main69220-78070-C1iXEBM15..LHD202301-202302

GRAPHITE BLACK GF.,223

main69220-78070-E1iXEBM15..LHD..GEN202301-202303

SONIC COPPER,2YF ,4Y5

main69220-78070-J3iXEBM15..LHD..GEN202301-202303

AETHER ME.,2YG ,8Z2

main69220-78071-A1iXEBM15..LHD202303-202304

SONIC QUARTZ,085

main69220-78071-B1iXEBM15..LHD202303-202304

SONIC CHROME,1L1 ,2YH

main69220-78071-B3iXEBM15..LHD202303-202304

SONIC IRIDIUM,1L2

main69220-78071-C1iXEBM15..LHD202303-202304

GRAPHITE BLACK GF.,223

main69220-78071-E1iXEBM15..LHD202303-202304

SONIC COPPER,2YF ,4Y5

main69220-78071-J3iXEBM15..LHD202303-202304

AETHER ME.,2YG ,8Z2

main69220-78072-A1iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202304-202311

SONIC QUARTZ,085

main69220-78072-B1iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202304-202311

SONIC CHROME,1L1 ,2YH

main69220-78072-B3iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202304-202311

SONIC IRIDIUM,1L2

main69220-78072-C1iXEBM15..B..CHI202304

GRAPHITE BLACK GF.,223

main69220-78072-E1iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

SONIC COPPER,2YF ,4Y5

main69220-78072-J3iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

AETHER ME.,2YG ,8Z2

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-78030×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-76011×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9014860083

main90148-60083

9014880066

main90148-80066

24 parts on this diagram · 1 diagram in section
