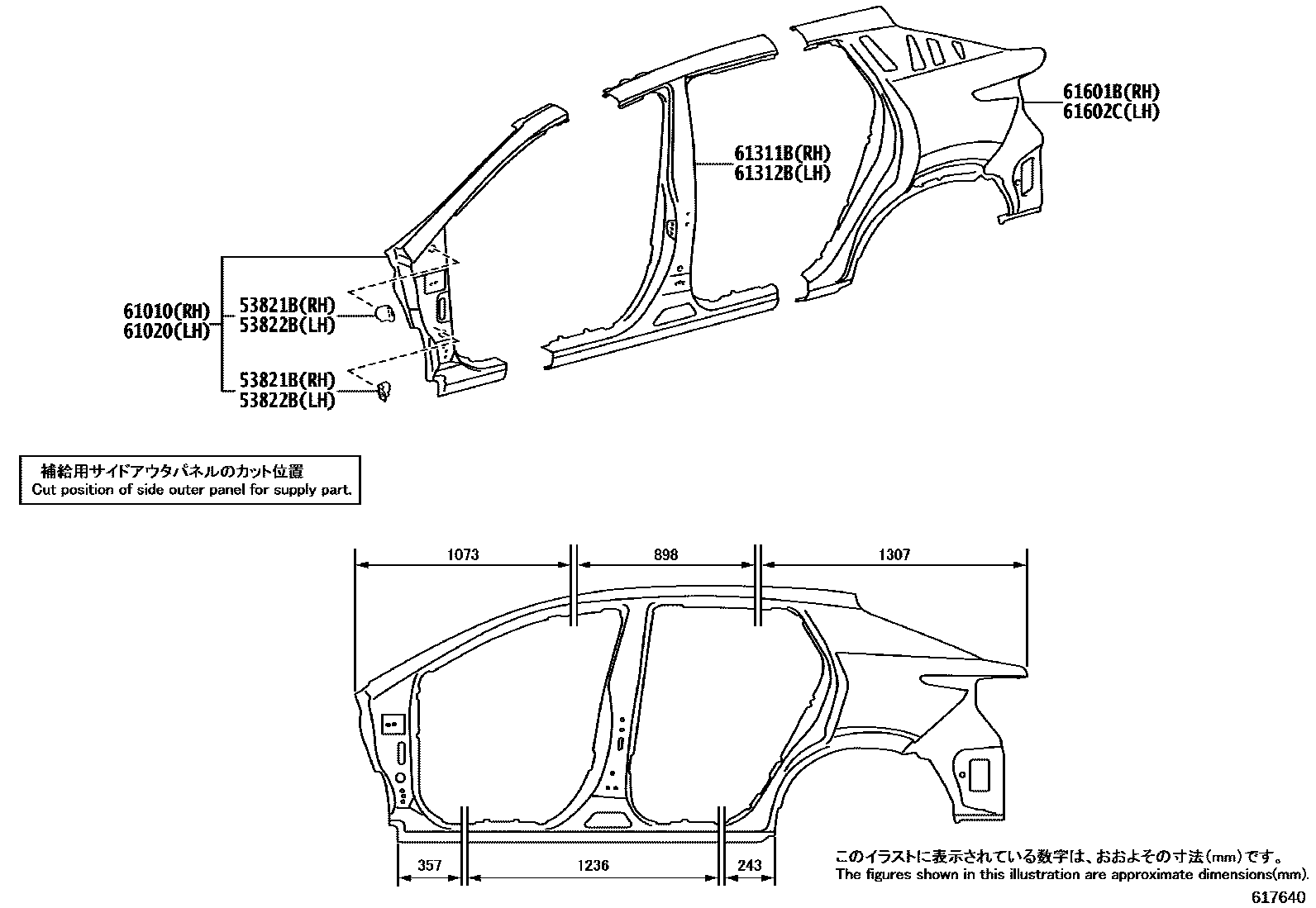

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

53821BBRACKET, FRONT FENDER, REAR RH

main53821-16010×2iXEBM15..B..CHI202301

53822BBRACKET, FRONT FENDER, REAR LH

main53821-16010×2iXEBM15..B..CHI202301

61010MEMBER ASSY, SIDE, RH

main61010-46010iXEBM15..(C,L)..(ARL,EUR,GEN)202301-202311

MOON ROOF-DIMMING PANORAMA ROOF

main61010-46020iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202311

61020MEMBER ASSY, SIDE, LH

main61020-46010iXEBM1#..L..(ARL,EUR,GEN)202311

ROOF TYPE-PANORAMA ROOF

main61020-46020iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202311

61311BPILLAR, CENTER BODY, OUTER RH

main61311-46020iXEBM1#..L..(ARL,EUR,GEN)202311

ROOF TYPE-PANORAMA ROOF

main61311-46030iXEBM15..B..CHI202301

61312BPILLAR, CENTER BODY, OUTER LH

main61312-46020iXEBM1#..L..(ARL,EUR,GEN)202311

ROOF TYPE-PANORAMA ROOF

main61312-46030iXEBM15..B..CHI202301

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-46040iXEBM1#..L..(ARL,EUR,GEN)202311

ROOF TYPE-PANORAMA ROOF

main61601-46060iXEBM15..ARL,EUR,GEN202301-202311

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-46060iXEBM1#..L..(ARL,EUR,GEN)202311

ROOF TYPE-PANORAMA ROOF

main61602-46080iXEBM10..B..CHI;XEBM1#..ARL,EUR,GEN202311

8 parts on this diagram · 3 diagrams in section
