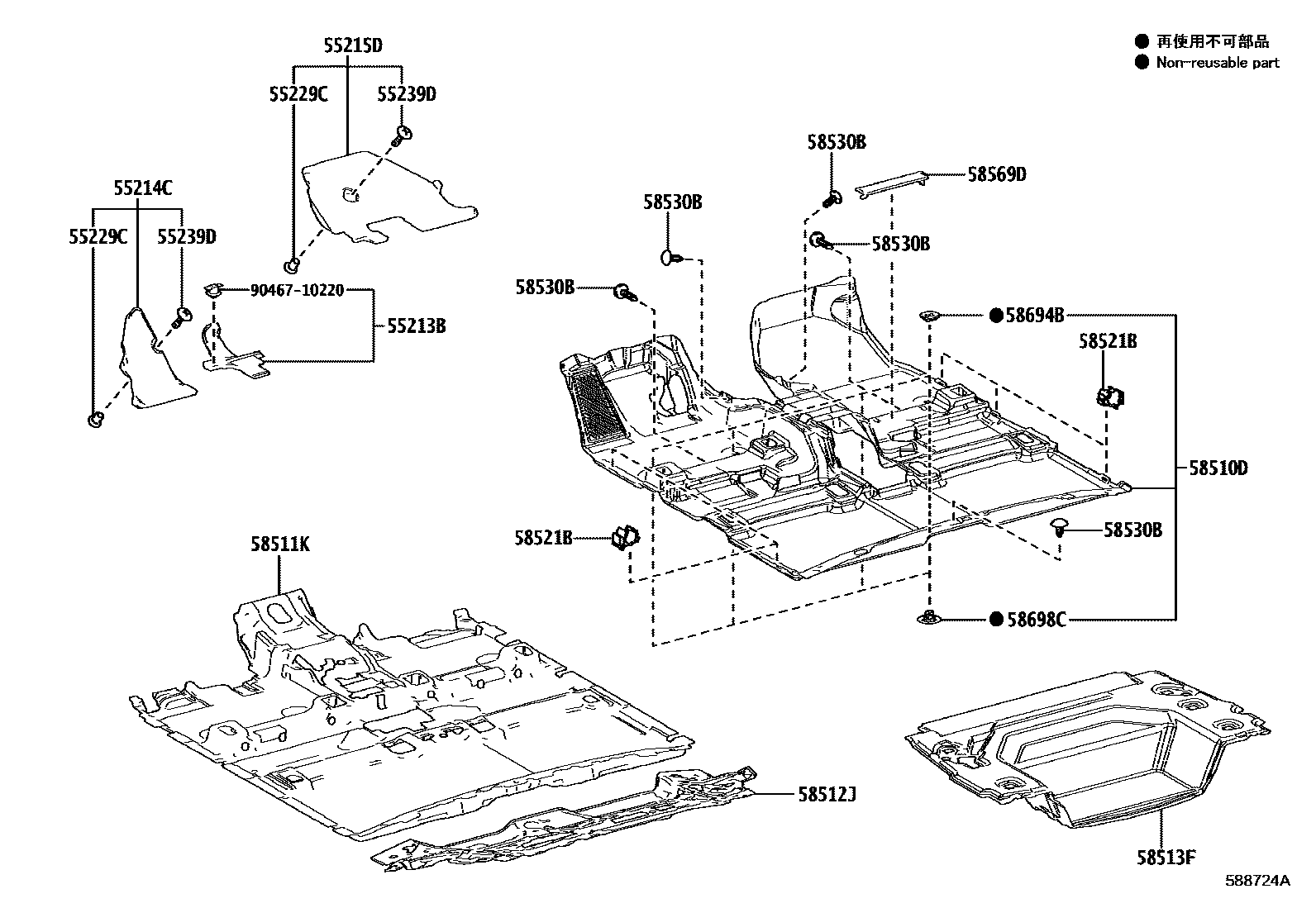

MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-46030iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202301-202311

main55213-46040iXEBM1#..RHD202311

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-46020iXEBM15..B..CHI202301

main55214-46030iXEBM15..RHD202301-202311

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-46020iXEBM15..B..CHI202301

main55215-46030iXEBM15..RHD202301-202311

55229CPLATE, DASH PANEL INSULATOR, NO.4

main55229-48020×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

55239DPLATE, DASH PANEL INSULATOR, NO.3

main55239-48020×2iXEBM15..B..CHI202301

58510DCARPET ASSY, FLOOR, FRONT

main58510-46251-C0iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202301-202311

BLACK,TRIM1#

main58510-46251-E0iXEBM1#..LHD..(C,L)202311

HAZEL,TRIM4#

main58510-46251-J0iXEBM1#..LHD..(C,L)202311

ORAGE,TRIM8#

main58510-46261-C0iXEBM15..RHD202301-202311

BLACK,TRIM1#

main58510-46261-E0iXEBM15..RHD..(C,L)202301-202311

HAZEL,TRIM4#

main58510-46261-J0iXEBM1#..RHD..(C,L)202311

ORAGE,TRIM8#

58511KMAT, FLOOR, NO.1

main58511-42080iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

58512JMAT, FLOOR, NO.2

main58512-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

58513FMAT, FLOOR, NO.3

main58513-46010iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

58521BHOOK, FLOOR CARPET

main58521-33060×6iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23×5iXEBM15..B..CHI202301

BLACK,TRIM1#

main90467-07049-J5×5iXEBM1#..C,L202311

ORAGE,TRIM8#

main90467-07049-L7×5iXEBM1#..C,L202311

HAZEL,TRIM4#

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-42050-C0iXEBM10..B;XEBM15..B..EUR202311

BLACK,TRIM1#

58694BPLATE, MAT SET, UPPER

main58694-33010×4iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

58698CPLATE, MAT SET, LOWER

main58698-33010×4iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9046710220

main90467-10220

15 parts on this diagram · 2 diagrams in section
