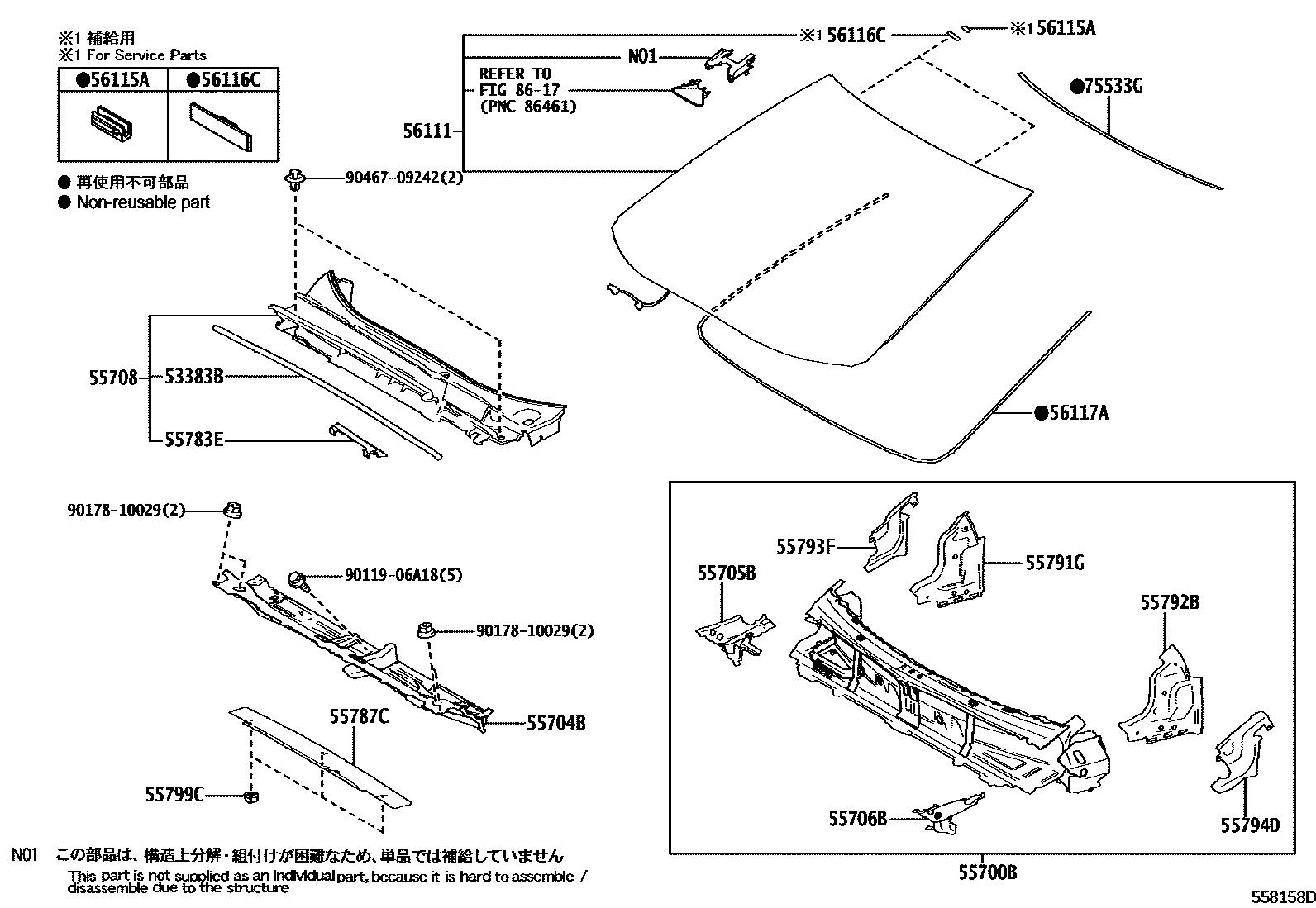

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

55700BCOWL ASSY

main55700-46030iXEBM15..B..CHI202301

main55700-46040iXEBM1#..RHD202311

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-46020iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

main55704-46030iXEBM15..RHD202301-202311

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-46030iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-46030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-46030iXEBM10..LHD;XEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202311

main55708-46050iXEBM15..RHD202301-202311

55783ELOUVER, COWL TOP VENTILATOR, CENTER

main55783-46030iXEBM15..B..CHI202301

main55783-46040iXEBM1#..RHD202311

55787CINSULATOR, COWL TOP PANEL, NO.1

main55787-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311-202405

main5578A-46010iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202406

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-46010iXEBM15..B..CHI202301

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-46010iXEBM15..B..CHI202301

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-46020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-46020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

55799CCLIP, COWL TOP VENTILATOR LOUVER

main90467-06206-C0×3iXEBM15..B..CHI202301

BLACK

56111GLASS, WINDSHIELD

main56101-46901supersedes 56101-46900iXEBM15..LHD..GEN202302-202311

main56101-46913iXEBM15..RHD..(B,C)202301-202311

main56101-46914iXEBM1#..RHD..L202311

HEAD UP DISPLAY-WITH

main56101-46904supersedes 56101-46902iXEBM15..LHD..B..EUR202311-202410

DESTINATION PACKAGE(ERP)-TURKEY SPEC&COLD AREA SPEC

main56101-46905iXEBM15..LHD..C..EUR202311

DESTINATION PACKAGE(ERP)-UKRAINE SPEC&COLD AREA SPEC&HEAD UP DISPLAY-WITH

main56101-46906supersedes 56101-46902iXEBM15..LHD..B..EUR202311-202410

COLD AREA SPEC

main56101-46907supersedes 56101-46903iXEBM15..LHD..C..EUR202301-202311

COLD AREA SPEC

main56101-46910supersedes 56101-46908iXEBM10..CHI;XEBM15..C..CHI202311-202410

COLD AREA SPEC

main56101-46911supersedes 56101-46909iXEBM15..L..CHI202311-202410

COLD AREA SPEC

main56101-46915iXEBM15..RHD..(B,C)..EUR202301-202311

COLD AREA SPEC

main56101-46916iXEBM1#..RHD..L..EUR202311

COLD AREA SPEC

main56101-46918iXEBM15..L..CHI202311

HEAD UP DISPLAY-WITH&ETC-WITH

main56101-46919supersedes 56101-46908iXEBM10..CHI;XEBM15..C..CHI202311-202410

COLD AREA SPEC&ETC-WITH

main56101-46920supersedes 56101-46909iXEBM15..L..CHI202311-202410

COLD AREA SPEC&ETC-WITH

main56101-46921supersedes 56101-46908iXEBM10..CHI;XEBM15..C..CHI202311

ETC-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

56117ADAM, WINDOW GLASS ADHESIVE

main56117-64010supersedes 56117-64010iXEBM15..C..(CHI,EUR)202301-202311

*D,L=3019,ANDORRA,MONACO SPEC&HEAD UP DISPLAY-WITH

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-46040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

8617

9011906A18

main90119-06A18

9017810029

main90178-10029

9046709242

main90467-09242

22 parts on this diagram · 2 diagrams in section
