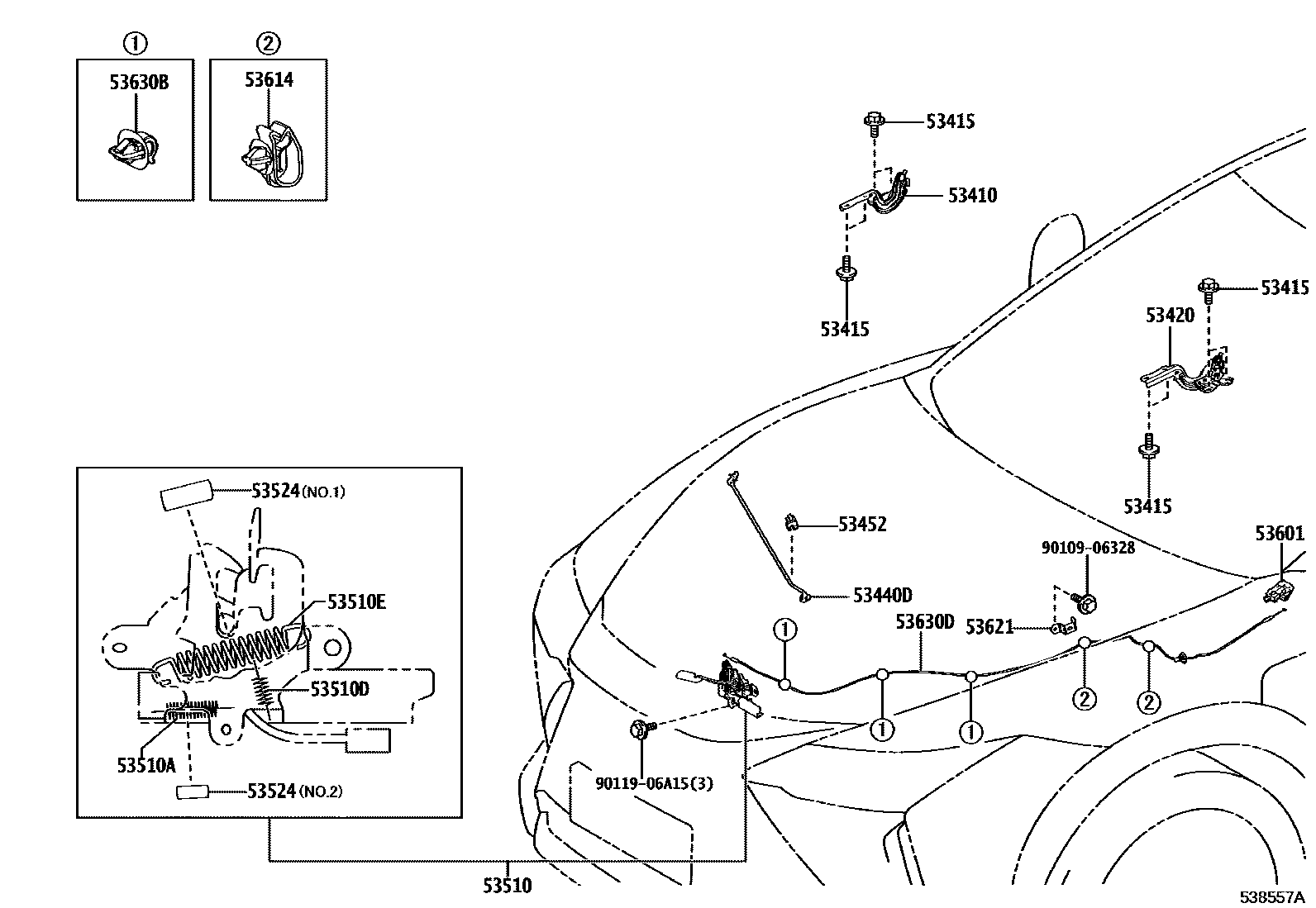

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-46050iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

53415BOLT, HOOD HINGE

main91551-80820×8iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

53420HINGE ASSY, HOOD, LH

main53420-46050iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

53440DSUPPORT ASSY, HOOD

main53440-46030iXEBM15202301-202302

main53440-46031iXEBM15202302-202303

main53440-46032iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

53452HOLDER, HOOD STAY

main53452-76020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

53510LOCK ASSY, HOOD

main53510-46020iXEBM15..LHD..(C,L);XEBM15..LHD..B..EUR202301-202311

main53510-46030iXEBM1#..RHD202311

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iXEBM15..B..CHI202301

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

WD=1.6,CW=12

53524DAMPER, HOOD LOCK SPRING

main53524-30020iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

NO.1:REFER ILLUST.

main53524-30040iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

NO.2:REFER ILLUST.

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30110-C0iXEBM1#..C,L202311

BLACK,TRIM1#

53614CLAMP, HOOD LOCK CONTROL CABLE

main82711-16790×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

53621BRACKET, HOOD LOCK CONTROL CABLE

main53631-46010×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

53630DSET, CABLE & LEVER, HOODLOCK CONTROL

main53630-46040iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9010906328

main90109-06328

9011906A15

main90119-06A15

17 parts on this diagram · 2 diagrams in section
