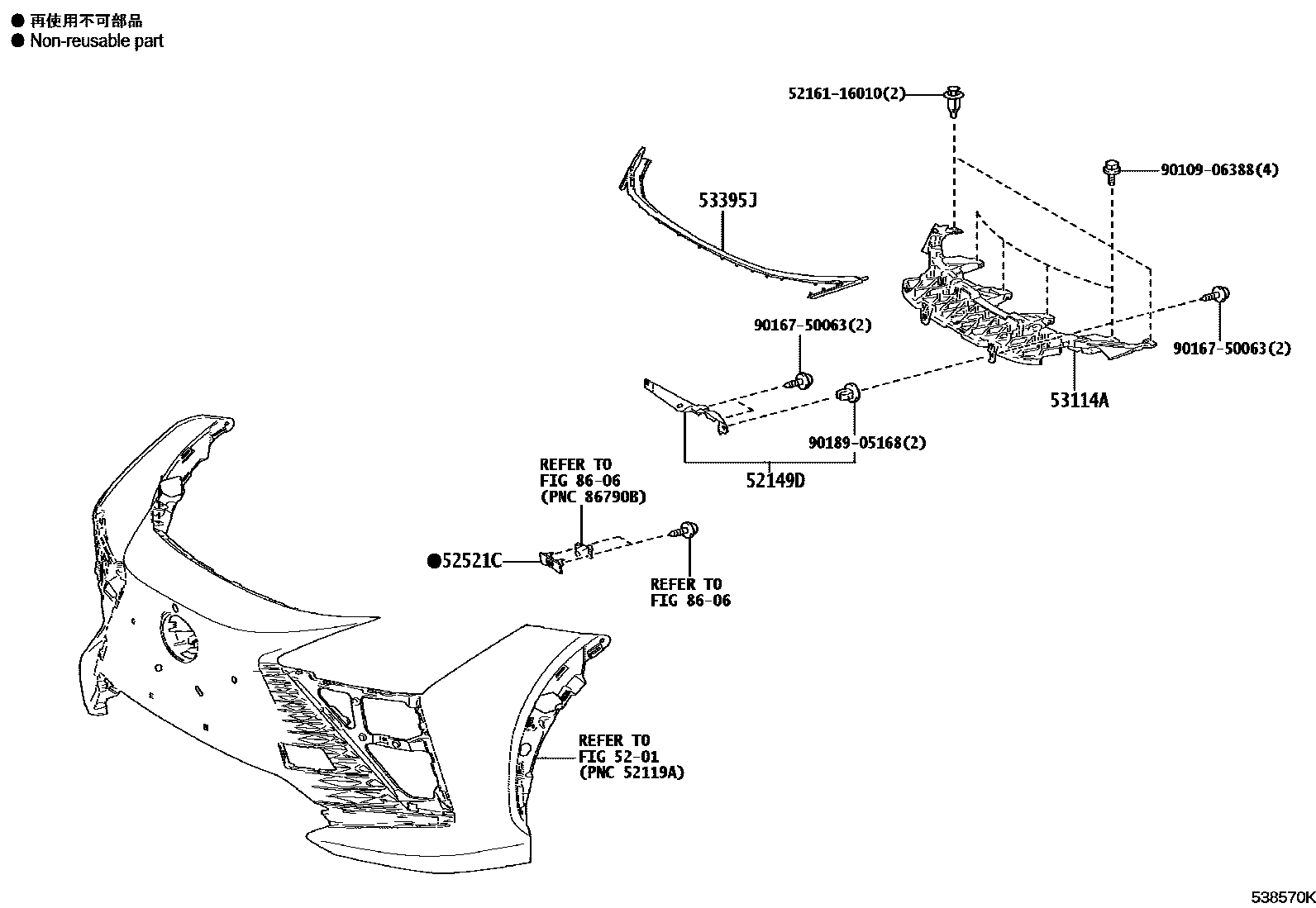

RADIATOR GRILLE
5201
52149DBRACKET, FRONT BUMPER, INNER
52521CRETAINER, FRONT BUMPER, UPPER
COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&BACK MONITOR-WITH(*PVM),SONIC QUARTZ,085
SONIC CHROME,1L1
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB)&PERIPHERAL MONITOR CAMERA-WITH(*PVM),SONIC IRIDIUM,1L2
COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(*PVM),BLACK,2YF ,2YG ,2YH
GRAPHITE BLACK GF.,223
CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)&BACK MONITOR-WITH(*PVM),SONIC COPPER,4Y5
COLD AREA SPEC&PERIPHERAL MONITOR CAMERA-WITH(*PVM),AETHER ME.,8Z2
53114AGRILLE, RADIATOR, INNER
53395JSEAL, HOOD TO FRONT END PANEL
8606
5216116010CUSHION, REAR BUMPER GUARD, NO.1
main52161-16010
9010906388
main90109-06388
9016750063
main90167-50063
9018905168
main90189-05168
10 parts on this diagram · 1 diagram in section
