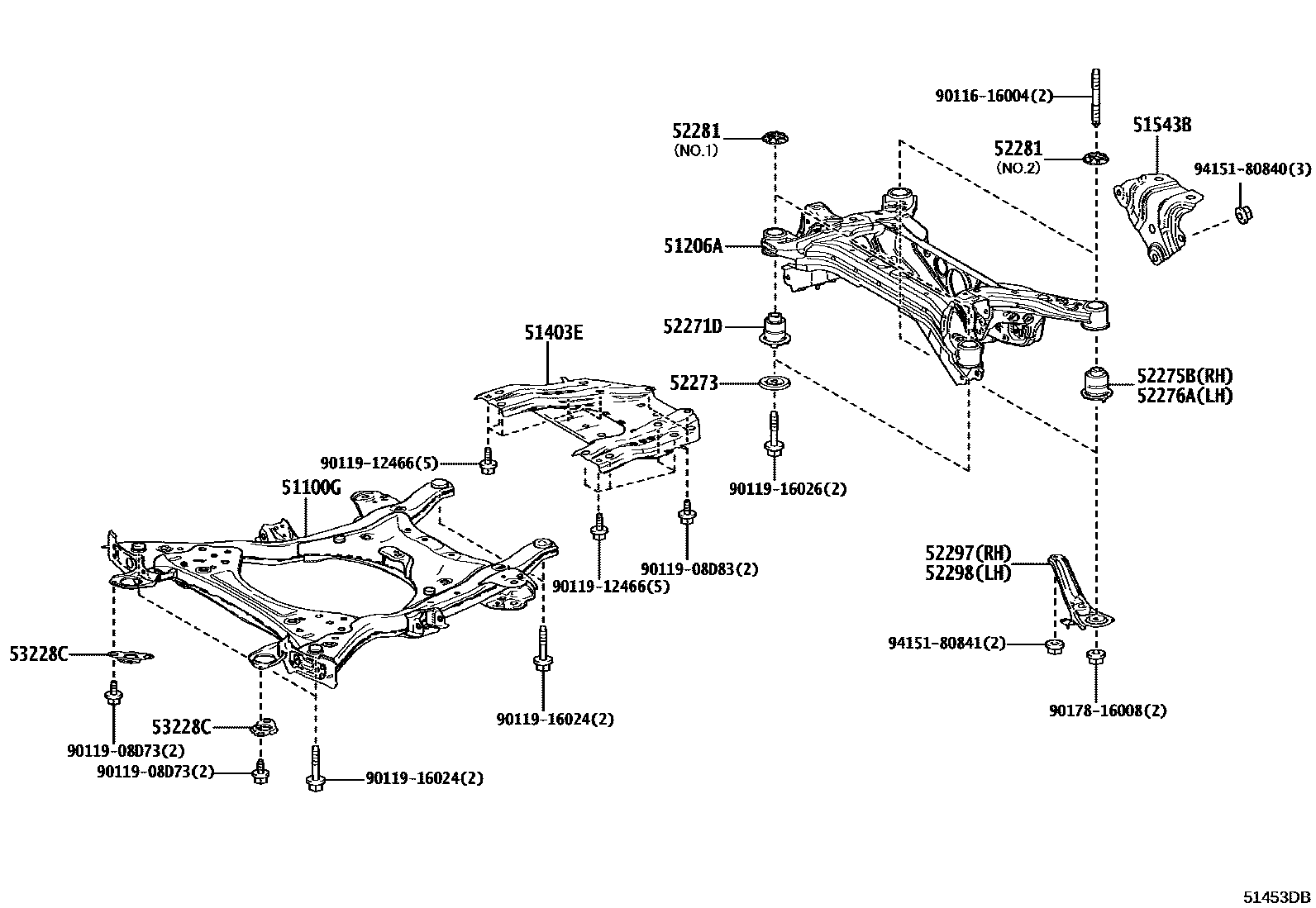

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1SUSPENSION CROSSMEMBER 0003 1MOTOR UNDER COVER 0004 1FLOOR UNDER COVER 0005 1FLOOR UNDER COVER

51100GFRAME ASSY, FRONT

main51100-42041iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51200-42010iXEBM10202311-202403

main51200-42013iXEBM10202403-202404

main51200-42014iXEBM10202405-202409

main51200-42015iXEBM10202410

main51200-42040iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311-202403

main51200-42041iXEBM15..B..CHI202311-202402

main51200-42042iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202403

51403EBRACE SUB-ASSY, FRONT SUSPENSION MEMBER

main51403-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

51543BBRACKET, DAMPER

main51543-42010iXEBM10202311

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-42020×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

52273STOPPER, REAR SUSPENSION MEMBER, LOWER

main52273-33030×2iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-42020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

52281CUSHION, DIFFERENTIAL SUPPORT MEMBER

main52281-33020×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

NO.1:REFER ILLUST.

main52281-42020×2iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

NO.2:REFER ILLUST.

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-42040iXEBM15..B..CHI202301

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-42030iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

53228CBRACKET, RADIATOR MOUNTING, LOWER NO.1

main53228-42040×2iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202311

9011616004

main90116-16004

9011908D73

main90119-08D73

9011908D83

main90119-08D83

9011912466

main90119-12466

9011916024

main90119-16024

9011916026

main90119-16026

9017816008

main90178-16008

9415180840

main94151-80840

9415180841

main94151-80841

21 parts on this diagram · 5 diagrams in section
