STEERING COLUMN & SHAFT

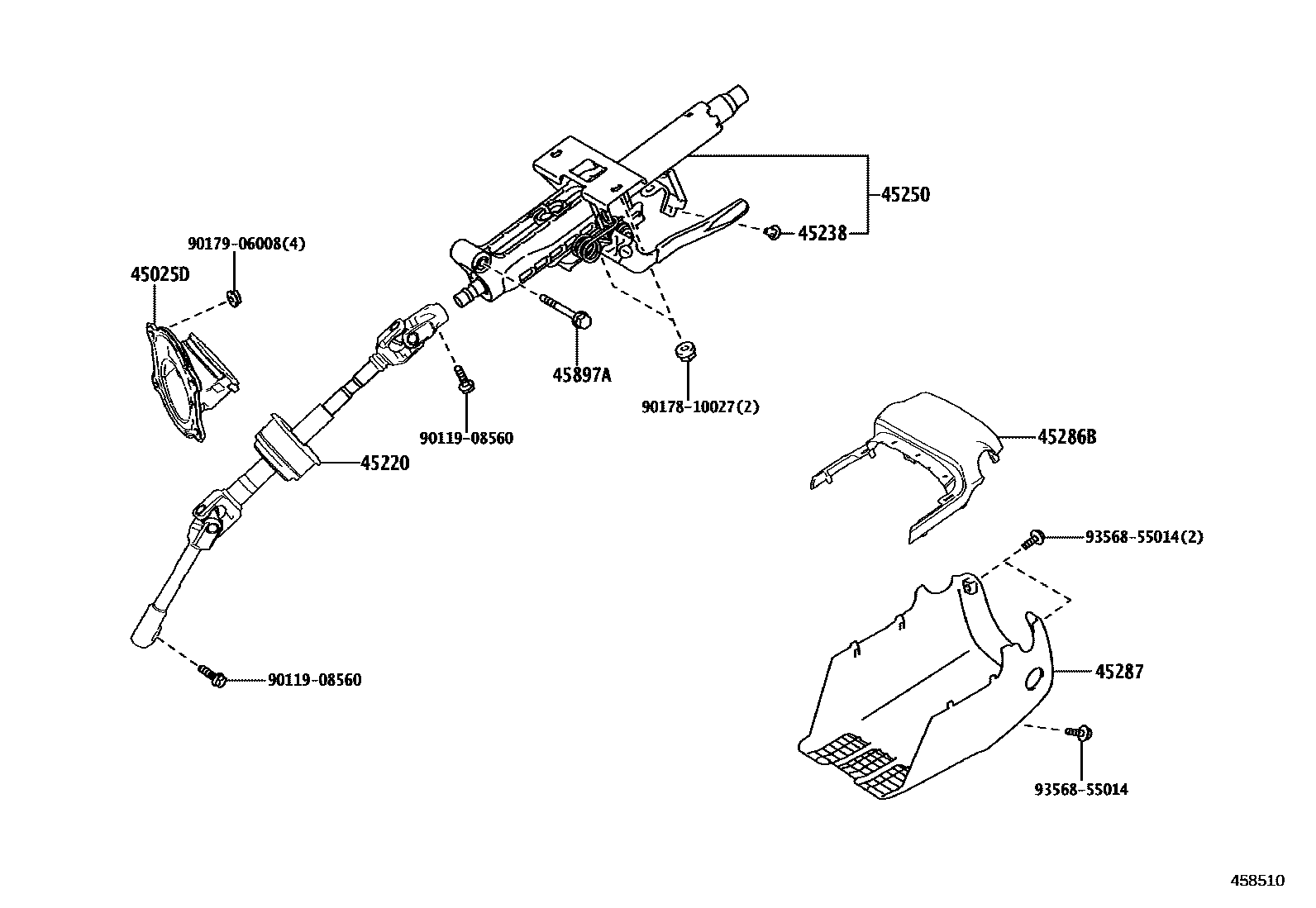

Parts diagram
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
main45025-42100i202301-202311
45220SHAFT ASSY, STEERING INTERMEDIATE
main45220-42030i202301-202304
STEERING COLUMN-POWER(STEER BY WIRE),WITH(LOCK)
main45220-42030i202301-202311
main45220-42040i202301-202311
main45220-42040i202301-202304
STEERING COLUMN-POWER(STEER BY WIRE),WITH(LOCK)
45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)
main45238-11010i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK)
main45238-11010i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
main45238-52010i202301-202311
45250COLUMN ASSY, STEERING
main45250-42420i202301-202311
main45250-42450i202301
main45250-46040i202301-202311
main45250-46050i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)
main45250-46060i202301-202311
main45250-48430i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK)
main45250-48430i202307-202311
NEW ZEALAND SPEC
45286BCOVER, STEERING COLUMN, UPR
main45286-46070-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45286-46070-C0i202301-202311
BLACK,TRIM1#
main45286-48100-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK),BLACK,TRIM1#,4#,8#
main45286-48100-C0i202302-202311
BLACK,TRIM1#,4#,8#
main45286-48100-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main45286-48100-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM1#,4#,8#
main45286-48110-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45286-48110-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main45286-48110-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48110-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48110-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48110-C0i202302-202311
SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48120-C0i202301-202311
TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48120-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45286-48120-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45286-48120-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48120-C0i202301-202311
SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45286-48120-C0i202301-202311
TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45286-78020-C0i202301
BLACK,TRIM1#
main45286-78020-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45286-78020-C0i202301-202311
TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45286-78030-C0i202301-202311
TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM1#,4#,8#
main45286-78030-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45286-78030-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM1#,4#,8#
45287COVER, STEERING COLUMN, LWR
main45024-46100-C0i202301
BLACK,TRIM1#
main45024-46100-C0i202301-202311
TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45024-46100-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45024-46110-C0i202301-202311
BLACK,TRIM1#
main45024-46110-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45024-46120-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45024-46120-C0i202301-202311
TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM1#,4#,8#
main45024-46120-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM1#,4#,8#
main45024-46130-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK),BLACK,TRIM1#,4#,8#
main45024-46130-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK),BLACK,TRIM1#,4#,8#
main45024-46130-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main45024-46130-C0i202302-202311
BLACK,TRIM1#,4#,8#
main45024-46140-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46140-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46140-C0i202301-202311
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46140-C0i202302-202311
SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46140-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45024-46140-C0i202301-202311
PRE-COLLISION SYSTEM-WITH(DRIVER MONITOR),BLACK,TRIM1#,4#,8#
main45024-46150-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46150-C0i202301-202311
BLACK,TRIM1#,4#,8#
main45024-46150-C0i202301-202311
TAIWAN SPEC&STEERING COLUMN-POWER(TILT & TELESCOPIC),WITHOUT(LOCK)&SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46150-C0i202301-202311
SEAT HEATER-WITH(*DRP(RADIATION)),BLACK,TRIM1#,4#,8#
main45024-46150-C0i202301-202311
TAIWAN SPEC,BLACK,TRIM1#,4#,8#
main45024-46150-C0i202311
DESTINATION PACKAGE(ERP)-TAIWAN SPEC,BLACK,TRIM1#,4#,8#
45897BOLT, STEERING LOCK SET
main45897-12020i202307-202311
NEW ZEALAND SPEC
main45897-12020i202301-202311
main45897-12020i202302-202307
STEERING COLUMN-POWER(TILT & TELESCOPIC),WITH(LOCK)
45897ABOLT, TILT STEERING PAWL SET
main90119-10980i202301-202311
9011908560
main90119-08560
9017810027
main90178-10027
9017906008
main90179-06008
9356855014
main93568-55014

12 parts on this diagram · 4 diagrams in section
