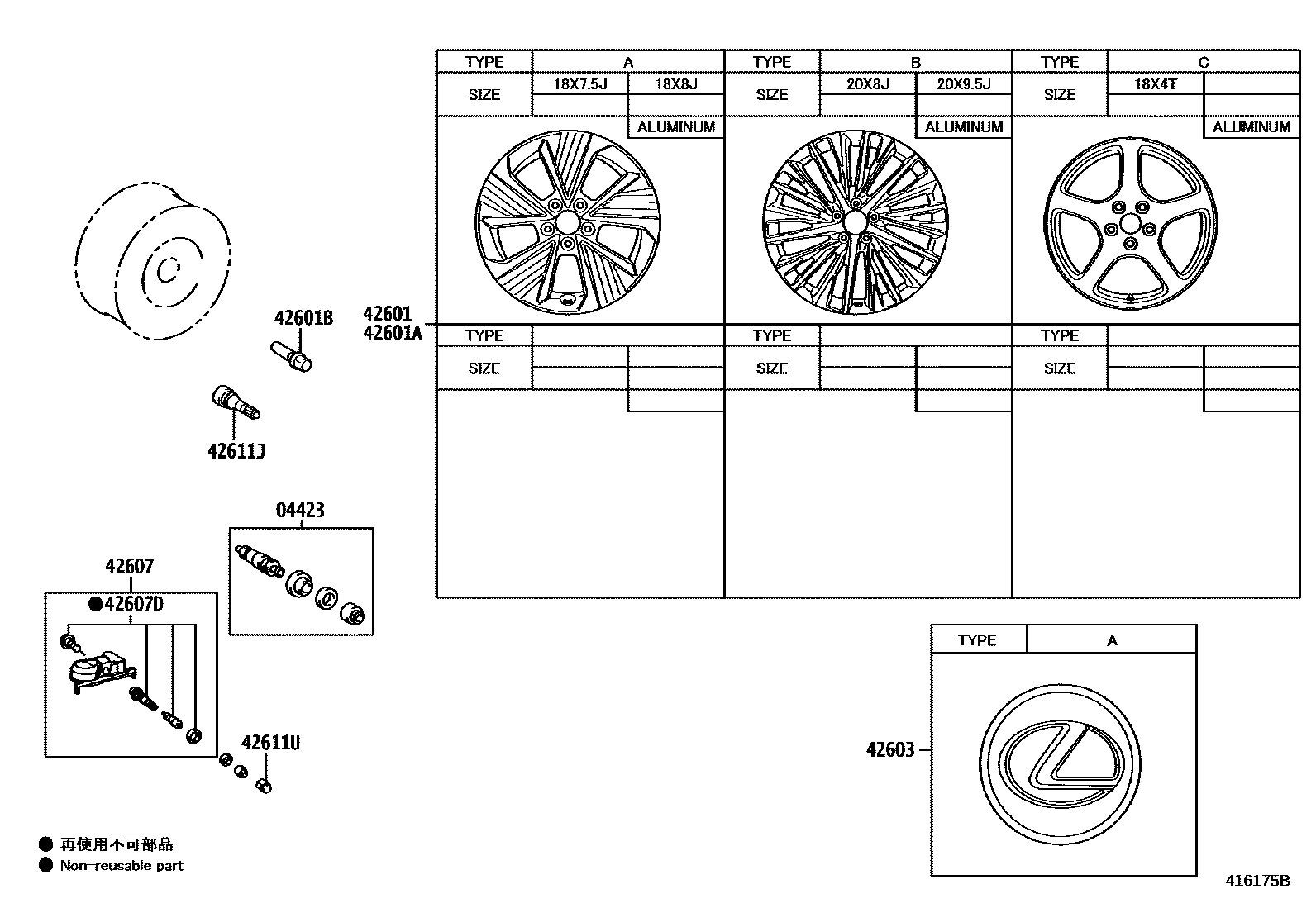

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
18X7.5J, #,TYPE A:REFER ILLUST.
18X7.5J, #,FR,TYPE A:REF ILL.
18X7.5J, #,FR,TYPE A:REF ILL.
18X8J, #,RR,TYPE A:REF ILL.
18X8J, #,RR,TYPE A:REF ILL.
20X8J, #,FR,TYPE B:REF ILL.
20X8J, #,TIRE & DISC WHEEL-235/50R20+255/45R20,BLACK PAINTED,FR,TYPE B:REF ILL.
20X8J, #,FR,TYPE B:REF ILL.
20X8J, #,TIRE & DISC WHEEL-235/50R20+255/45R20,BLACK PAINTED,FR,TYPE B:REF ILL.
20X9.5J, #,TIRE & DISC WHEEL-235/50R20+255/45R20,BLACK PAINTED,RR,TYPE B:REF ILL.
20X9.5J, #,RR,TYPE B:REF ILL.
20X9.5J, #,TIRE & DISC WHEEL-235/50R20+255/45R20,BLACK PAINTED,RR,TYPE B:REF ILL.
20X9.5J, #,RR,TYPE B:REF ILL.
42601AWHEEL, DISC (FOR SPARE)
18X4T,TYPE C:REFER ILLUST.
18X4T,JACK-WITH&INDONESIA SPEC,TYPE C:REFER ILLUST.
42601BBOLT, HUB (FOR AXLE)
42603ORNAMENT SUB-ASSY, WHEEL HUB
*ALU,TYPE A:REFER ILLUST.
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607DVALVE, TIRE PRESSURE MONITOR
42611JVALVE (FOR TUBELESS TIRE SPARE)
JACK-WITH&INDONESIA SPEC
42611UCAP, TIRE VALVE
9 parts on this diagram · 2 diagrams in section
