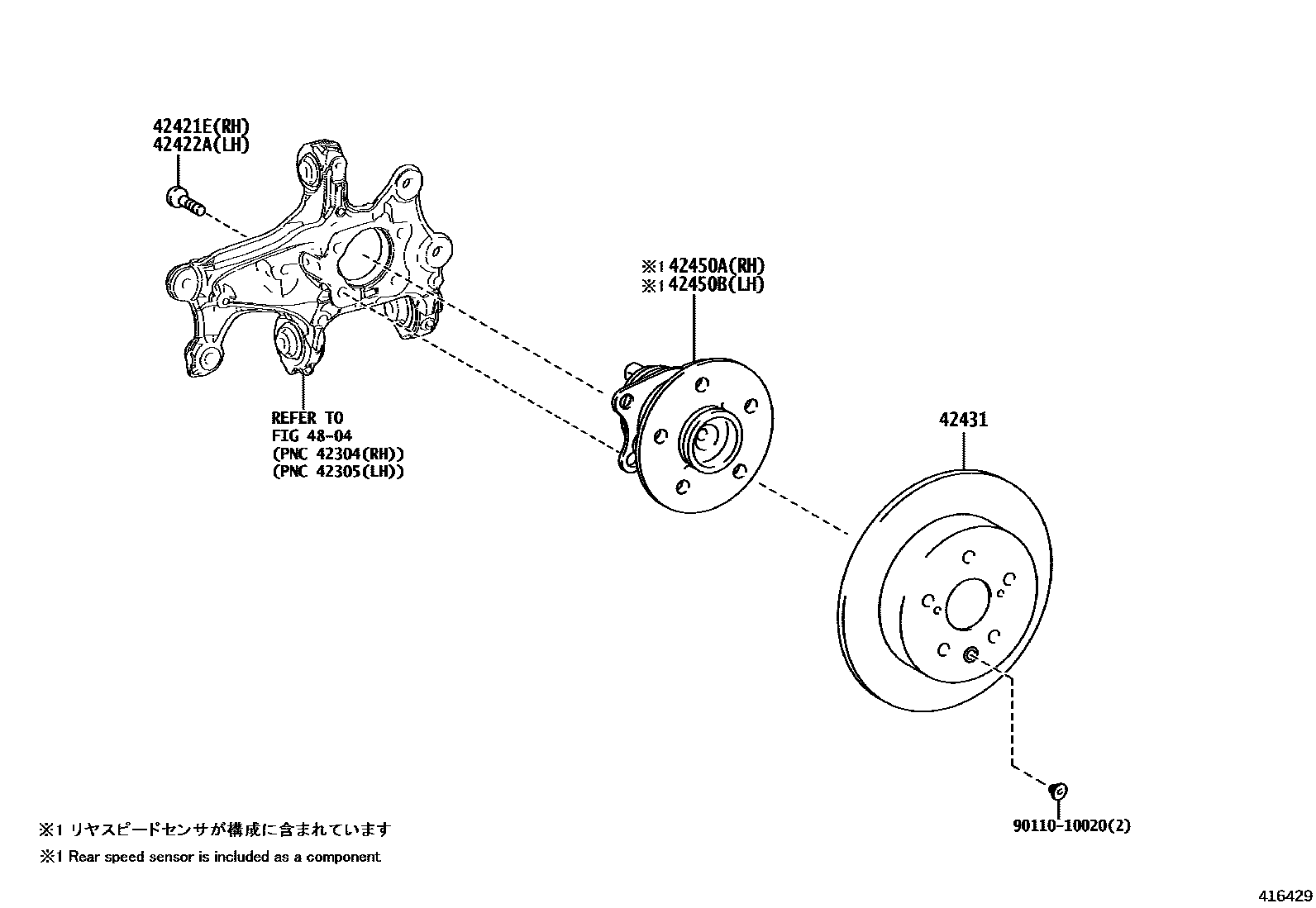

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12016iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12016iXEBM15..B..CHI202301-202311

42431DISC, REAR

main42431-78030iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-42080iXEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301-202311

main42450-42070iXEBM10202311

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-42080iXEBM15..B..CHI202301-202311

main42450-42070iXEBM10202311

4804

9011010020

main90110-10020

7 parts on this diagram · 3 diagrams in section
