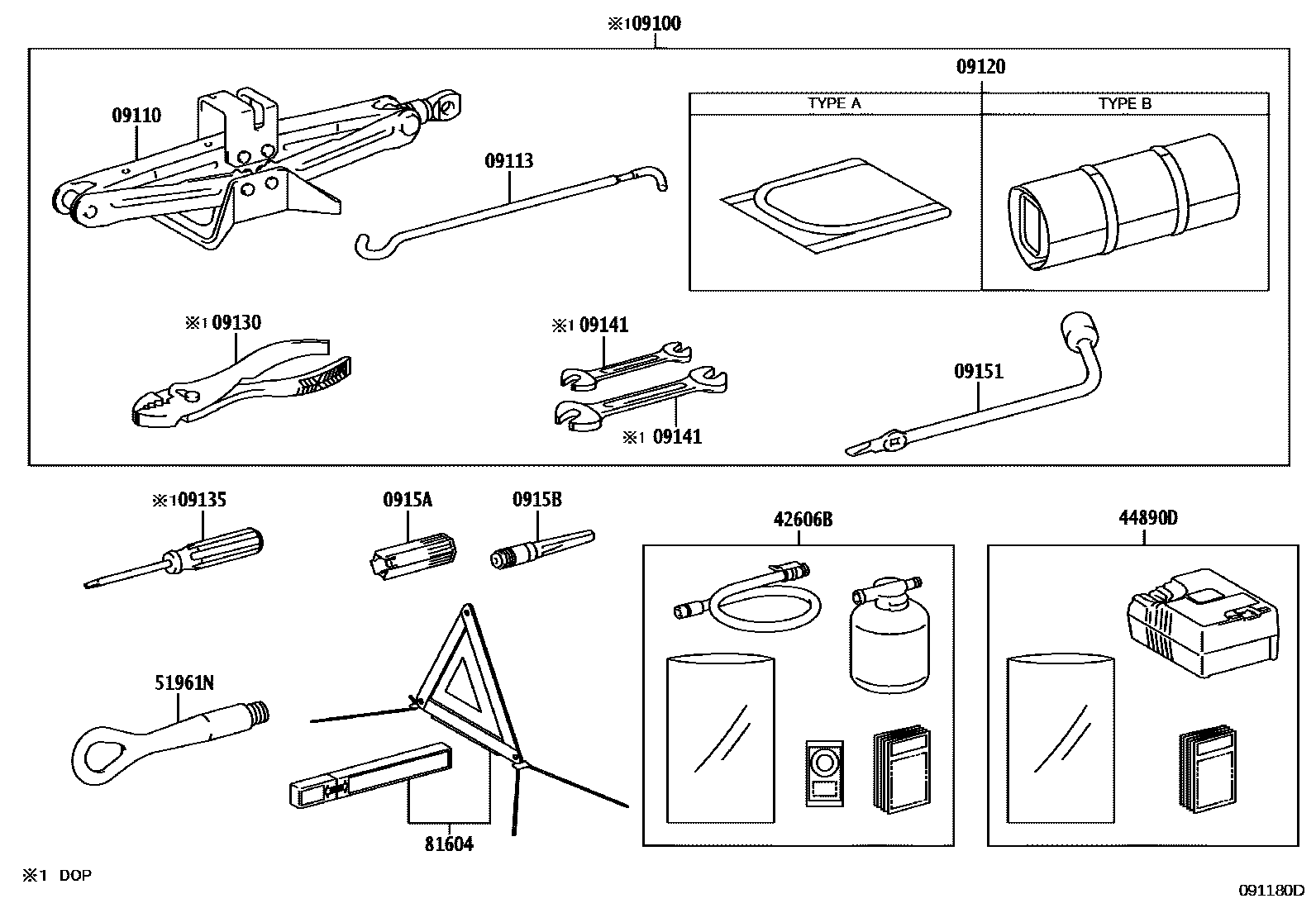

STANDARD TOOL

09100TOOL SET, STANDARD

main09100-46040

09110JACK ASSY

main09111-42070iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

main09111-42070iXEBM1#..LHD..GEN202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

09113HANDLE, JACK

main09113-42030iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

main09113-42030iXEBM1#..LHD..GEN202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

09120BAG, TOOL

main09120-50050iXEBM1#..LHD..GEN202311

TYPE B:REFER ILLUST.

main09120-50050iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC,TYPE B:REFER ILLUST.

main09120-50050iXEBM1#..LHD..GEN202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP,TYPE B:REFER ILLUST.

09130PLIERS

main09130-50040

09135DRIVER, SCREW

main09135-50060

09141SPANNER

main09141-60010

main09141-60020

09151WRENCH, HUB BOLT BOX

main09151-42010iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

main09151-42010iXEBM1#..LHD..GEN202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

main0915A-53010iXEBM1#..LHD..GEN202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

0915BPIN, WHEEL GUIDE

main0915B-53010iXEBM1#..LHD..GEN202311

JACK-WITH(DOP)&TOOL(DOP)-*JJTHSP

main0915B-53010iXEBM1#..LHD..GEN202311

JACK-WITH&INDONESIA SPEC

42606BREPAIR KIT, TUBELESS TIRE

main42606-42080iXEBM1#..RHD;XEBM1#..LHD..EUR202311

JACK-WITH&INDONESIA SPEC

main42606-42080iXEBM15..ARL,EUR,GEN202301-202311

main42606-42110iXEBM15..CHI202301

44890DCOMPRESSOR ASSY, AIR

main44890-42050iXEBM1#..RHD;XEBM1#..LHD..EUR202301-202311

main44890-42070iXEBM10..CHI;XEBM15..(C,L)..CHI202301-202311

51961NHOOK, TRANSPORT

main51961-46020iXEBM10;XEBM15..(C,L)..CHI;XEBM15..ARL,EUR,GEN202301

81604REFLECTOR SET, TRIANGLE

main81604-33010iXEBM10..CHI;XEBM15..(C,L)..CHI202301-202311

14 parts on this diagram · 1 diagram in section
