HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

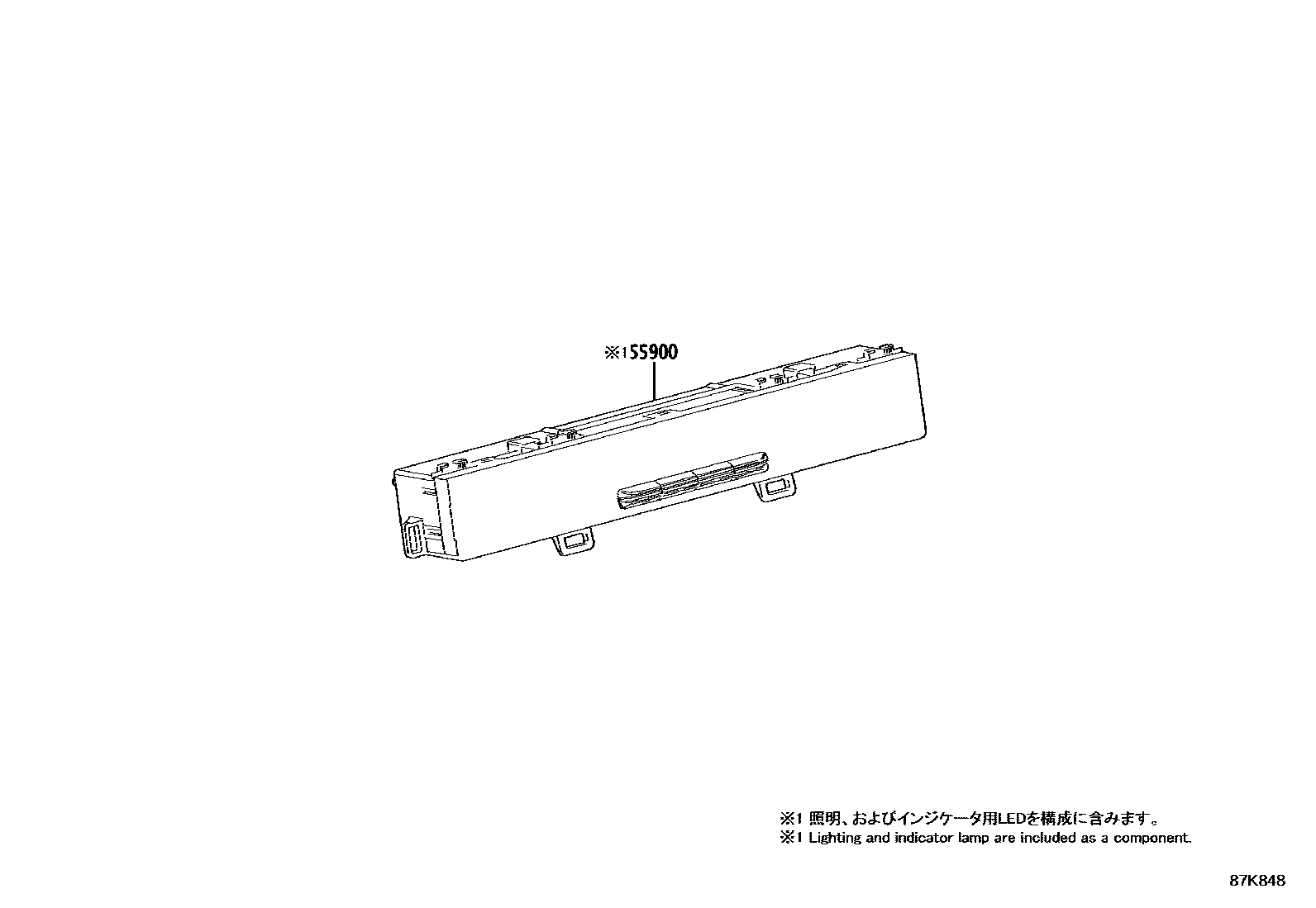

55900CONTROL ASSY, AIR CONDITIONER

main55900-42711iYEAM15..ARL202311-202411

main55900-42840iXEAM10,YEAM15..LHD..H202203-202310

sub55900-42841

main55900-42850iXEAM10,YEAM15..LHD..M202203-202310

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

sub55900-42851

main55900-42851iXEAM10,YEAM15..LHD..P202311-202411

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

main55900-42860iXEAM10,YEAM15..LHD..M202203-202310

sub55900-42861

main55900-42861iXEAM10,YEAM15..LHD..M202311-202411

main55900-42891iXEAM10,YEAM15..LHD..H202311-202411

main55900-42B41iXEAM10,YEAM15..RHD..H..EUR202311-202411

main55900-42B80iXEAM10,YEAM15..RHD..M202203-202310

sub55900-42B81

main55900-42B81iXEAM10..RHD..M202311-202411

main55900-42D30iXEAM10,YEAM15..RHD..H202203-202311

main55900-42D40iXEAM10,YEAM15..RHD..P202203-202310

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

sub55900-42D41

main55900-42D41iXEAM10,YEAM15..RHD..P202311-202411

SEAT HEATER-WITH(DRIVER SEAT & PASSENGER SEAT)

1 parts on this diagram · 5 diagrams in section
