CRUISE CONTROL (AUTO DRIVE)

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-48170iXEAM10,YEAM15202311-202411

main88210-78020iXEAM10,YEAM15202203-202310

88215BBRACKET, FRONT SIDE RADAR SENSOR, RH

main88215-42010iXEAM10,YEAM15..H..EUR202412

REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)

main88215-42010iXEAM10,YEAM15..H..EUR202412

REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)

main88215-42010iXEAM10,YEAM15..(H,P)..EUR202311-202411

FRONT CROSS TRAFFIC ALERT-WITH

88215CBRACKET, FRONT SIDE RADAR SENSOR, LH

main88215-42020iXEAM10,YEAM15..RHD..H..EUR202412

REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)

main88215-42020iXEAM10,YEAM15..H..EUR202412

REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)

main88215-42020iXEAM10,YEAM15..(H,P)..EUR202311-202411

FRONT CROSS TRAFFIC ALERT-WITH

882B1SENSOR, FRONT SIDE RADAR

main882B1-30030iXEAM10,YEAM15..(H,P)..EUR202311-202402

FRONT CROSS TRAFFIC ALERT-WITH

sub882B1-30031

main882B1-30031iXEAM10,YEAM15..H..EUR202412

REAR & REAR SIDE MONITOR-WITH(*ARFHL&*LC & SAFE EXIT ASSIST)

main882B1-30031iXEAM10,YEAM15..RHD..H..EUR202412

REAR & REAR SIDE MONITOR-WITH(SAFE EXIT ASSIST)

main882B1-30031iXEAM10,YEAM15..(H,P)..EUR202403-202411

FRONT CROSS TRAFFIC ALERT-WITH

8935842010NUT, ULTRASONIC SENSOR

main89358-42010

9015960395

main90159-60395

9016750063

main90167-50063

9017906362

main90179-06362

9167380616

main91673-80616

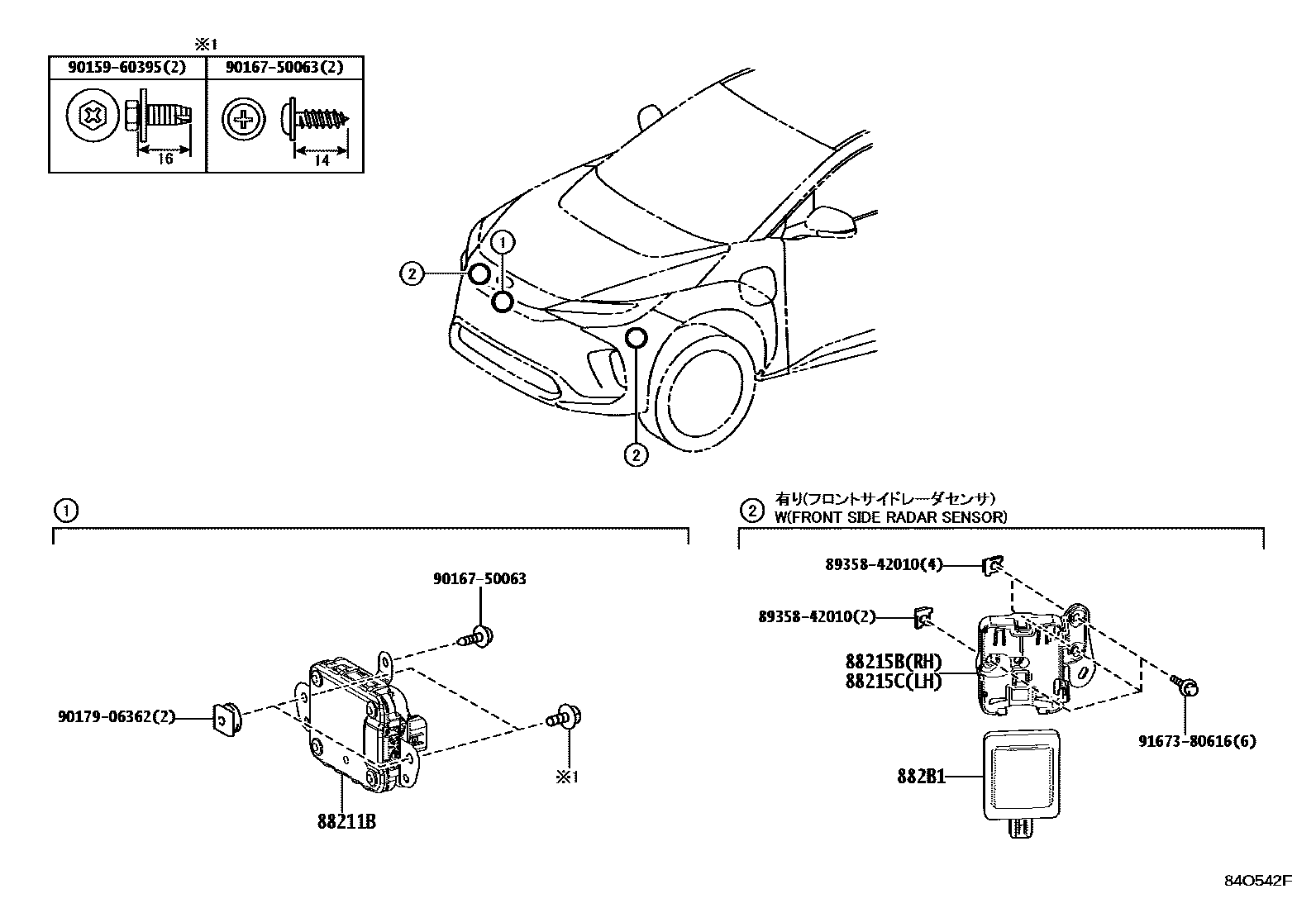

9 parts on this diagram · 1 diagram in section
