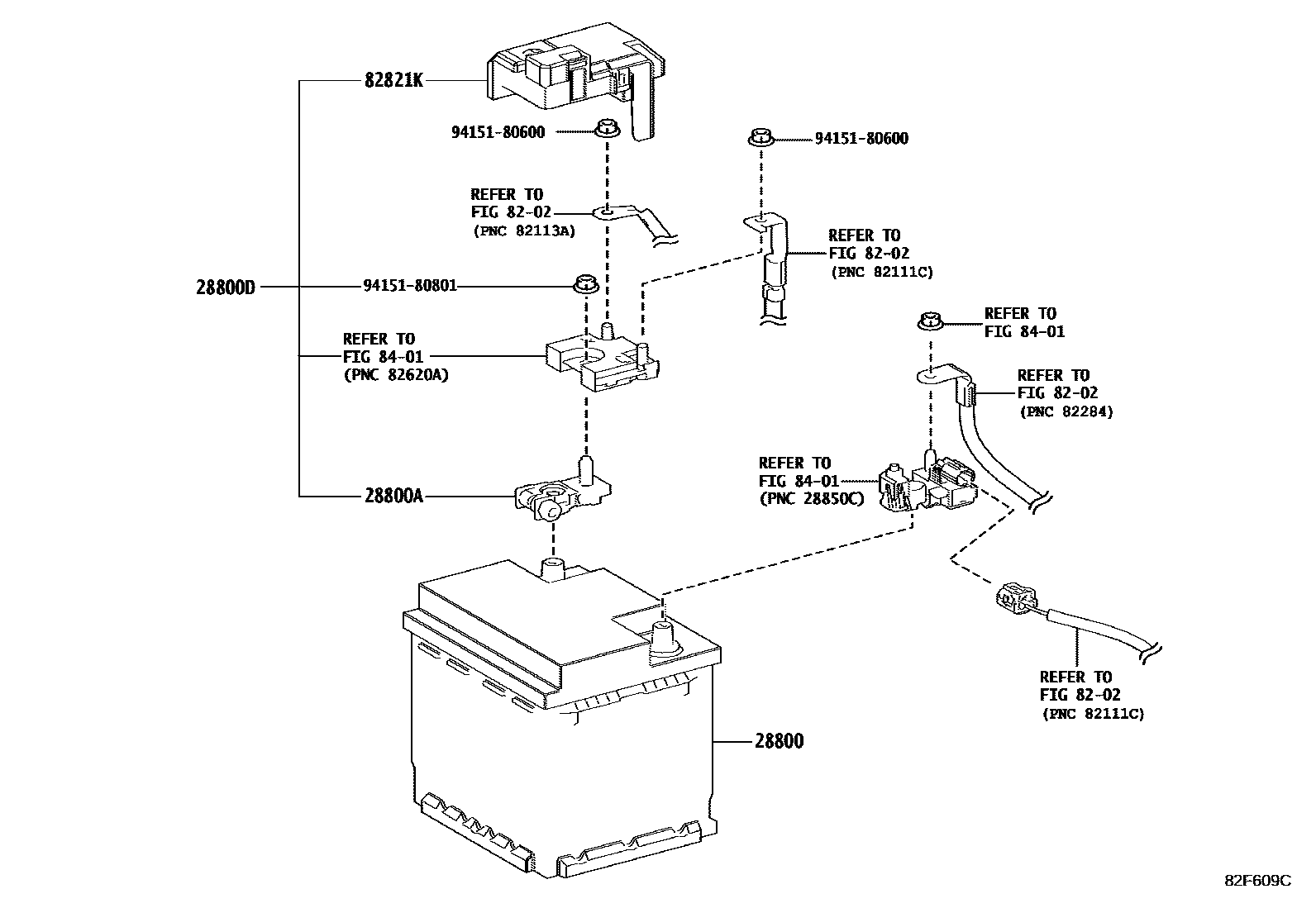

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 1EV BATTERY 1/3 0003 1EV BATTERY 2/3 0004 1EV BATTERY 3/3 0005 1SERVICE PLUG

28800BATTERY

main28800-10200iEM..XEAM10,YEAM15202203-202208

LN1

sub28800-10201

main28800-10201iEM..XEAM10,YEAM15202209-202403

LN1

sub28800-10202

main28800-10202iEM..XEAM10,YEAM15202404-202411

LN1

28800ATERMINAL, BATTERY POSITIVE

main90982-05071iEM..YEAM15..RHD..M202203-202411

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-42390iEM..XEAM10,YEAM15202203-202411

8202

82821KCOVER, CONNECTOR

main82821-42140iXEAM10,YEAM15202203-202411

8401

9415180600

main94151-80600

9415180801

main94151-80801

8 parts on this diagram · 5 diagrams in section
