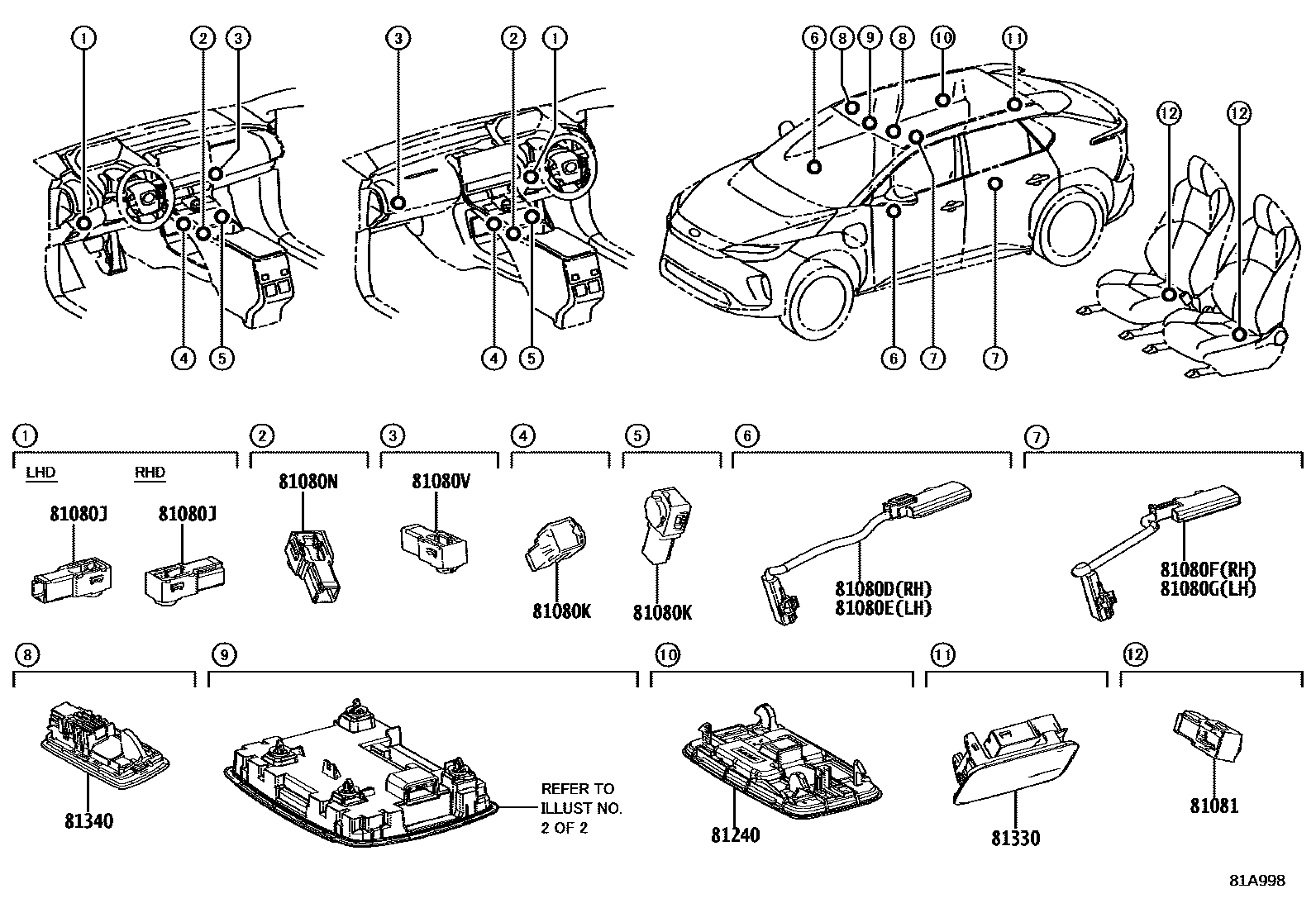

INTERIOR LAMP

0001 1 0002 1

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-42090iXEAM10,YEAM15..H,P202203-202411

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-42100iXEAM10,YEAM15..H,P202203-202411

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

main81080-30190iXEAM10,YEAM15..H,P202209-202411

main81080-42090iXEAM10,YEAM15..H,P202203-202208

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

main81080-30200iXEAM10,YEAM15..H,P202209-202411

main81080-42100iXEAM10,YEAM15..H,P202203-202208

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iXEAM10,YEAM15..H,P202203-202411

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

main81080-33310iXEAM10,YEAM15..H,P202203-202411

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-42110iXEAM10,YEAM15..H,P202203-202411

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

main81080-33290iXEAM10,YEAM15..H,P202203-202411

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81080-33290iXEAM10,YEAM15..H,P202203-202411

81240LAMP ASSY, ROOM, NO.1

main81240-48040-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM1#,2#

main81240-48040-C1iXEAM10..TAIW;XEAM10,YEAM15..H202203-202411

BLACK,TRIM2#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-11010iXEAM10,YEAM15202203-202411

81340LAMP ASSY, VANITY

main81340-33170iXEAM10,YEAM15202203-202411

12 parts on this diagram · 2 diagrams in section
