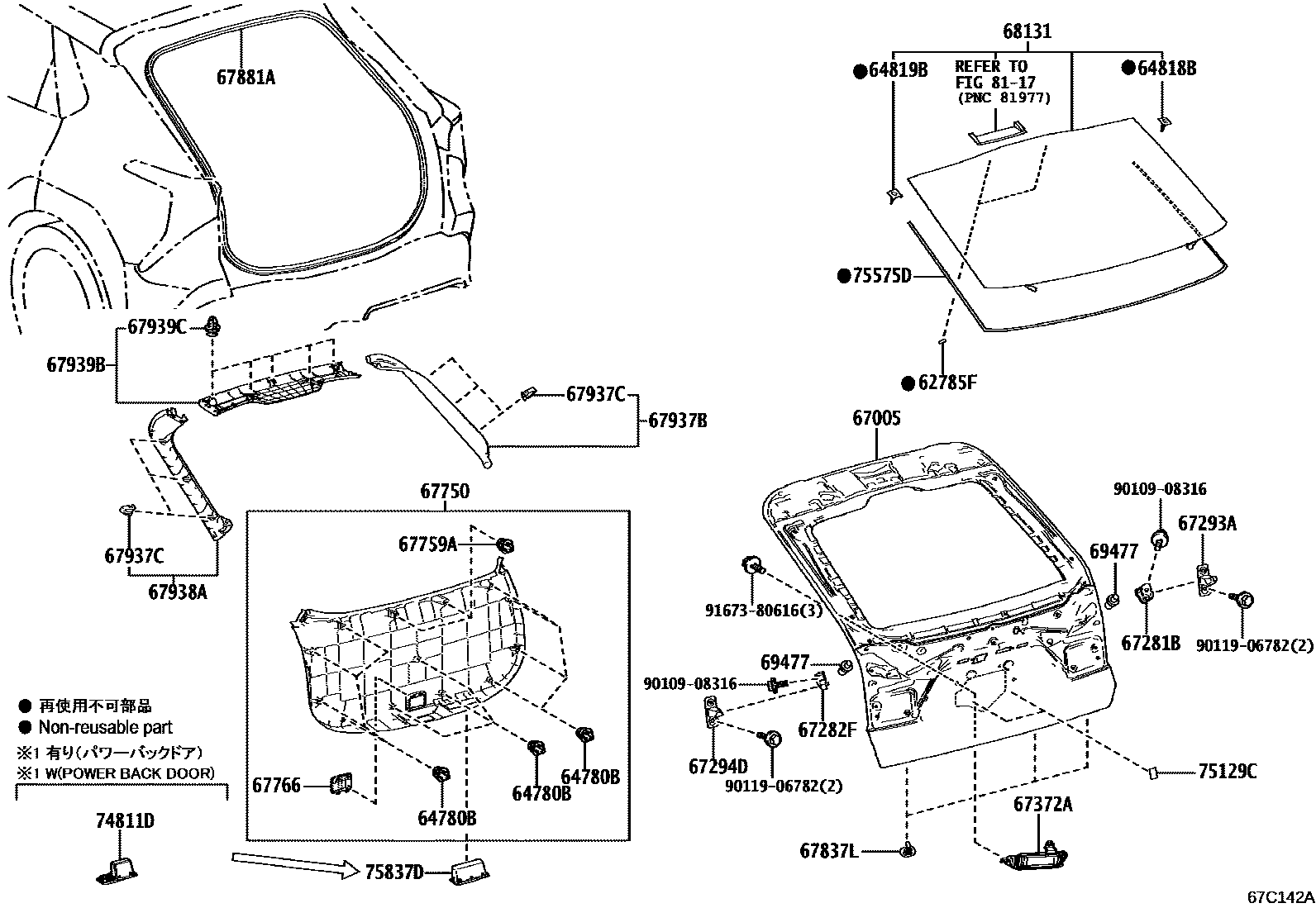

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64780BCLIP(FOR BACK DOOR TRIM PANEL)
64818BSPACER, BACK DOOR GLASS, NO.1
64819BSPACER, BACK WINDOW GLASS, NO.2
67005PANEL SUB-ASSY, BACK DOOR
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
sub67005-42711
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITHOUT
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)
AUTO & EASY CLOSER DOOR-WITHOUT
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67293ACUSHION, BACK DOOR STOPPER
67294DCUSHION, BACK DOOR STOPPER, LH
67372AWEIGHT, BACK DOOR
67750BOARD ASSY, BACK DOOR TRIM
BLACK,TRIM1#,2#
BLACK,TRIM2#
67759ACLIP(FOR BACK DOOR TRIM BOARD)
67766COVER, BACK DOOR SERVICE HOLE, NO.2
BLACK,TRIM1#,2#
BLACK,TRIM2#
67837LSEAL, DOOR DUST PROOF
67881AWEATHERSTRIP, BACK DOOR
67937BGARNISH, BACK DOOR SIDE, RH
BLACK,TRIM1#,2#
BLACK,TRIM2#
67937CCLIP(FOR BACK DOOR SIDE GARNISH)
67938AGARNISH, BACK DOOR SIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
67939BGARNISH, BACK DOOR, CENTER
BLACK,TRIM2#
BLACK,TRIM1#,2#
67939CCLIP(FOR BACK DOOR CENTER GARNISH)
68131GLASS, BACK DOOR
BACK GLASS-PRIVACY
BACK GLASS-PRIVACY
ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR&BACK GLASS-PRIVACY
ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR
ANTI-THEFT SYSTEM-ALARM, DOUBLE-LOCK, GLASS SENSOR
74811DHANDLE, DOOR PULL
AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),BLACK,TRIM2#
sub69291-78040
75129CCUSHION, REAR LICENCE PLATE
75575DMOULDING, BACK WINDOW, LOWER
75837DCOVER, BACK DOOR FINISH, RH
AUTO & EASY CLOSER DOOR-WITHOUT,BLACK,TRIM2#
sub75837-78010
8117
9010908316
main90109-08316
9011906782
main90119-06782
9167380616
main91673-80616
30 parts on this diagram · 1 diagram in section
