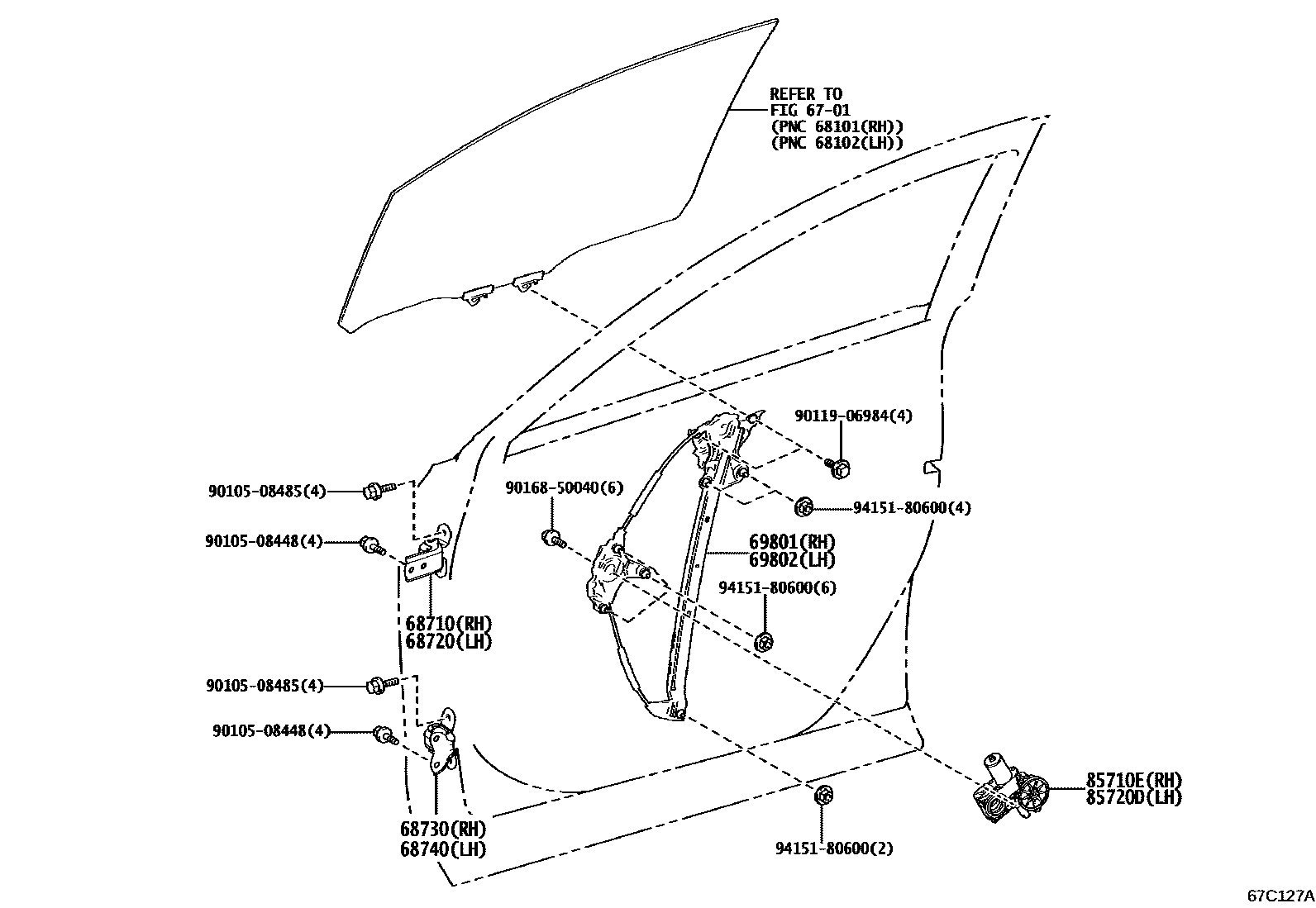

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iXEAM10,YEAM15202203-202411

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iXEAM10,YEAM15202203-202411

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iXEAM10,YEAM15202203-202411

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iXEAM10,YEAM15202203-202411

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-42080iXEAM10,YEAM15202203-202305

sub69801-42081

main69801-42081iXEAM10,YEAM15202306-202411

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-42080iXEAM10,YEAM15202203-202305

sub69802-42081

main69802-42081iXEAM10,YEAM15202306-202411

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-42160iXEAM10,YEAM15202203-202411

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-42150iXEAM10,YEAM15202203-202411

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
