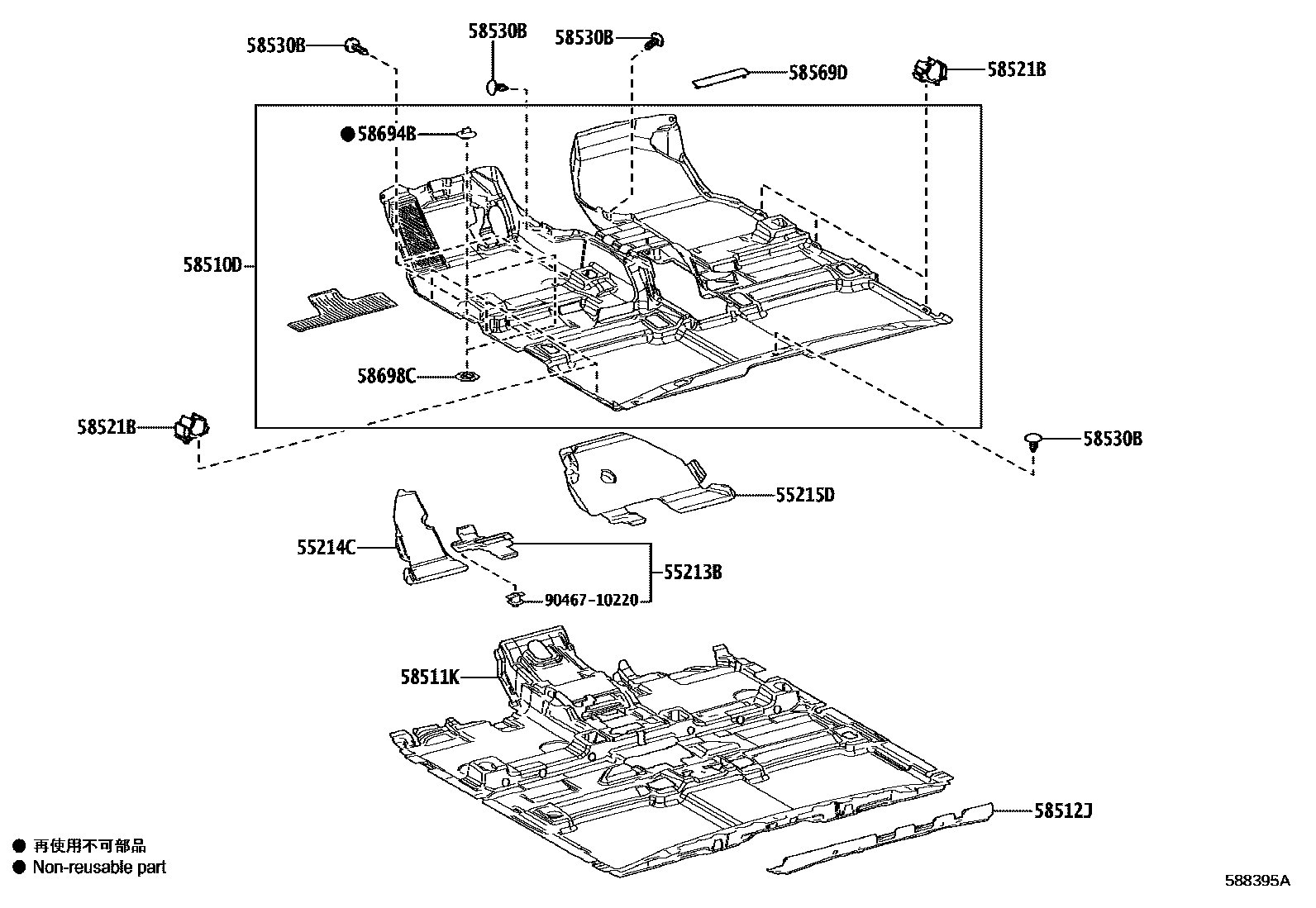

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM1#,2#
58511KMAT, FLOOR, NO.1
58512JMAT, FLOOR, NO.2
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM1#,2#
BLACK,TRIM2#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710220
12 parts on this diagram · 2 diagrams in section
