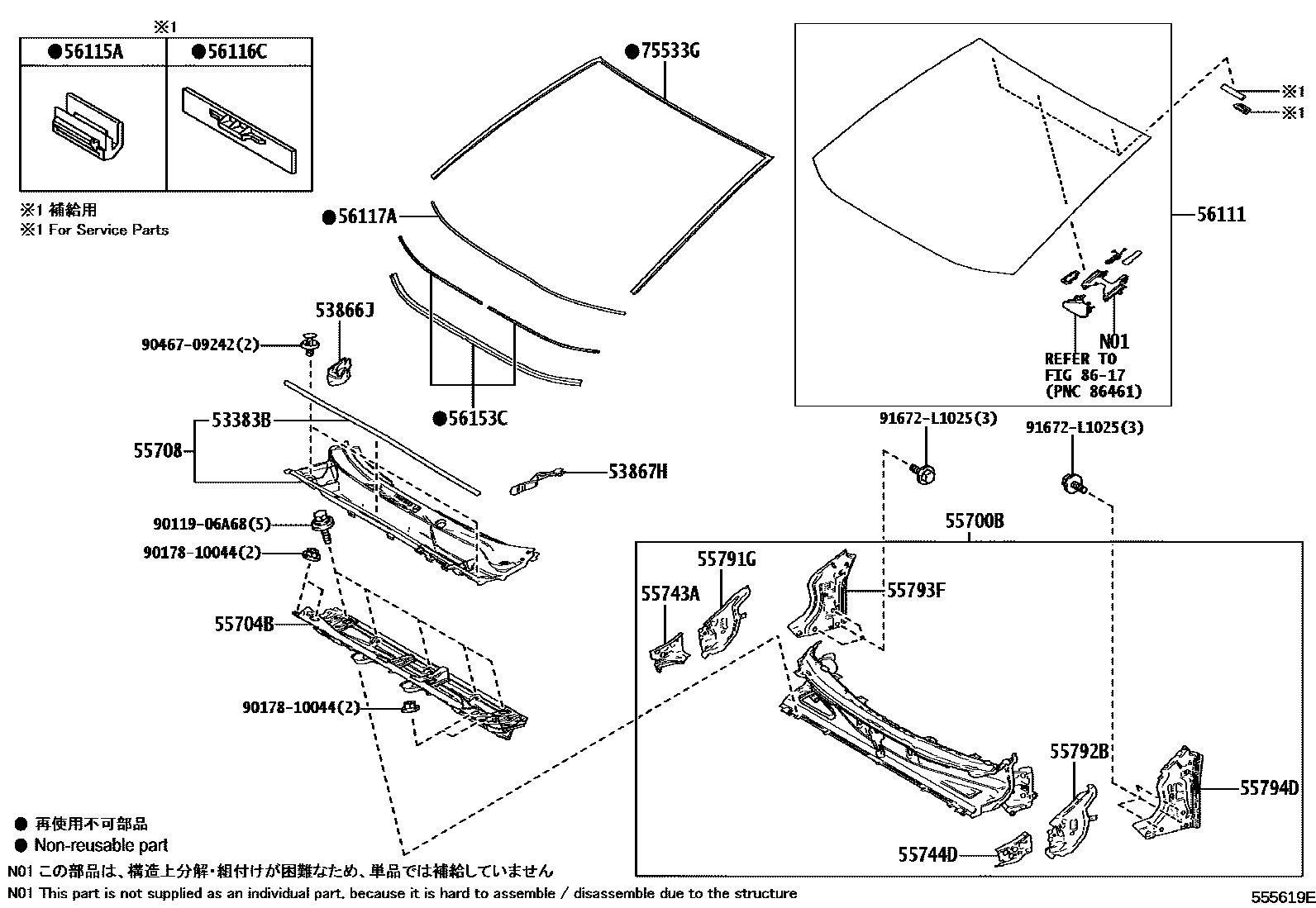

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383BSEAL, HOOD TO COWL TOP

main53383-42060iXEAM10,YEAM15202203-202411

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-42050iXEAM10,YEAM15..LHD202203-202311

sub53866-42051

main53866-42051iXEAM10,YEAM15..LHD202312-202411

main53866-42060iYEAM15..RHD..M;XEAM10,YEAM15..ARL202203-202312

sub53866-42061

main53866-42061iXEAM10,YEAM15..RHD202312-202411

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-42050iXEAM10,YEAM15..LHD202203-202311

sub53867-42051

main53867-42051iXEAM10,YEAM15..LHD202312-202411

main53867-42060iXEAM10..RHD;YEAM15..RHD..(H,P)202203-202312

sub53867-42061

main53867-42061iXEAM10,YEAM15..RHD202312-202411

55700BCOWL ASSY

main55700-42520iXEAM10,YEAM15..LHD202203-202411

main55700-42530iXEAM10,YEAM15..RHD202203-202411

55704BPANEL SUB-ASSY, COWL VENTILATOR

main55704-42030iXEAM10,YEAM15..LHD202203-202411

main55704-42040iXEAM10,YEAM15..RHD202203-202411

55708LOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-42280iXEAM10,YEAM15..LHD202203-202411

main55708-42300iXEAM10,YEAM15..RHD202203-202411

55743AEXTENSION, COWL TO COWL SIDE, RH

main55743-42060iXEAM10,YEAM15202203-202411

55744DEXTENSION, COWL TO COWL SIDE, LH

main55744-42070iXEAM10,YEAM15202203-202411

55791GCOVER, COWL REINFORCEMENT, UPPER RH

main55791-42030iXEAM10,YEAM15202203-202411

55792BCOVER, COWL REINFORCEMENT, UPPER LH

main55792-42030iXEAM10,YEAM15202203-202411

55793FCOVER, COWL REINFORCEMENT, UPPER NO.2 RH

main55793-42030iXEAM10,YEAM15202203-202411

55794DCOVER, COWL REINFORCEMENT, UPPER NO.2 LH

main55794-42030iXEAM10,YEAM15202203-202411

56111GLASS, WINDSHIELD

main56101-42995iXEAM10,YEAM15..LHD..(M,P)202311-202411

main56101-42997iXEAM10,YEAM15..RHD..(M,P)..EUR202311-202411

WIPER DEICER(W/HEADLAMP CLEANER)

main56101-42997iXEAM10,YEAM15..RHD..(M,P)..EUR202311-202411

WIPER DEICER

main56101-4A902iXEAM10,YEAM15..LHD..H202311-202411

WINDSHIELD DEICER(W/HEADLAMP CLEANER)

main56101-4A903iXEAM10,YEAM15..RHD..(M,P)..EUR202311-202411

main56101-4A906iXEAM10,YEAM15..RHD202203-202311

main56101-4A907iXEAM10,YEAM15..ARL202311-202411

main56101-4A909iXEAM10,YEAM15..LHD202203-202311

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iXEAM10,YEAM15202203-202411

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iXEAM10,YEAM15202203-202411

56117ADAM, WINDOW GLASS ADHESIVE

main56117-50140iXEAM10,YEAM15202203-202411

*D,L=1417

main56117-50140iXEAM10,YEAM15202203-202411

*D,L=1417,WIPER DEICER

main56117-50140iXEAM10,YEAM15202203-202411

*D,L=1417,WIPER DEICER(W/HEADLAMP CLEANER)

main56117-50140iXEAM10,YEAM15202203-202411

*D,L=1417,WINDSHIELD DEICER(W/HEADLAMP CLEANER)

56153CMOULDING, FRONT WINDOW, INNER CENTER

main56153-42030iXEAM10,YEAM15202203-202411

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-42100iXEAM10,YEAM15202203-202411

8617

9011906A68

main90119-06A68

9017810044

main90178-10044

9046709242

main90467-09242

91672L1025

main91672-L1025

23 parts on this diagram · 2 diagrams in section
