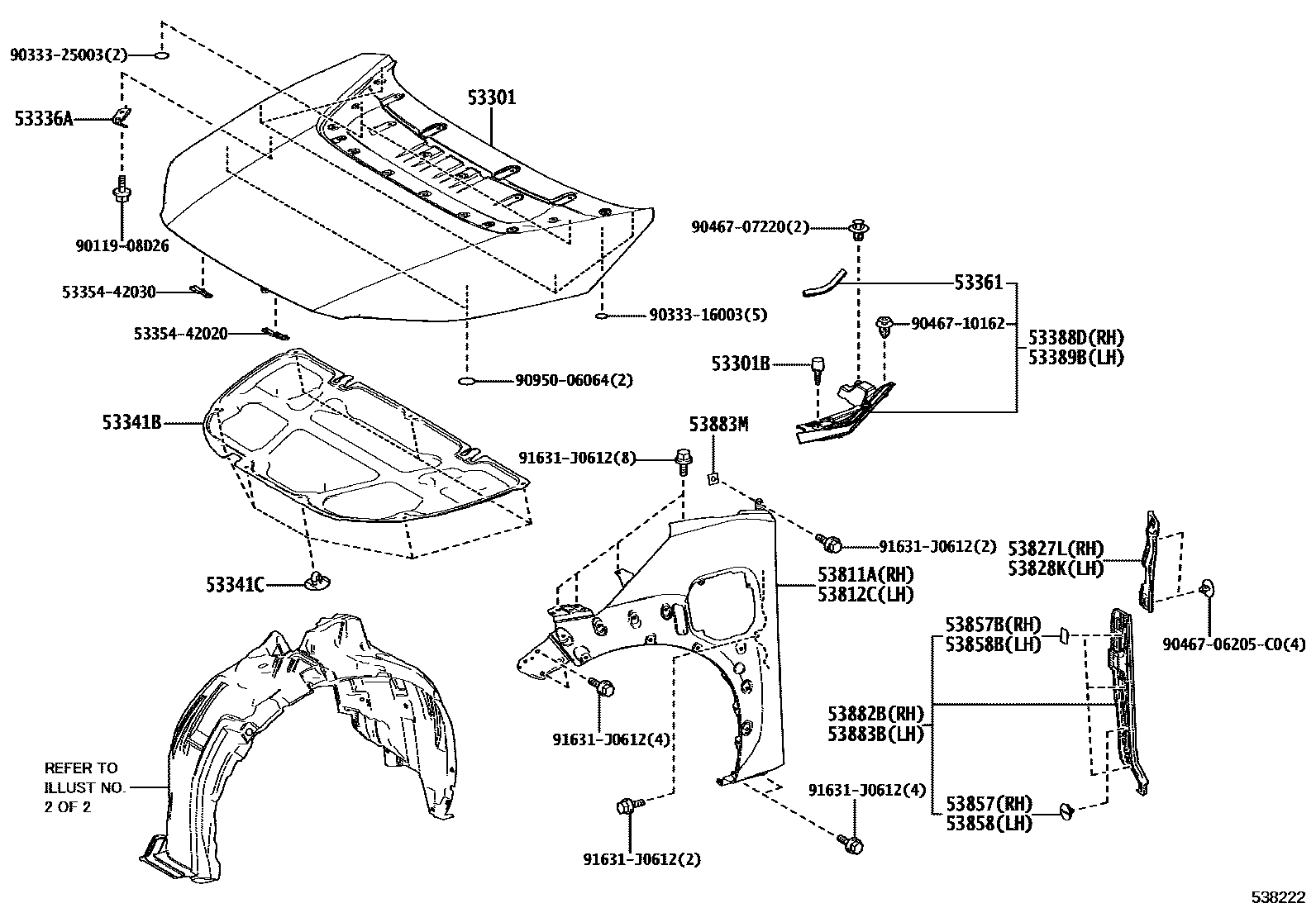

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53336ABRACKET, HOOD STAY
53341BINSULATOR, HOOD
53341CCLIP(FOR HOOD INSULATOR)
53361WEATHERSTRIP, HOOD
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882BSEAL, FRONT FENDER, RH
53883BSEAL, FRONT FENDER, LH
53883MSEAL, FRONT FENDER
5335442020GUSSET, HOOD REINFORCEMENT, LH
main53354-42020
5335442030GUSSET, HOOD REINFORCEMENT, LH
main53354-42030
9011908D26
main90119-08D26
9033316003
main90333-16003
9033325003
main90333-25003
9046706205C0
main90467-06205C0
9046707220
main90467-07220
9046710162
main90467-10162
9095006064
main90950-06064
91631J0612
main91631-J0612
29 parts on this diagram · 2 diagrams in section
