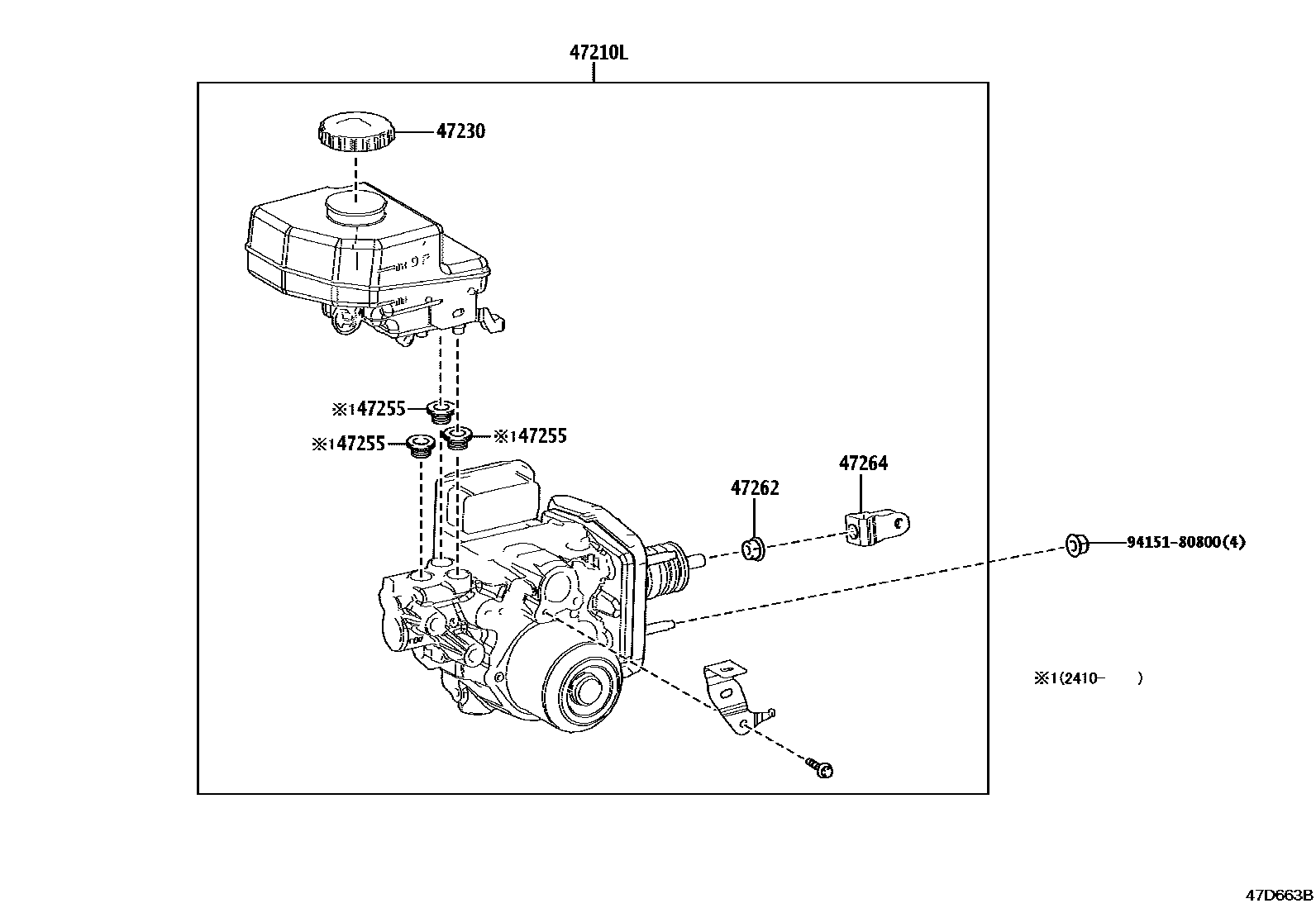

BRAKE MASTER CYLINDER

0001 1 0002 1

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-42280iXEAM10,YEAM15..RHD202203-202311

main47050-42290iXEAM10,YEAM15..LHD202203-202311

main47050-42430iXEAM10,YEAM15..RHD202311-202411

main47050-42440iXEAM10,YEAM15..LHD202311-202411

main47050-42620iXEAM10,YEAM15..RHD202412

main47050-42630iXEAM10,YEAM15..LHD202412

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iXEAM10,YEAM15202203-202411

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iXEAM10,YEAM15202412

47262NUT, MASTER CYLINDER PUSH ROD

main90179-10065iXEAM10,YEAM15202203-202411

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-42030iXEAM10,YEAM15202203-202411

9415180800

main94151-80800

6 parts on this diagram · 2 diagrams in section
