MIRROR

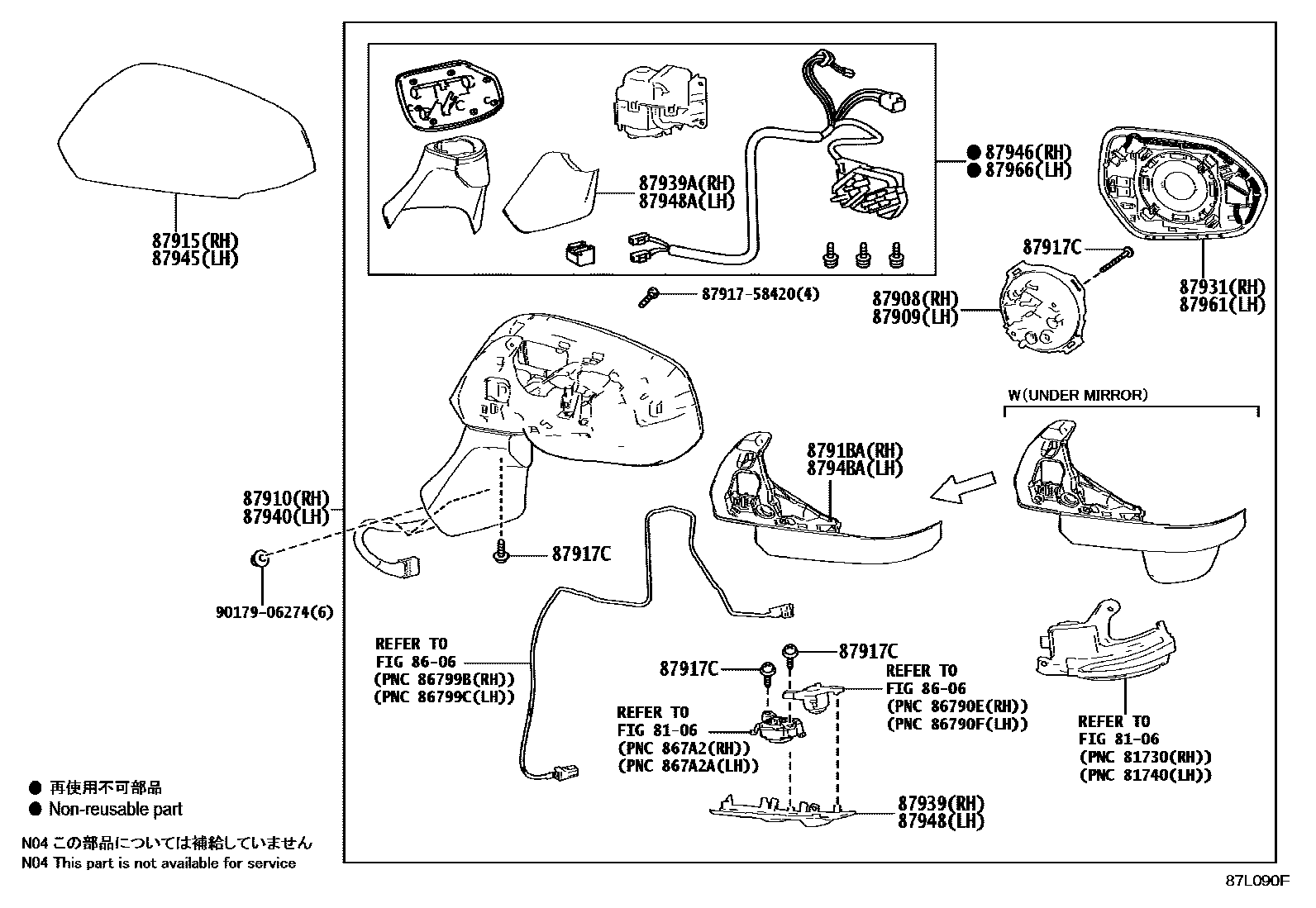

Parts diagram
8106
8606
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-42E71i202207
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87908-42E71i202207
87910MIRROR ASSY, OUTER REAR VIEW, RH
main87910-16A70supersedes 87910-16A90i202207
NO PAINT REQ.
main87910-16B00supersedes 87910-16B10i202401
NO PAINT REQ.
main87910-16B10supersedes 87910-16B40i202207
NO PAINT REQ.
main87910-16B20i202207
NO PAINT REQ.
main87910-16A60i202207
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87910-16B30i202211-202401
NO PAINT REQ.,HONG KONG SPEC&BACK MONITOR- WITH(*PVM)
87915COVER, OUTER MIRROR, RH
main87915-28100-A1i202207
PLATINUM WHITE PEARL MC.,089
main87915-28100-A2i202207
SUPER WHITE 2,040
main87915-28100-B2i202207
CEMENT GRAY ME.,1H5
main87915-28100-B3i202207
SILVER ME.,1L0
main87915-28100-C0i202207
ATTITUDE BLACK MC.,218 ,2PS ,2YD ,2YY ,M12
main87915-28100-D1i202207
RED MC.,3T3
main87915-28100-G0i202207
URBAN KHAKI,6X3
main87915-28100-J0i202207
DK.BLUE M.M.,8W7
87917CSCREW, OUTER MIRROR
main87917-15010×18i202207
8791BACOVER, OUTER MIRROR, RH NO.3
main8791B-28C70i202207
main8791B-28D00supersedes 8791B-28C70i202207
BACK MONITOR- WITH(*PVM)
87931OUTER MIRROR, RH
main87931-16A70supersedes 87931-16A90i202207
BLIND SPOT MONITOR-WITH
87939COVER, OUTER MIRROR HOLE, RH
main87939-16A60i202401
main87939-28D00i202207
BACK MONITOR-WITH(*PVM)
87939ACOVER, OUTER MIRROR HOLE, RH
main87939-16A30i202207
main87939-16A90i202207
87940MIRROR ASSY, OUTER REAR VIEW, LH
main87940-16A60supersedes 87940-16A80i202207
NO PAINT REQ.
main87940-16A90supersedes 87940-16B00i202401
NO PAINT REQ.
main87940-16B00supersedes 87940-16B30i202207
NO PAINT REQ.
main87940-16B10i202207
NO PAINT REQ.
main87940-16A50i202207
NO PAINT REQ.,BACK MONITOR-WITH(*PVM)
main87940-16B20i202211-202401
NO PAINT REQ.,HONG KONG SPEC&BACK MONITOR- WITH(*PVM)
87945COVER, OUTER MIRROR, LH
main87945-28100-A1i202207
PLATINUM WHITE PEARL MC.,089
main87945-28100-A2i202207
SUPER WHITE 2,040
main87945-28100-B2i202207
CEMENT GRAY ME.,1H5
main87945-28100-B3i202207
SILVER ME.,1L0
main87945-28100-C0i202207
ATTITUDE BLACK MC.,218 ,2PS ,2YD ,2YY ,M12
main87945-28100-D1i202207
RED MC.,3T3
main87945-28100-G0i202207
URBAN KHAKI,6X3
main87945-28100-J0i202207
DK.BLUE M.M.,8W7
87946RETRACTOR, OUTER MIRROR, RH
main87946-16A00supersedes 87946-16A10i202401
main87946-16A10supersedes 87946-16A30i202207
BLIND SPOT MONITOR-WITH
main87946-16A70supersedes 87946-16A90i202207
BLIND SPOT MONITOR-WITH
main87946-16B20i202207
main87946-16A60i202207
BACK MONITOR-WITH(*PVM)
main87946-16B30i202211
HONG KONG SPEC&BACK MONITOR- WITH(*PVM)
87948COVER, OUTER MIRROR HOLE, LH
main87948-16A50i202401
main87948-28D40i202207
BACK MONITOR-WITH(*PVM)
87948ACOVER, OUTER MIRROR HOLE, LH
main87948-16A30i202207
main87948-16A80i202207
8794BACOVER, OUTER MIRROR, LH NO.3
main8794B-16A80i202207
main8794B-28D40supersedes 8794B-16A80i202207
BACK MONITOR- WITH(*PVM)
87961MIRROR OUTER, LH
main87961-16A60supersedes 87961-16A80i202207
BLIND SPOT MONITOR-WITH
87966RETRACTOR, OUTER MIRROR, LH
main87966-16A00supersedes 87966-16A10i202401
main87966-16A10supersedes 87966-16A30i202207
BLIND SPOT MONITOR-WITH
main87966-16A60supersedes 87966-16A80i202207
BLIND SPOT MONITOR-WITH
main87966-16B10i202207
main87966-16A50i202207
BACK MONITOR-WITH(*PVM)
main87966-16B20i202211
HONG KONG SPEC&BACK MONITOR- WITH(*PVM)
8791758420ESCUTCHEON
main87917-58420
9017906274
main90179-06274

21 parts on this diagram · 2 diagrams in section
