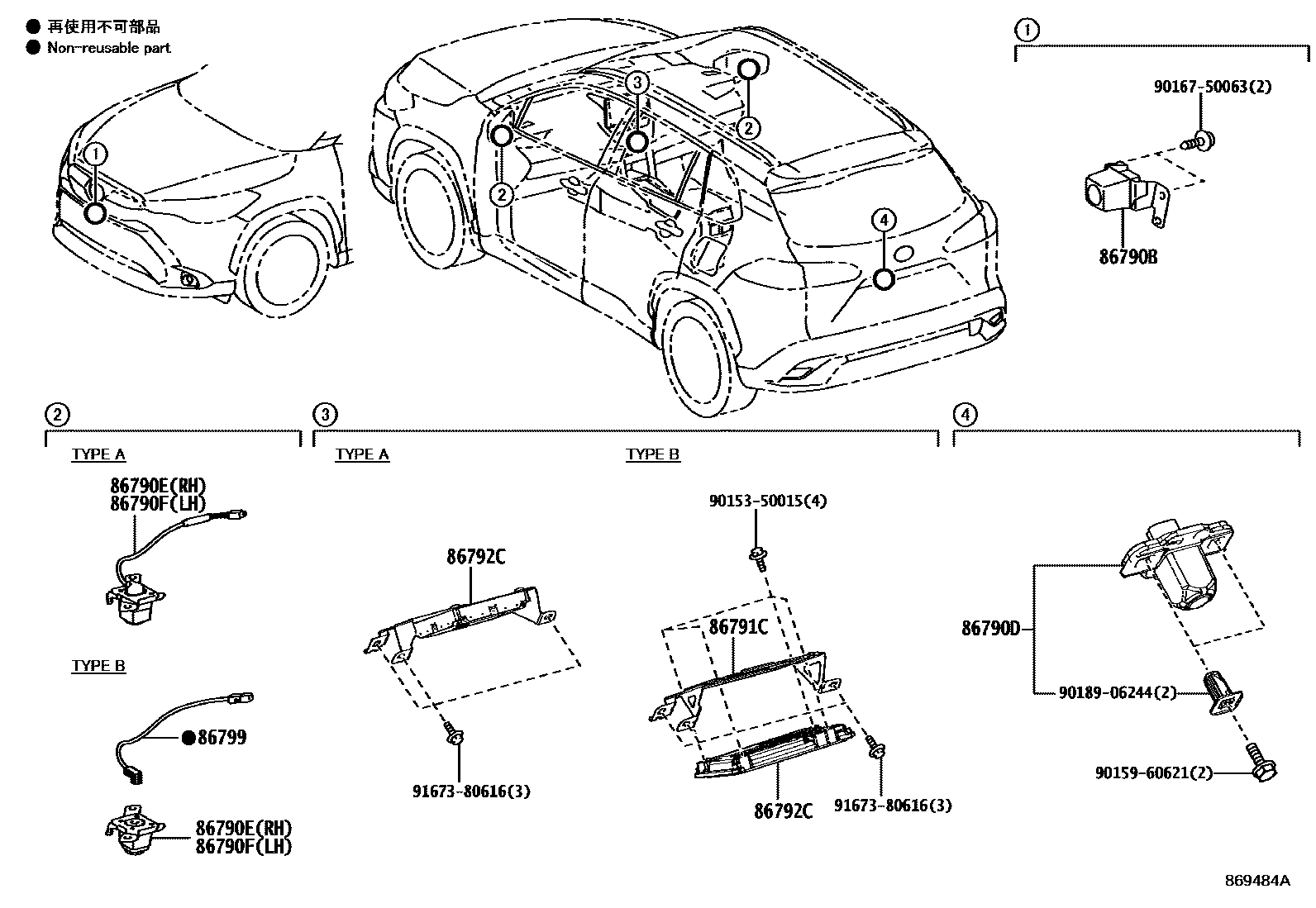

CAMERA & REAR MONITOR DISPLAY

86790BCAMERA ASSY, TELEVISION, FR

main86790-16080iMXGH10,15..E..ARL202207

BACK MONITOR-WITH(*PVM)

main86790-16090iMXGA10..E,N202401

86790DCAMERA ASSY, TELEVISION, RR

main86790-16060iMXGH12,15..LHD..E202207

BACK MONITOR-WITH(*PVM)

main86790-16070iMXGA10..E,N202401

main867B0-16030iMXGH15..EUR;MXGA10,MXGH12,ZVG12;MXGH10,15..(J,N)..ARL202207-202303

sub867B0-16031

main867B0-16031iMXGH15..EUR;MXGA10,MXGH12,ZVG1#;MXGH10,15..(J,N)..ARL202303-202401

main867B0-16040iMXGA10..J;MXGH15..N..ARL;MXGH10,ZVG13..G,J,N;MXGH12,15,ZVG12..EUR202401

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86790-16110iMXGA10..E,N202401

TYPE A:REFER ILLUST.

main86790-28460iMXGH12,15..LHD..E202207

BACK MONITOR-WITH(*PVM),TYPE B:REFER ILLUST.

main86790-28460iMXGH12,15..LHD..E202207

TYPE B:REFER ILLUST.

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86790-16100iMXGA10..E,N202401

TYPE A:REFER ILLUST.

main86790-28450iMXGH10,15..E..ARL202207

BACK MONITOR-WITH(*PVM),TYPE B:REFER ILLUST.

main86790-28450iMXGH10,15..E..ARL202207

TYPE B:REFER ILLUST.

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-16010iMXGH10,15..E..ARL202207

TYPE B:REFER ILLUST.

main86791-16010iMXGH10,15..E..ARL202207

BACK MONITOR-WITH(*PVM),TYPE B:REFER ILLUST.

86792CCOMPUTER, PARKING ASSIST

main86792-16040iMXGA10..E,N202401

TYPE A:REFER ILLUST.

main86792-16060iMXGH10,15..E..ARL202207-202401

TYPE B:REFER ILLUST.

sub86792-16061

main86792-16062iMXGH10,15..E..ARL202401

TYPE B:REFER ILLUST.

86799WIRE, TELEVISION CAMERA

main86799-16010iMXGH10,15..E..ARL202207

TYPE B:REFER ILLUST.

main86799-16010iMXGH10,15..E..ARL202207

BACK MONITOR-WITH(*PVM),TYPE B:REFER ILLUST.

9015350015

main90153-50015

9015960621

main90159-60621

9016750063

main90167-50063

9018906244

main90189-06244

9167380616

main91673-80616

12 parts on this diagram · 1 diagram in section
