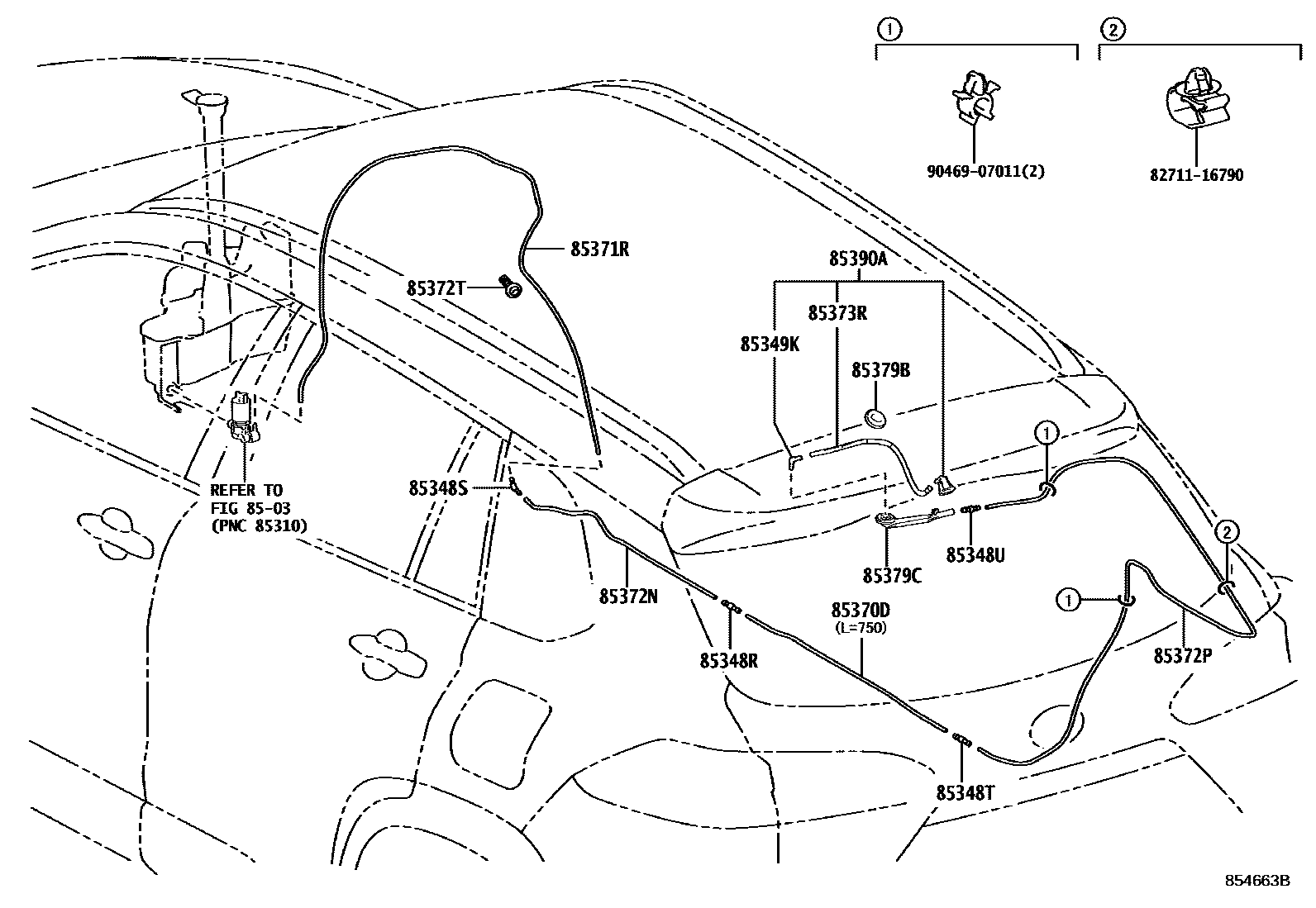

REAR WASHER
8503
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85370DHOSE ASSY, REAR WASHER, NO.1
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
*H,L=1750
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
*H,L=660
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
*H,L=2470
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
*H,L=280
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
85390ANOZZLE & HOSE ASSY, RR WASHER
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
9046907011
main90469-07011
17 parts on this diagram · 1 diagram in section
