AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-16180iMXGA10,MXGH1#,ZVG1#202207-202304

*614,MARK89170-16180

main89170-16220iMXGA10,MXGH1#,ZVG1#202304-202401

*614,MARK89170-16220

main89170-16230iMXGA10,MXGH1#,ZVG1#202401

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iMXGA10,MXGH1#,ZVG1#202207

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iMXGA10,MXGH1#,ZVG1#202207

89831SENSOR, SIDE AIRBAG, RH, NO.1

main89831-42020iMXGA10,MXGH1#,ZVG1#202207-202304

MARK=89831-42020

main89831-47050iMXGA10,MXGH1#,ZVG1#202304

MARK=89831-47050

89831ASENSOR, SIDE AIRBAG, LH, NO.1

main89831-42020iMXGA10,MXGH1#,ZVG1#202207-202304

MARK=89831-42020

main89831-47050iMXGA10,MXGH1#,ZVG1#202304

MARK=89831-47050

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iMXGA10,MXGH1#,ZVG1#202401

main8983A-52011iMXGA10,MXGH1#,ZVG1#202207-202401

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iMXGA10,MXGH1#,ZVG1#202401

main8983A-52011iMXGA10,MXGH1#,ZVG1#202207-202401

9011908C89

main90119-08C89

91553A0620

main91553-A0620

9415180600

main94151-80600

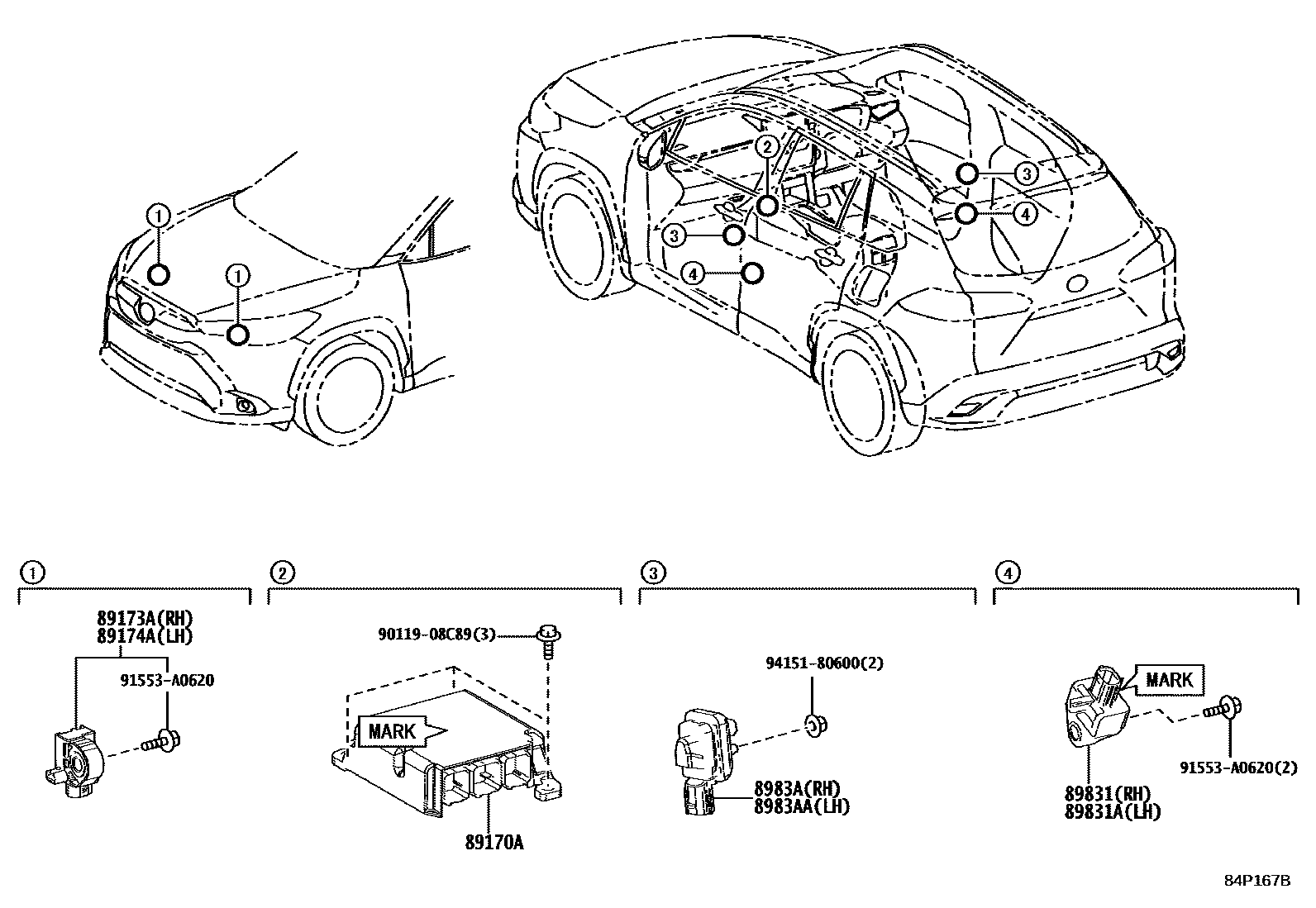

10 parts on this diagram · 1 diagram in section
