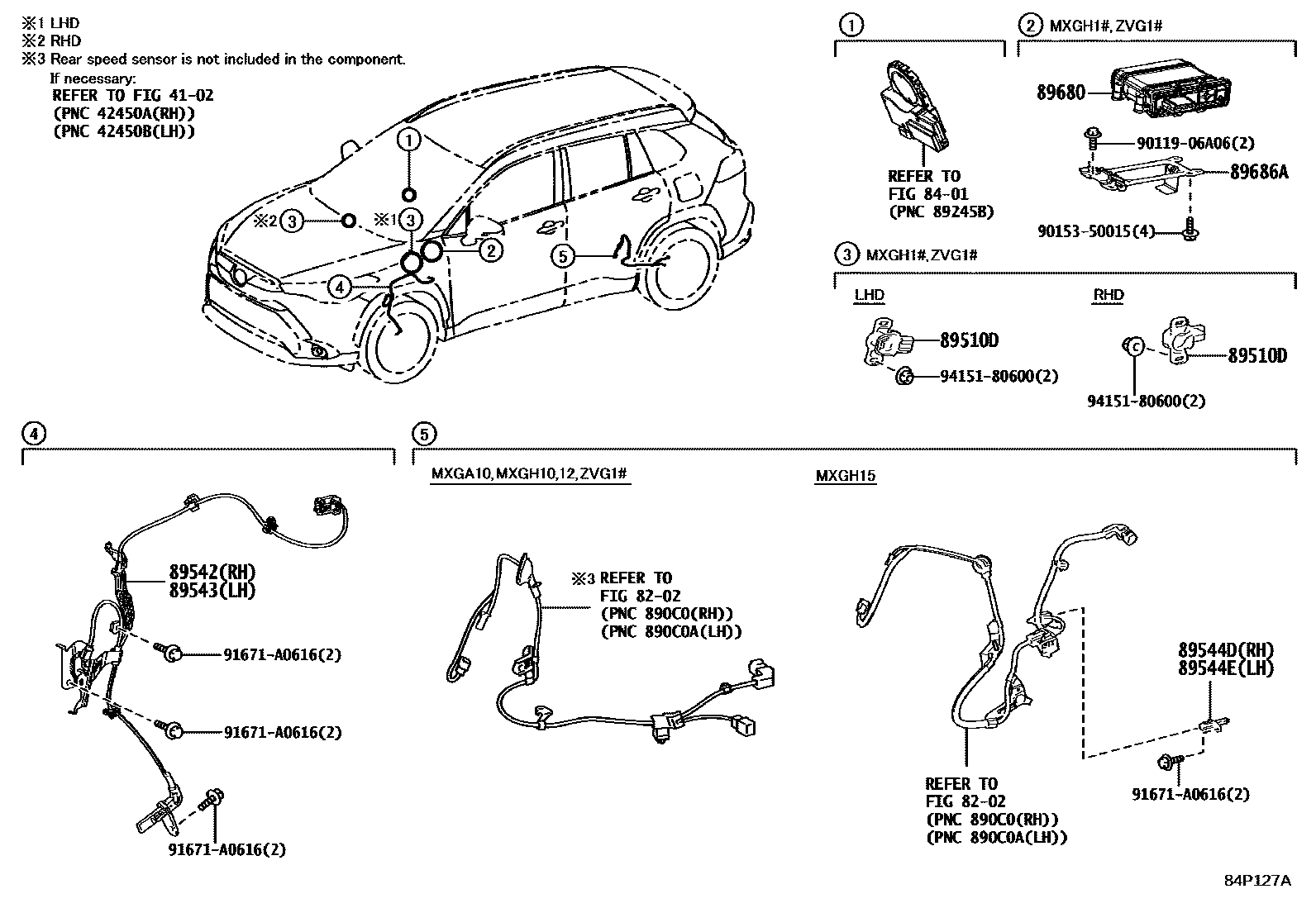

ABS & VSC

4102

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iMXGH12,15,ZVG12..LHD202207-202301

main89510-42020iMXGH1#..RHD202207-202301

main89510-47030iMXGH1#,ZVG13..RHD202301

main89510-47040iMXGH12,15,ZVG1#..LHD202301

89542SENSOR, SPEED, FRONT RH

main89542-12150iMXGA10,MXGH1#,ZVG1#202207

89543SENSOR, SPEED, FRONT LH

main89543-12150iMXGA10,MXGH1#,ZVG1#202207

89544DSENSOR, SKID CONTROL, REAR RH

main89544-52050iMXGH15202207

89544ESENSOR, SKID CONTROL, REAR LH

main89544-52050iMXGH15202207

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iMXGH1#,ZVG1#202207

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-12010iMXGH1#,ZVG1#202207

9011906A06

main90119-06A06

9015350015

main90153-50015

91671A0616

main91671-A0616

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
