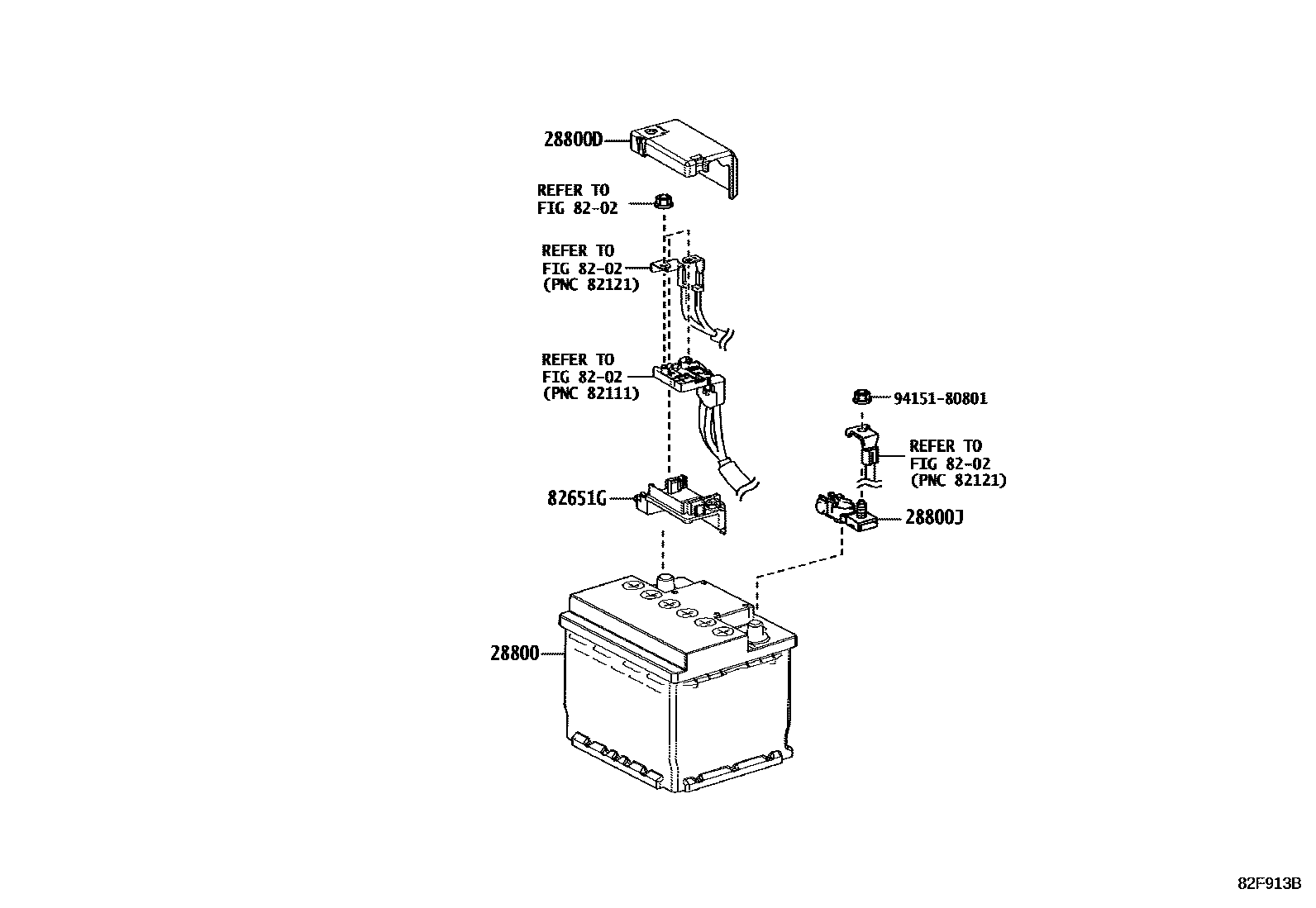

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-21221iM20AFXS..MXGH1#202207-202302

LN1

main28800-21222iM20AFXS..MXGH1#202303-202403

LN1

main28800-21223iM20AFXS..MXGH1#202404

LN1

main28800-25011iM20AFKS..MXGA10202207-202302

LN2

main28800-25012iM20AFKS..MXGA10202303-202403

LN2

main28800-25013iM20AFKS..MXGA10202404

LN2

main28800-37190i2ZRFXE..ZVG12202207-202208

LN1

main28800-37191i2ZRFXE..ZVG1#202209-202403

LN1

main28800-37192i2ZRFXE..ZVG1#202404

LN1

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-12040iM20AFKS..MXGA10202207

main82621-16040iM20AFXS..MXGH1#202207

main82821-78140i2ZRFXE..ZVG1#202207

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070iM20AFKS..MXGA10202207

8202

82651GTERMINAL, BATTERY POSITIVE

main82651-10010iMXGA10202207

9415180801

main94151-80801

6 parts on this diagram · 5 diagrams in section
