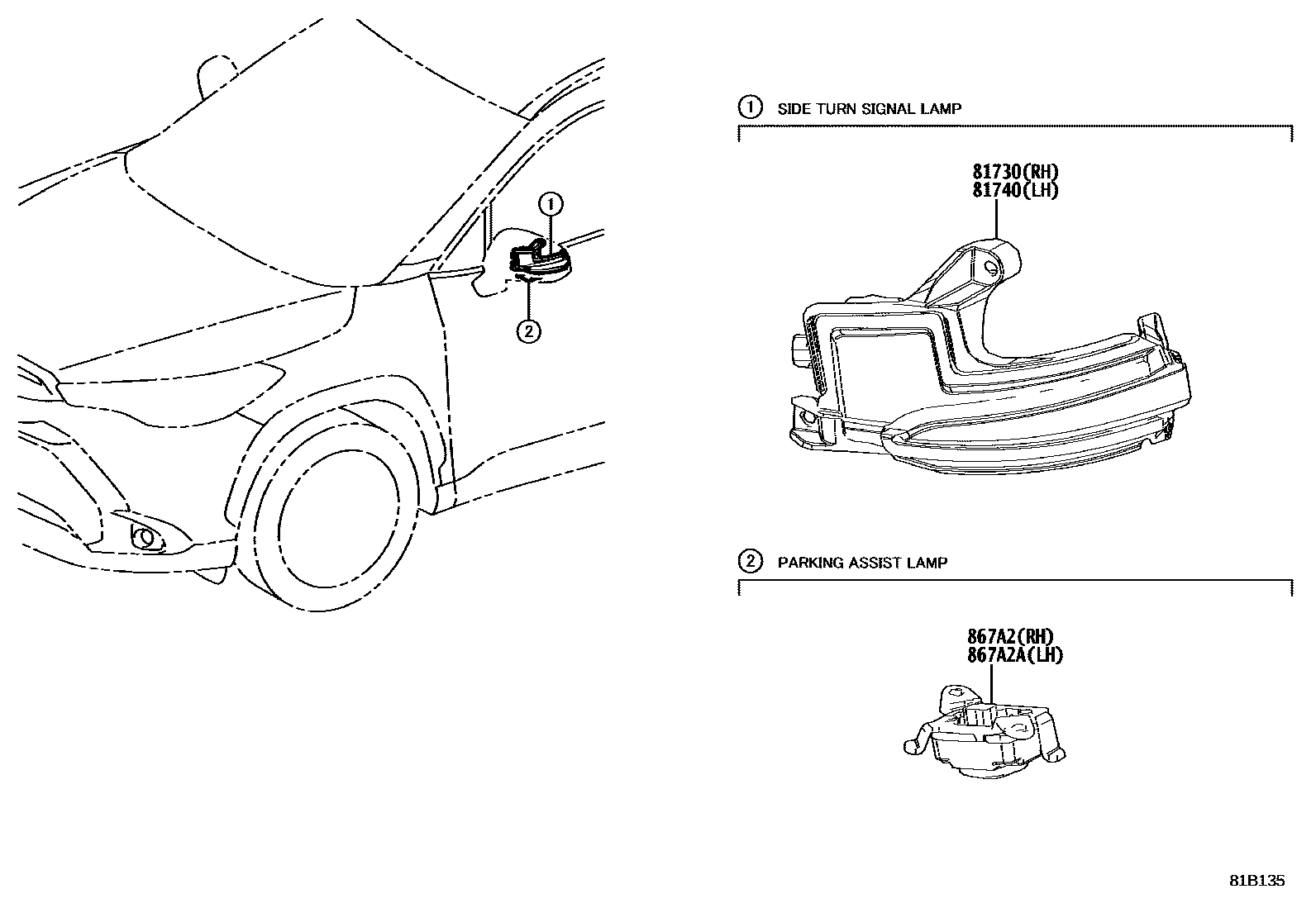

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-28020iMXGA10,MXGH1#,ZVG1#202207

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-28020iMXGA10,MXGH1#,ZVG1#202207

867A2LIGHT, PARKING ASSIST, RH

main867A2-28010iMXGH10,15..E..ARL202207-202304

BACK MONITOR-WITH(*PVM)

sub867A2-42030

main867A2-42030iMXGH10,15..E..ARL202305

BACK MONITOR-WITH(*PVM)

867A2ALIGHT, PARKING ASSIST, LH

main867A2-28020iMXGH10,15..E..ARL202207-202304

BACK MONITOR-WITH(*PVM)

sub867A2-42040

main867A2-42040iMXGH10,15..E..ARL202305

BACK MONITOR-WITH(*PVM)

4 parts on this diagram · 1 diagram in section
