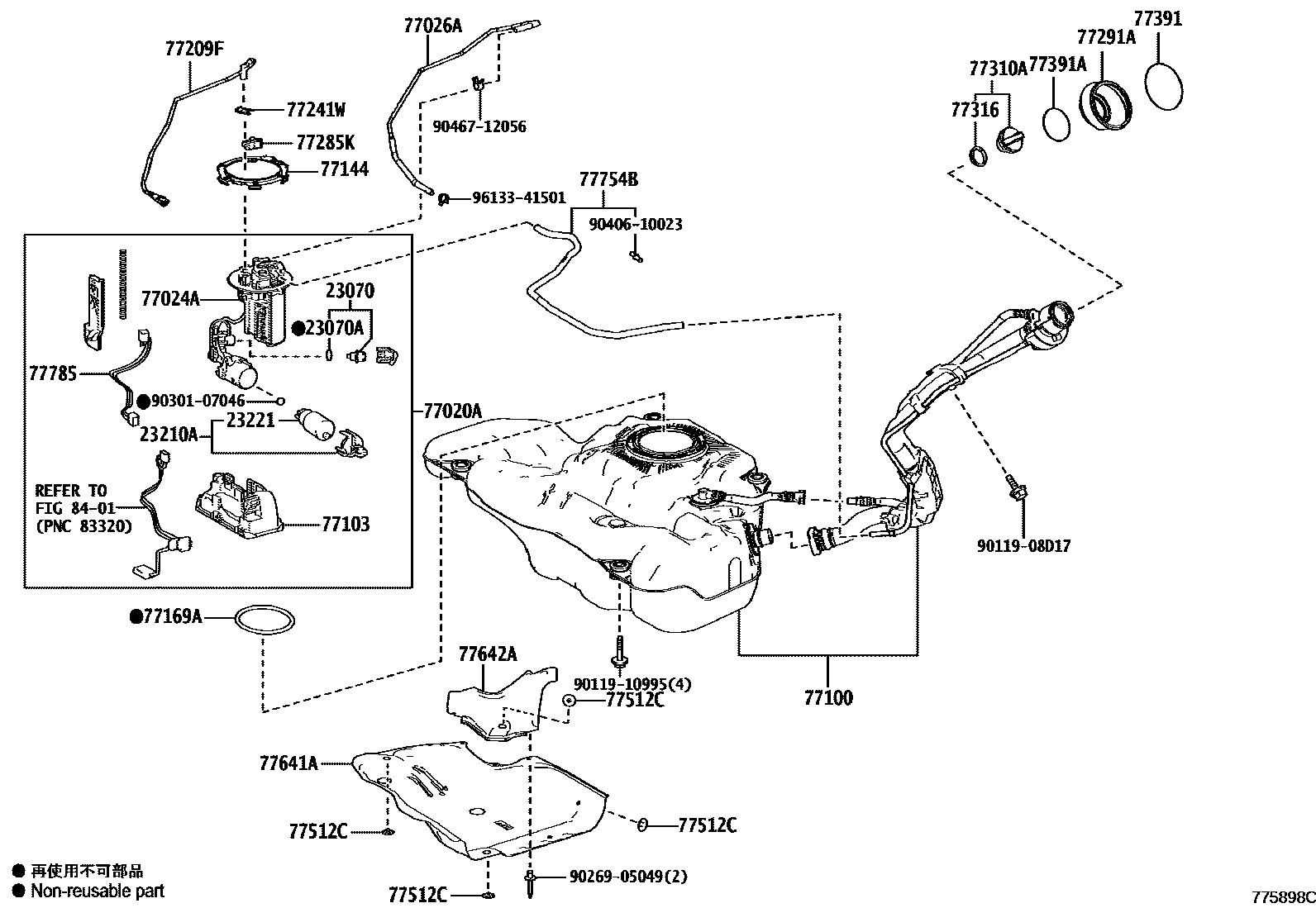

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL TUBE 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL LID OPENER 0011 1FUEL LID OPENER

23070VALVE ASSY, FUEL MAIN

main23070-24010iM20#..MXGA10,MXGH1#202207

23070ARING, O, NO.1(FOR FUEL MAIN VALVE)

main90301-15024iM20#..MXGA10,MXGH1#202207

23210APUMP ASSY, FUEL W/MOTOR & BRACKET

main23210-24010iM20#..MXGA10,MXGH1#202207

23221PUMP, FUEL

main23210-37020i2ZRFXE..ZVG1#202207

main23221-24010iM20#..MXGA10,MXGH1#202207

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-12A60iZVG12202207

main77020-12B30iMXGA10202207

main77020-16240iZVG13202303

main77020-16260iMXGH10202207

main77020-76040iMXGH12,15202207

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-10020iZVG12202207

main77024-12380iMXGA10,MXGH1#202207

main77024-16070iZVG13202303

77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-12070iMXGA10202207

main77026-16010iMXGH10,ZVG13202207

main77026-47040iMXGH12,15,ZVG12202207

77100TANK ASSY, FUEL

main77001-16330iMXGA10202207

main77001-16340iMXGH10,ZVG13202207

main77001-16350iMXGH12,15,ZVG12202207

77103SUB-TANK SUB-ASSY, FUEL

main77103-12130iZVG12202207

main77103-12140iZVG13202303

main77103-12170iMXGH10202207

main77103-42090iMXGA10,MXGH12,15202207

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXGA10,MXGH1#,ZVG1#202207

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iMXGA10,MXGH10,ZVG13202207

main77169-47040iMXGH12,15,ZVG12202207

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-12390iMXGA10202305

main77209-12400iMXGA10202207-202305

sub77209-12390

main77209-16100iMXGH10,ZVG13202207

main77209-76050iMXGH12,15,ZVG12202207

77241WCLIP, TUBE JOINT

main77241-60550iMXGA10,MXGH1#,ZVG1#202207

77285KCLAMP, FUEL TUBE, NO.1

main77285-16160iMXGH10,ZVG13202207

main77285-30350iMXGA10,MXGH12,15,ZVG12202207

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-16130iMXGA10,MXGH1#,ZVG1#202207

77310ACAP ASSY, FUEL TANK

main77300-12020iMXGA10,MXGH1#,ZVG1#202207

77316GASKET, FUEL TANK CAP

main77316-52040iMXGA10,MXGH1#,ZVG1#202207

77391RING, FUEL INLET BOX

main77391-42010iMXGA10,MXGH1#,ZVG1#202207

77391ARING, FUEL INLET BOX

main77391-12020iMXGA10,MXGH1#,ZVG1#202207

77512CBRACKET, FUEL TANK

main77512-35140iMXGH10,ZVG13202207

77641APROTECTOR, FUEL TANK, NO.1

main77641-16040iMXGA10202207

main77641-16050iMXGH10,ZVG13202207

main77641-47070iMXGH12,15,ZVG12202207

77642APROTECTOR, FUEL TANK, NO.2

main77642-16020iMXGA10202207

main77642-16030iMXGH10,ZVG13202207

77754BHOSE, CHARCOAL CANISTER OUTLET

main77754-16090iMXGH10,ZVG13202207

main77754-16100iMXGA10202207

main77754-16120iMXGH12,15,ZVG12202401

main77754-47090iMXGH12,15,ZVG12202207-202312

77785HARNESS, FUEL PUMP

main77785-12010iZVG12202207

main77785-52141iZVG13202303

main77785-76010iMXGA10,MXGH1#202207

8401

9011908D17

main90119-08D17

9011910995

main90119-10995

9026905049

main90269-05049

9030107046

main90301-07046

9040610023

main90406-10023

9046712056

main90467-12056

9613341501

main96133-41501

32 parts on this diagram · 11 diagrams in section
