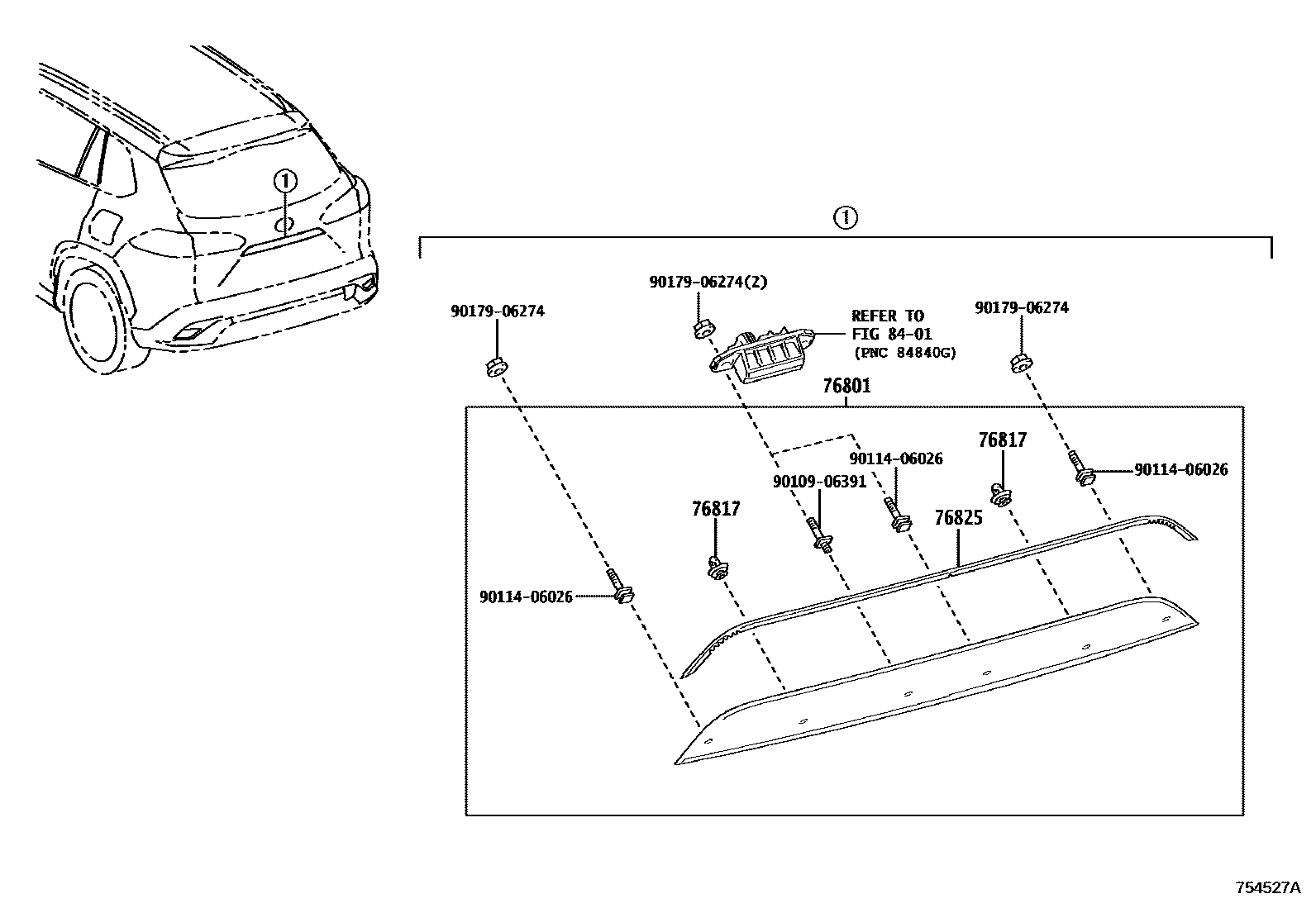

REAR MOULDING

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-16300-A0iMXGA10,MXGH1#,ZVG12..E,G202207

PLATINUM WHITE PEARL MC.,089 ,2PS

main76801-16300-A0iMXGA10,MXGH1#,ZVG12..E,G202207

PLATINUM WHITE PEARL MC.,089

main76801-16300-A1iMXGA10,MXGH1#,ZVG1#202207

SUPER WHITE 2,040

main76801-16300-B1iMXGA10,MXGH1#,ZVG12..E,G202207

CEMENT GRAY ME.,1H5 ,2YY

main76801-16300-B1iMXGA10,MXGH1#,ZVG12..E,G202207

CEMENT GRAY ME.,1H5

main76801-16300-B3iMXGA10,MXGH1#,ZVG12..E,G202207

SILVER ME.,1L0 ,M12

main76801-16300-B3iMXGA10,MXGH1#,ZVG12..E,G202207

SILVER ME.,1L0

main76801-16300-C2iMXGA10,MXGH1#,ZVG1#202207

ATTITUDE BLACK MC.,218

main76801-16300-D1iMXGA10,MXGH1#,ZVG12..E,G202207

RED MC.,2YD ,3T3

main76801-16300-D1iMXGA10,MXGH1#,ZVG12..E,G202207

RED MC.,3T3

main76801-16300-G0iMXGA10,MXGH1#,ZVG1#202207

URBAN KHAKI,6X3

main76801-16300-J0iMXGA10,MXGH1#,ZVG1#202207

DK.BLUE M.M.,8W7

76817CLIP, BACK DOOR OUTSIDE GARNISH

main90467-09206iMXGA10,MXGH1#,ZVG1#202207

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-16010iMXGA10,MXGH1#,ZVG1#202207

8401

9010906391

main90109-06391

9011406026

main90114-06026

9017906274

main90179-06274

7 parts on this diagram · 1 diagram in section
