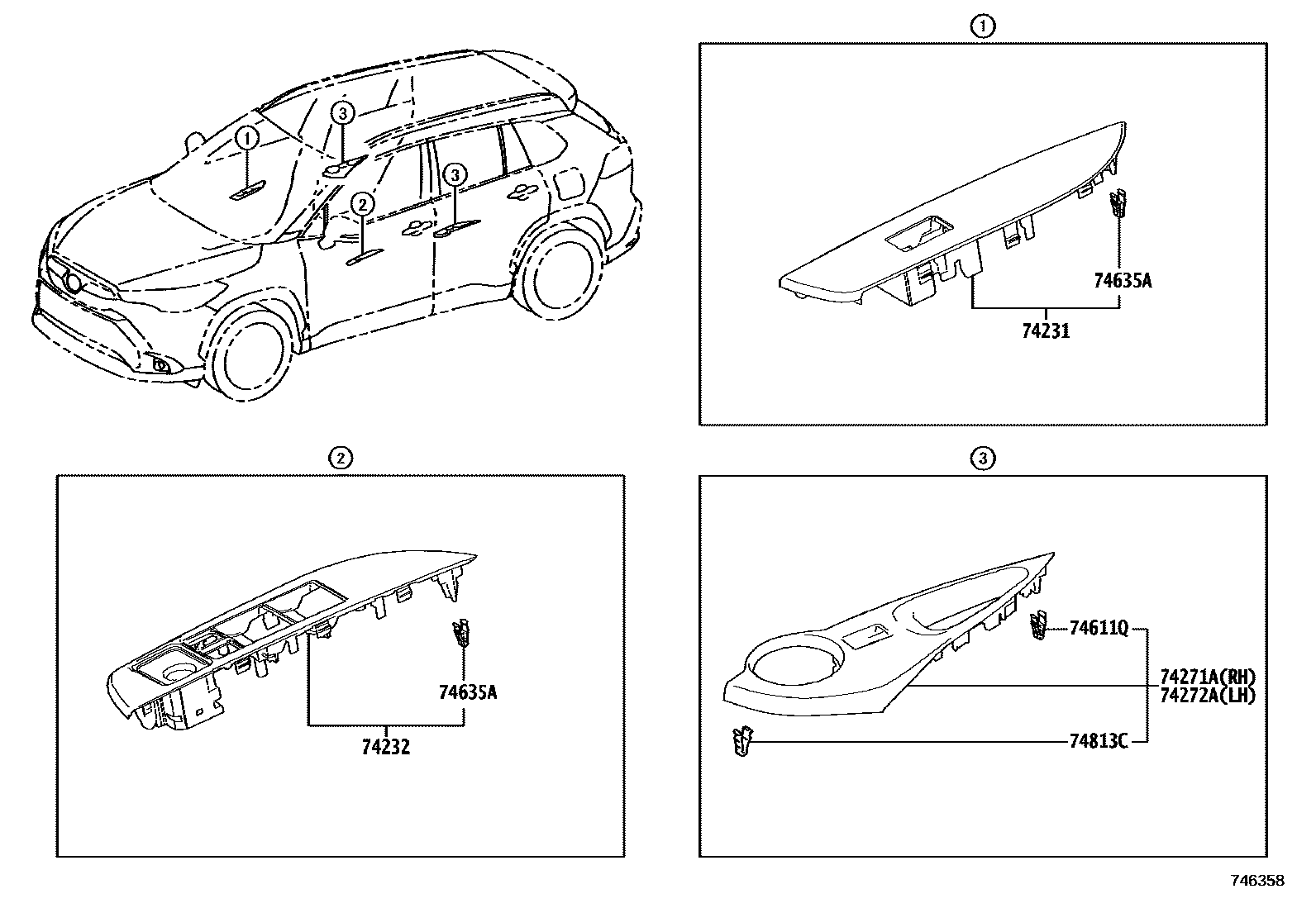

ARMREST & VISOR

0001 1ARMREST 0002 1ARMREST 0003 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-12D60iMXGH12,15,ZVG1#..LHD202207

main74231-12E30iMXGA10,MXGH1#,ZVG13..RHD202207

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-12B00iMXGA10,MXGH1#,ZVG13..RHD202207

main74232-16090iMXGH12,15,ZVG1#..LHD202207

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-16010iMXGA10,MXGH1#,ZVG1#202207

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-16010iMXGA10,MXGH1#,ZVG1#202207

74611QCLIP

main90467-10203×2iMXGA10,MXGH1#,ZVG1#202207

74635ACLIP

main90467-10203×2iMXGA10,MXGH1#,ZVG1#202207

74813CCLIP

main90467-12080×2iMXGA10,MXGH1#,ZVG1#202207

7 parts on this diagram · 3 diagrams in section
