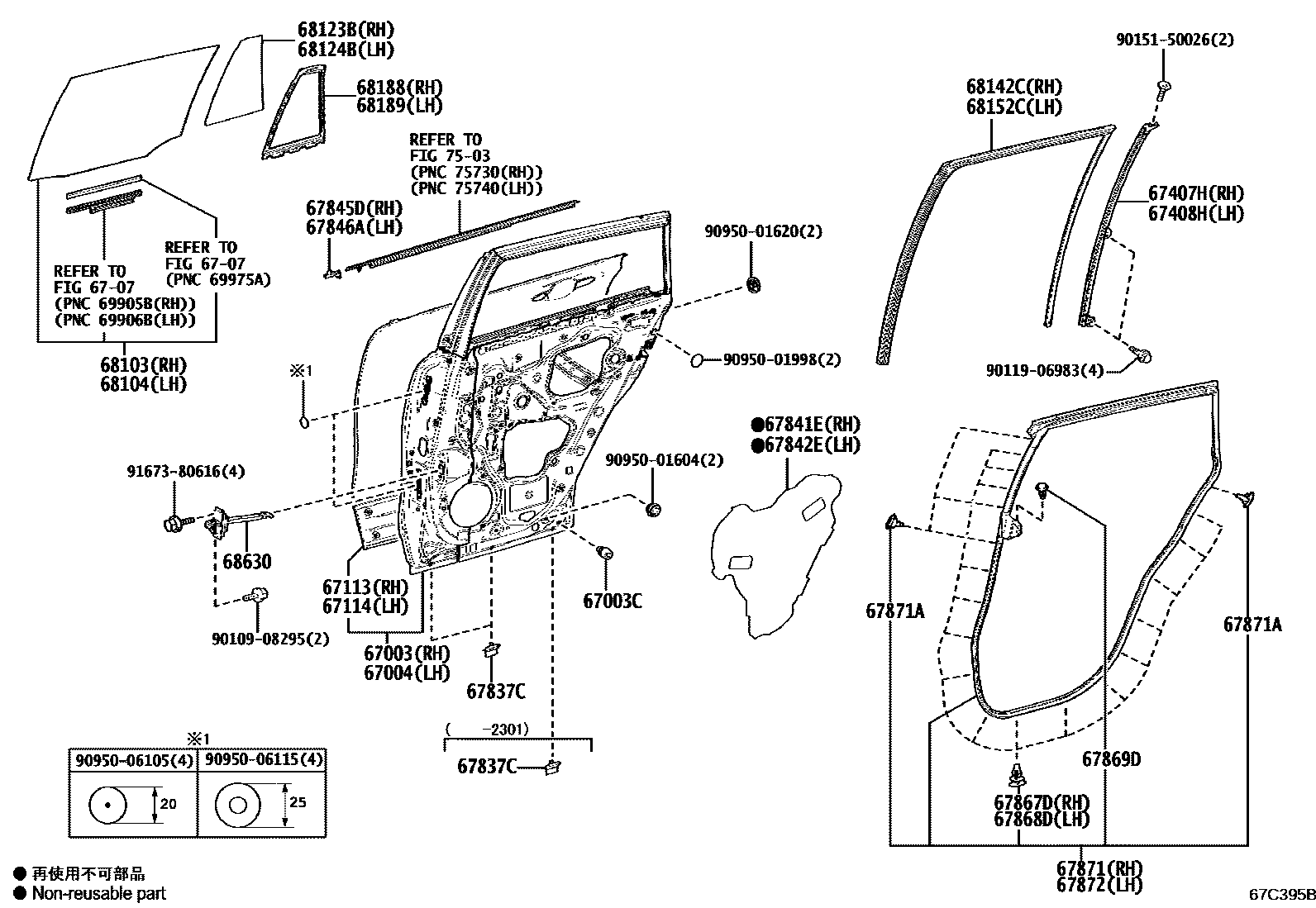

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-16280iMXGA10,MXGH1#,ZVG1#202207

67003CCUSHION, REAR DOOR PANEL

main90541-09124iMXGA10,MXGH1#,ZVG1#202207

BLACK/NATURAL

main90541-09143iMXGA10,MXGH1#,ZVG1#202207

BLACK/YELLOW

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-16280iMXGA10,MXGH1#,ZVG1#202207

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-16110iMXGA10,MXGH1#,ZVG1#202207

67114PANEL, REAR DOOR, OUTER LH

main67114-16110iMXGA10,MXGH1#,ZVG1#202207

67407HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, RH

main67407-16090iMXGA10,MXGH1#,ZVG1#202207

67408HBAR SUB-ASSY, SLIDE DOOR WINDOW DIVISION, LH

main67408-16090iMXGA10,MXGH1#,ZVG1#202207

67837CSEAL, REAR DOOR DUST PROOF

main67837-47060iMXGA10,MXGH1#,ZVG12202207-202301

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-16201iMXGA10,MXGH1#,ZVG1#202207-202409

sub67841-16202

main67841-16202iMXGA10,MXGH1#,ZVG1#202410

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-16131iMXGA10,MXGH1#,ZVG1#202207-202409

sub67842-16132

main67842-16132iMXGA10,MXGH1#,ZVG1#202410

67845DSEAL, REAR DOOR FRONT OUTSIDE, RH

main67845-16020iMXGA10,MXGH1#,ZVG1#202207

67846ASEAL, REAR DOOR FRONT OUTSIDE, LH

main67846-16010iMXGA10,MXGH1#,ZVG1#202207

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-12150iMXGA10,MXGH1#,ZVG1#202207

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150iMXGA10,MXGH1#,ZVG1#202207

67869DCLIP, DOOR WEATHERSTRIP

main67869-20030iMXGA10,MXGH1#,ZVG1#202207

67871WEATHERSTRIP, REAR DOOR, RH

main67871-16220iMXGA10,MXGH1#,ZVG1#202207

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-12150iMXGA10,MXGH1#,ZVG1#202207

67872WEATHERSTRIP, REAR DOOR, LH

main67872-16220iMXGA10,MXGH1#,ZVG1#202207

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-16080iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

GEORGIA,AZERBAIJAN SPEC

main68103-16090iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-16080iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

GEORGIA,AZERBAIJAN SPEC

main68104-16090iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-16190iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

GEORGIA,AZERBAIJAN SPEC

main68123-16200iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-16190iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR202207

GEORGIA,AZERBAIJAN SPEC

main68124-16200iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G202207

68142CRUN, REAR DOOR GLASS, RH

main68142-16130iMXGA10,MXGH1#,ZVG1#202207

68152CRUN, REAR DOOR GLASS, LH

main68152-16050iMXGA10,MXGH1#,ZVG1#202207

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-16090iMXGA10,MXGH1#,ZVG1#202207

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-16090iMXGA10,MXGH1#,ZVG1#202207

68630CHECK ASSY, REAR DOOR

main68630-16070iMXGA10,MXGH1#,ZVG1#202207

7503

9010908295

main90109-08295

9011906983

main90119-06983

9015150026

main90151-50026

9095001604

main90950-01604

9095001620

main90950-01620

9095001998

main90950-01998

9095006105

main90950-06105

9095006115

main90950-06115

9167380616

main91673-80616

38 parts on this diagram · 2 diagrams in section
