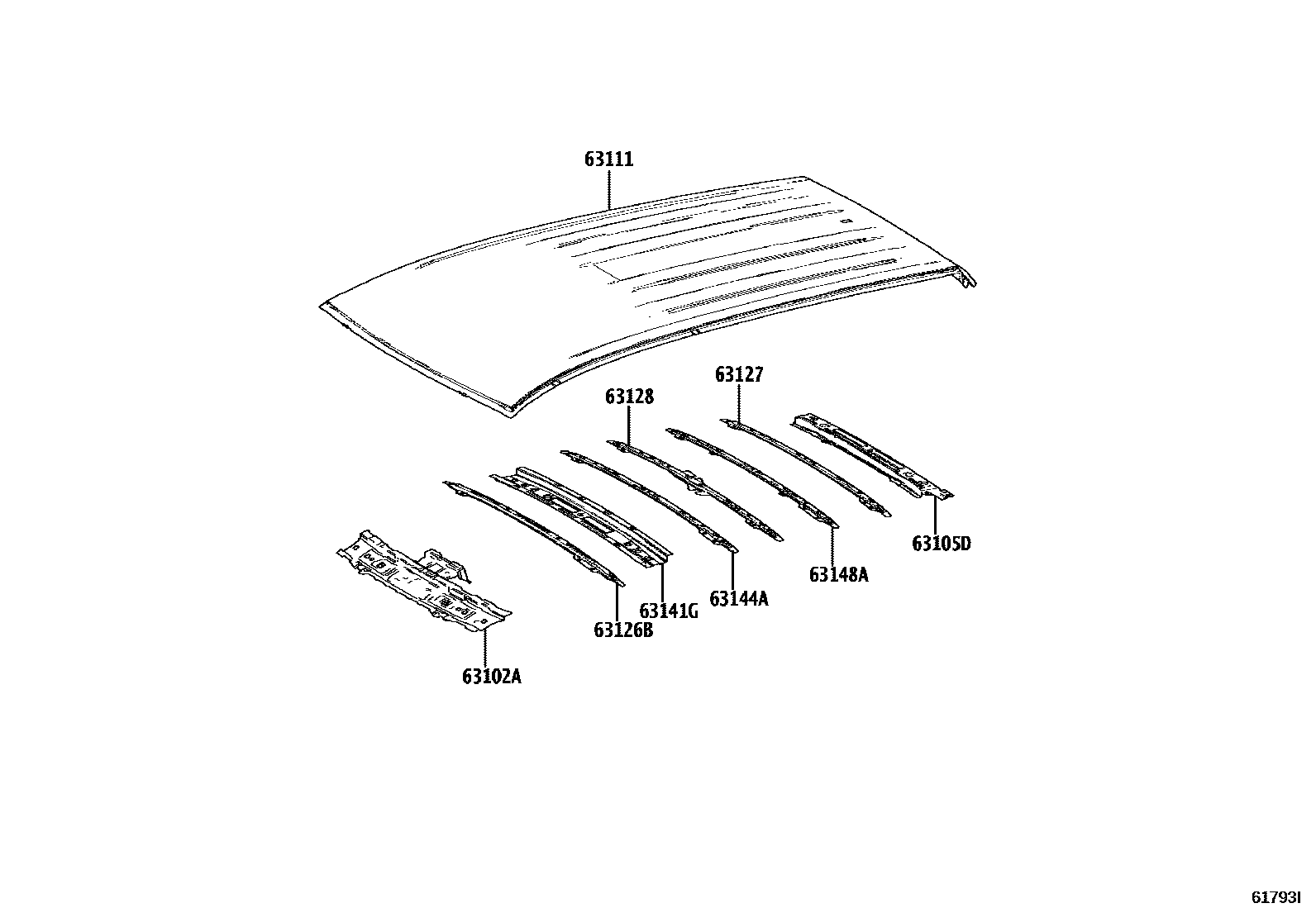

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1ROOF PANEL(PANORAMA ROOF) 0003 1PANORAMA ROOF 0004 1ROOF RAIL(TYPE A) 0005 1ROOF RAIL(TYPE B)

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-16050iMXGA10,MXGH1#,ZVG1#¥4,420202207

63105DFRAME SUB-ASSY, BACK WINDOW, UPPER

main63105-16070iMXGA10,MXGH1#,ZVG1#¥4,420202207

63111PANEL, ROOF

main63111-16320iMXGA10,MXGH10..J;MXGH12,15,ZVG1#..N..EUR¥39,700202207

main63111-16330iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G¥43,700202207-202401

sub63111-16331¥39,700

sub90333-16003¥80

main63111-16331iMXGH15..N..ARL;MXGA10,MXGH10..E,N;MXGH12,15,ZVG1#..E,G¥39,700202401

ROOF RAIL-WITH

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-16030iMXGA10,MXGH1#,ZVG1#¥1,420202207

63127REINFORCEMENT, ROOF PANEL, NO.5

main63127-16030iMXGA10,MXGH1#,ZVG1#¥1,170202207

63128REINFORCEMENT, ROOF PANEL, NO.6

main63128-16010iMXGA10,MXGH1#,ZVG1#¥1,390202207

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-16130iMXGA10,MXGH1#,ZVG1#¥6,100202207

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-16050iMXGA10,MXGH1#,ZVG1#¥1,220202207

63148AREINFORCEMENT, ROOF PANEL, NO.7

main63148-16040iMXGA10,MXGH1#,ZVG1#¥1,240202207

9 parts on this diagram · 5 diagrams in section
