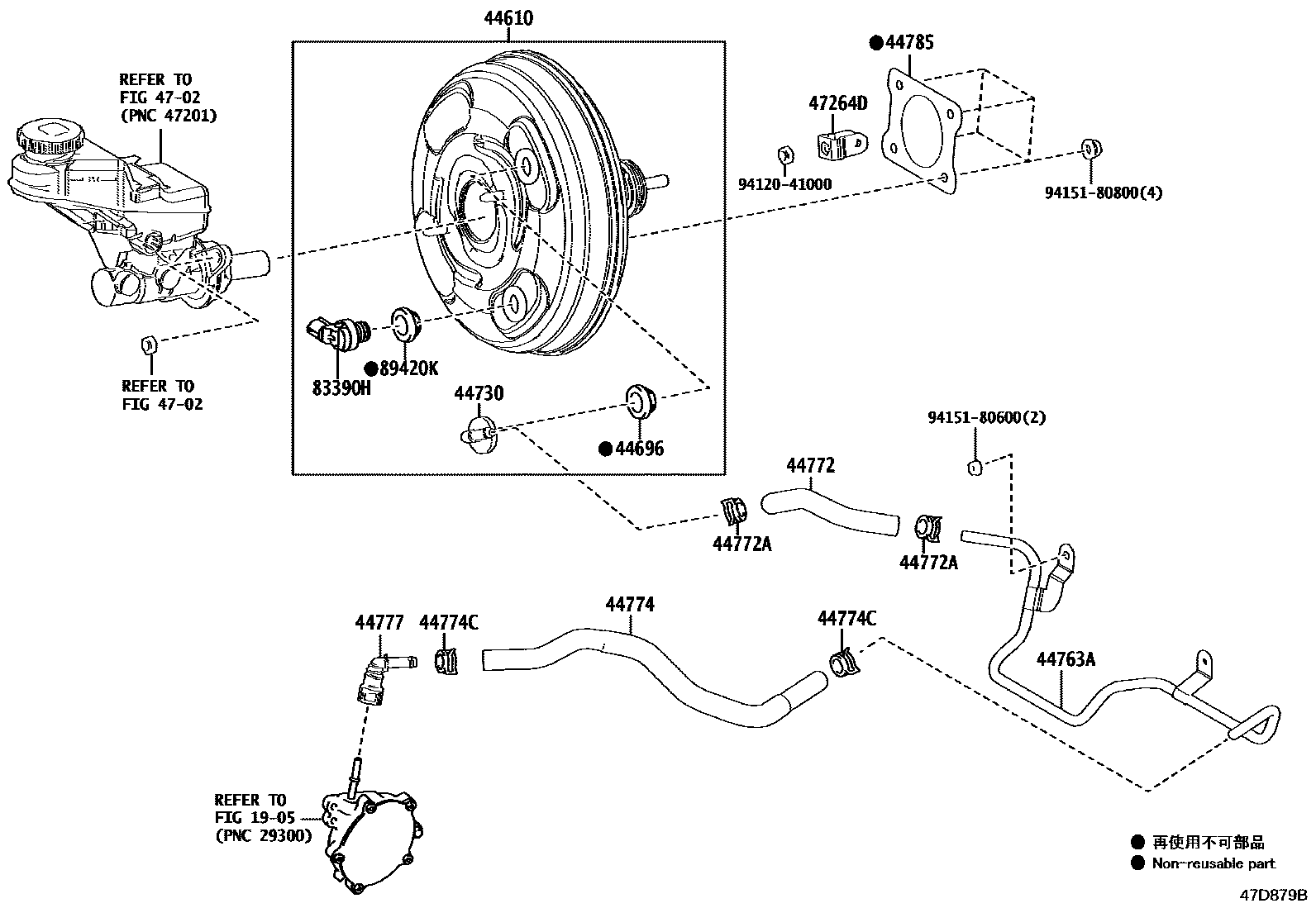

BRAKE BOOSTER & VACUUM TUBE

1905

44610BOOSTER ASSY, BRAKE

main44610-16700iMXGA10202207

44696GROMMET, CHECK VALVE

main90480-24439iMXGA10202207

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-52010iMXGA10202207

44763ATUBE, HOSE TO HOSE, NO.1

main44763-12590iMXGA10202207

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-12810iMXGA10202207

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iMXGA10202207

44774HOSE, UNION TO CONNECTOR TUBE

main44774-12860iMXGA10202207

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iMXGA10202207

44777CONNECTOR, VACUUM HOSE, NO.1

main44777-12010iMXGA10202207

44785GASKET, BRAKE BOOSTER

main44785-12040iMXGA10202207

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63010iMXGA10202207-202401

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iMXGA10202207

89420KGROMMET, VACUUM SENSOR

main90480-24439iMXGA10202207

9412041000

main94120-41000

9415180600

main94151-80600

9415180800

main94151-80800

18 parts on this diagram · 1 diagram in section
