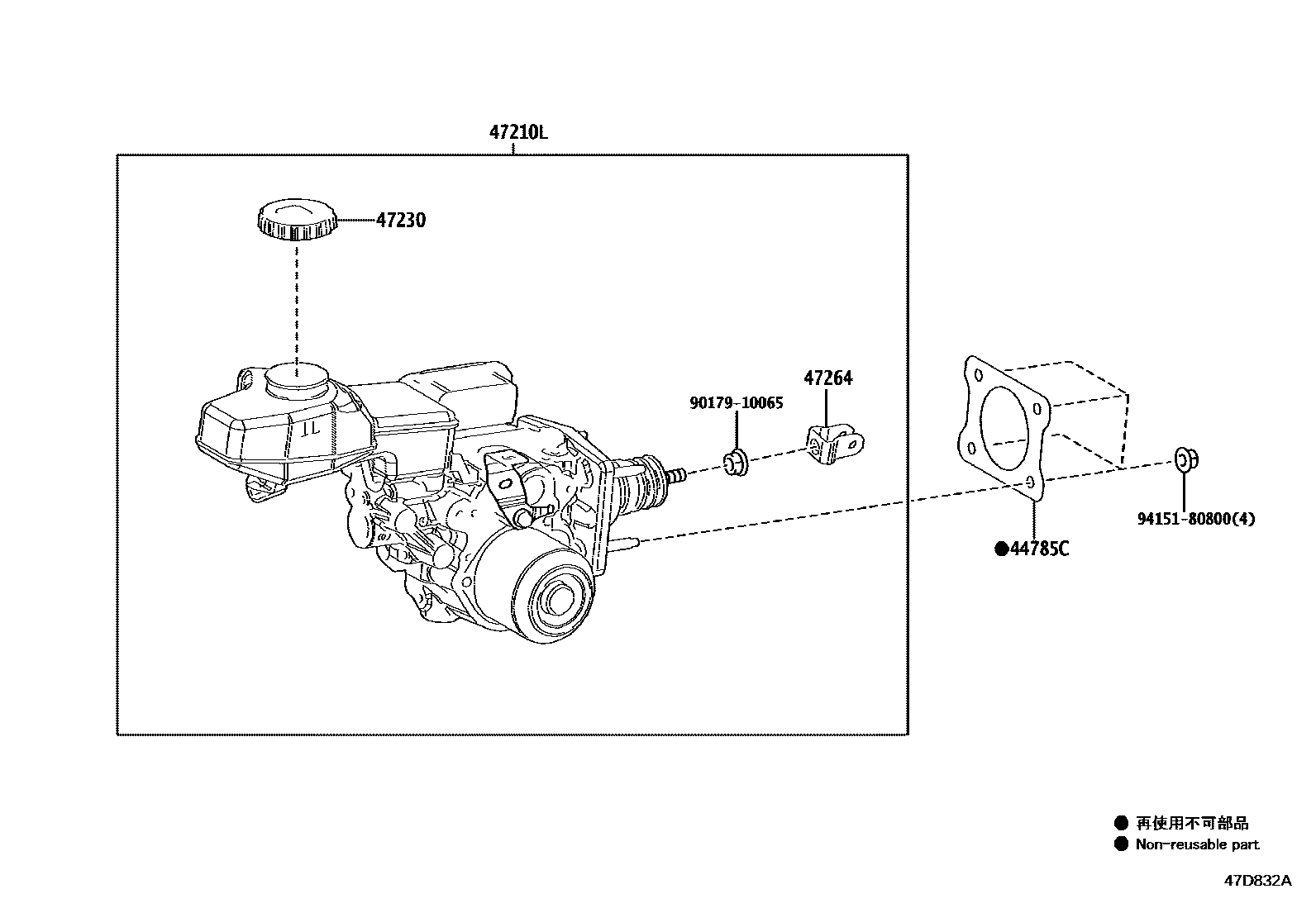

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

44785CGASKET, BRAKE BOOSTER

main44785-12040iMXGH1#,ZVG1#202207

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-16090iMXGH12,15,ZVG1#..LHD202207-202401

*614

main47050-16100iMXGH1#,ZVG13..RHD202207-202401

*614

main47050-16180iMXGH12,15,ZVG1#..LHD202401

*614

main47050-16190iMXGH1#,ZVG13..RHD202401

*614

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-47090iMXGA10,MXGH1#,ZVG1#202207

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-12060iMXGH1#,ZVG1#202207

9017910065

main90179-10065

9415180800

main94151-80800

6 parts on this diagram · 3 diagrams in section
