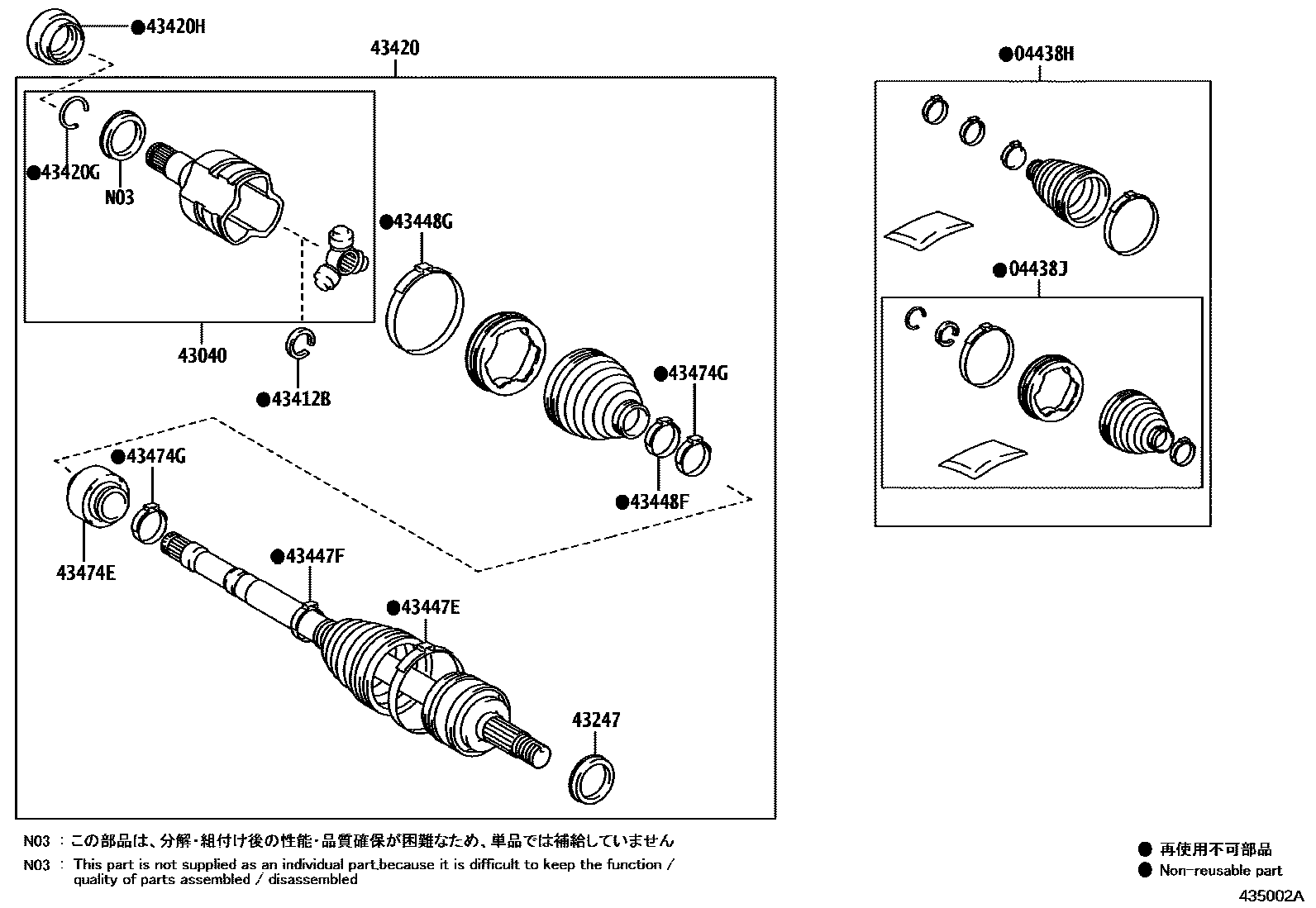

FRONT DRIVE SHAFT

0001 1LH 0002 1RH 0003 1

04438HBOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH

main04428-10021iMXGA10,MXGH1#,ZVG1#202207

04438JBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH

main04438-10120iMXGA10,MXGH1#,ZVG1#202207

43040JOINT ASSY, FRONT DRIVE INBOARD, LH

main43040-12170iMXGA10,MXGH1#,ZVG1#202207

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iMXGA10,MXGH1#,ZVG1#202207

43412BRING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)

main43425-12070iMXGA10,MXGH1#,ZVG1#202207

43420SHAFT ASSY, FRONT DRIVE, LH

main43420-16340iZVG1#202207

main43420-76020iMXGA10,MXGH1#202207

43420GRING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)

main90521-33002iMXGA10,MXGH1#,ZVG1#202207

43420HOIL SEAL, FRONT DRIVE SHAFT, LH

main90311-50058iMXGA10202207

main90311-50062iMXGH1#,ZVG1#202207

43447ECLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12240iMXGA10,MXGH1#,ZVG1#202207

43447FCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)

main42345-12230iMXGA10,MXGH1#,ZVG1#202207

43448FCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12230iMXGA10,MXGH1#,ZVG1#202207

43448GCLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)

main42345-12180iMXGA10,MXGH1#,ZVG1#202207

43474EDAMPER, FRONT DRIVE SHAFT, LH

main43474-12160iMXGA10,MXGH1#202207

main43474-47040iZVG1#202207

43474GCLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)

main42345-12090iMXGA10,MXGH1#,ZVG1#202207

14 parts on this diagram · 3 diagrams in section
