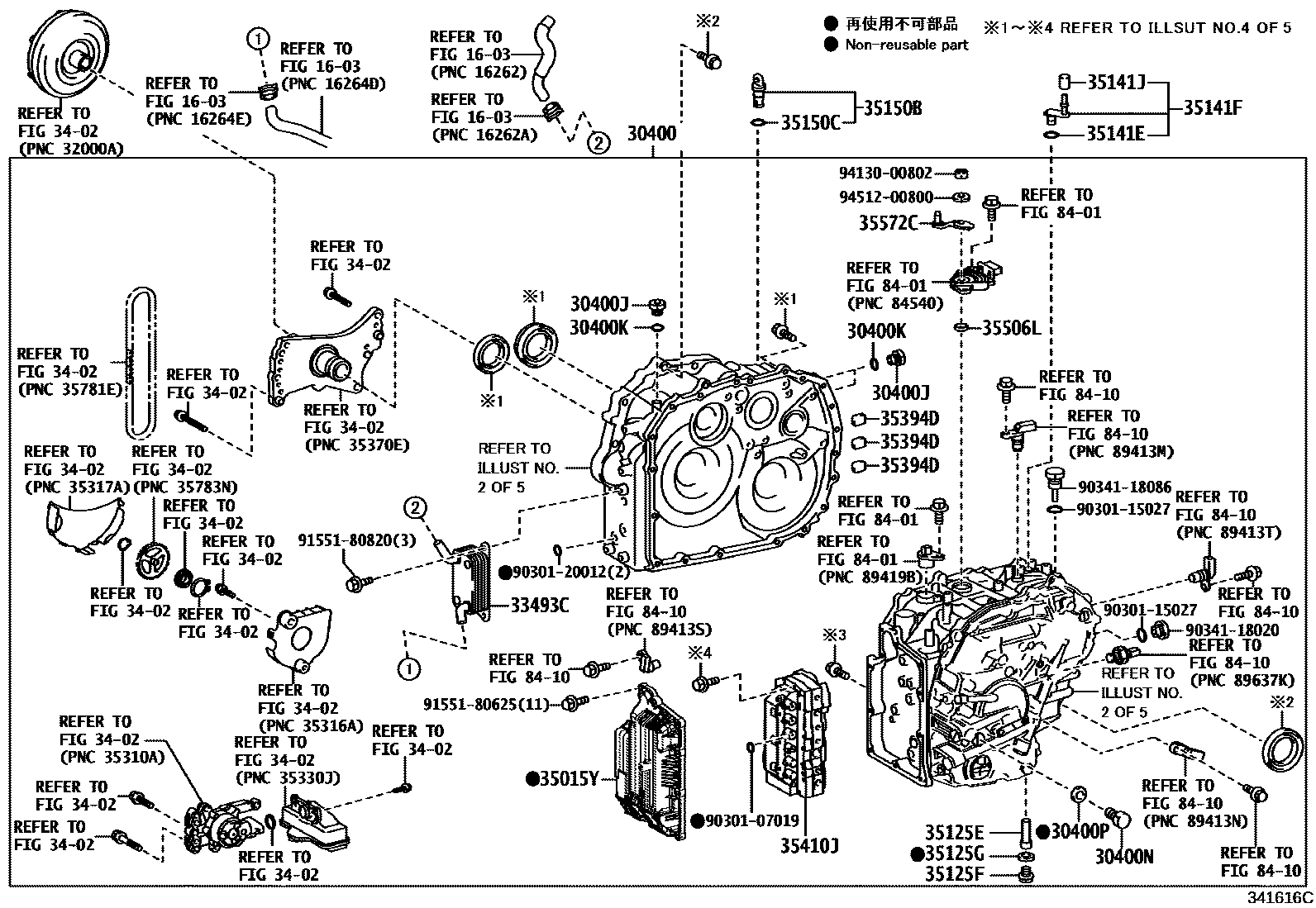

TRANSAXLE ASSY(CVT)

0001 1K120 0002 1K120 0003 1K120 0004 1K120 0005 1K120

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-16010iMXGA10202207

K120

30400JPLUG, TRANSAXLE HOLE

main90341-08001iMXGA10202207

30400KGASKET, TRANSAXLE HOLE PLUG

main90301-06196iMXGA10202207

30400NPLUG, REFILL(CVT)

main90341-18077iMXGA10202207

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iMXGA10202207

33493CCOOLER, TRANSMISSION OIL

main33493-12090iMXGA10202207

3402

35015YCOVER SUB-ASSY, TRANSAXLE SIDE

main35015-42010iMXGA10202207

35125ETUBE, OVERFLOW(CVT)

main35125-12500iMXGA10202207

35125FPLUG, OVERFLOW(CVT)

main90341-18016iMXGA10202207

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-18008iMXGA10202207

35141ERING, O(FOR BREATHER PLUG)

main90301-09173iMXGA10202207

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03240iMXGA10202207

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03243iMXGA10202207

35150BPLUG ASSY, TRANSMISSION CASE

main35150-44010iMXGA10202207

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iMXGA10202207

35394DMAGNET, OIL CLEANER(CVT)

main35394-48010iMXGA10202207

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12881iMXGA10202207

35506LSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iMXGA10202207

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12190iMXGA10202207

8401

8410

9030107019

main90301-07019

9030115027

main90301-15027

9030120012

main90301-20012

9034118020

main90341-18020

9034118086

main90341-18086

9155180625

main91551-80625

9155180820

main91551-80820

9413000802

main94130-00802

9451200800

main94512-00800

32 parts on this diagram · 5 diagrams in section
