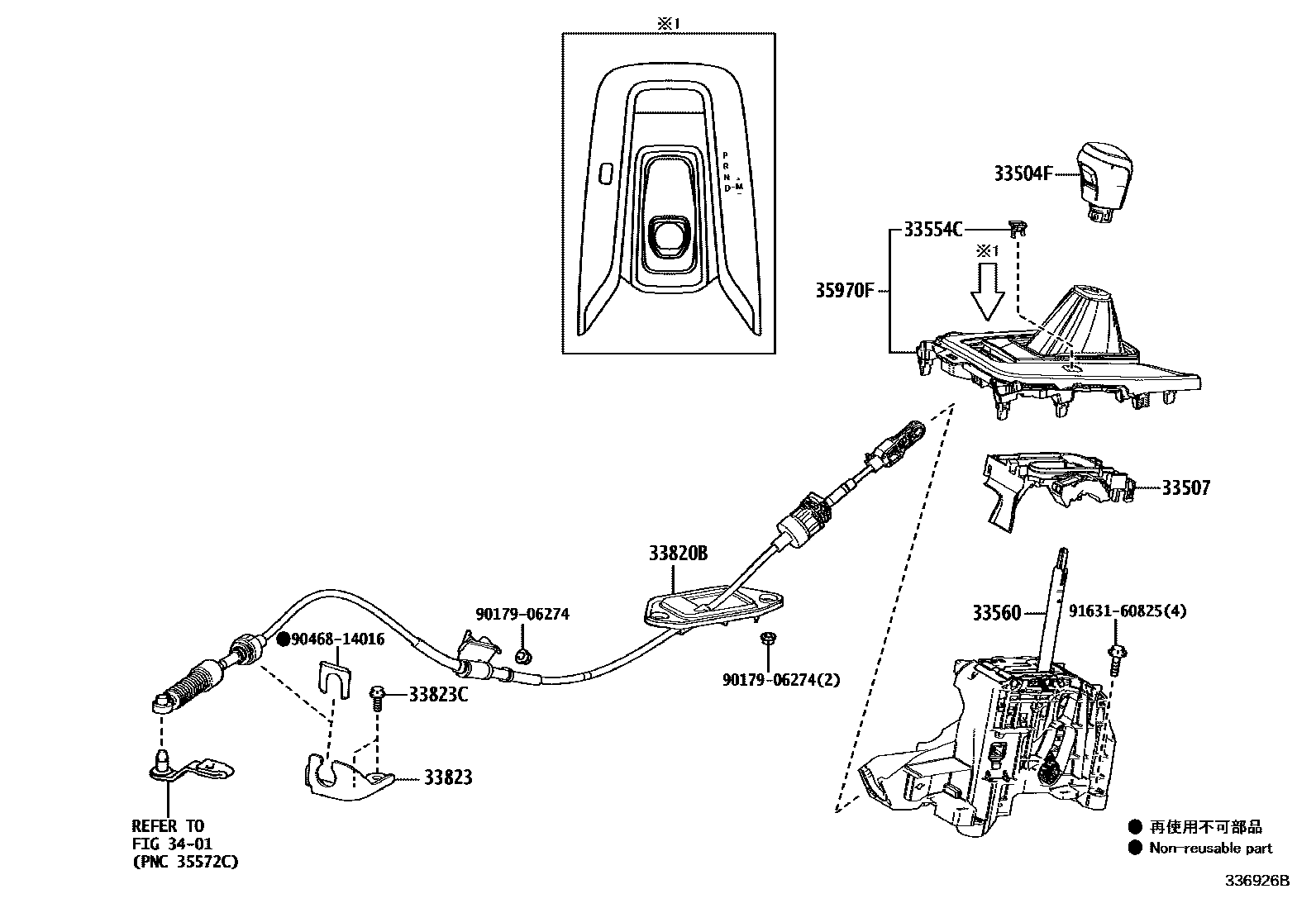

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12800-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM2#

main33504-12800-C0iMXGA10,MXGH10,15..E..ARL202207

BLACK,TRIM1#,2#

main33504-33170-C0iMXGA10,MXGH10..J202207

BLACK,TRIM1#,2#

main33504-33170-C0iMXGA10,MXGH10..J202207

STEERING WHEEL-URETHANE,BLACK,TRIM1#,2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-12030iMXGH12,15,ZVG1#..LHD202207

main33507-12040iMXGA10,MXGH1#,ZVG13..RHD202207

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-12210iMXGH12,15,ZVG1#..LHD202207

main33554-12220iMXGA10,MXGH1#,ZVG13..RHD202207

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-10020iMXGA10202207

main33560-10030iMXGH1#,ZVG13..RHD202207

main33560-12670iMXGH12,15,ZVG1#..LHD202207

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-16250iMXGA10202207

main33820-16260iZVG1#202207

main33820-16270iMXGH10,12202207

main33820-16280iMXGH15202207

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12310iMXGA10202207

main33823-12360iZVG1#202207

main33823-16070iMXGH1#202207

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iMXGA10,MXGH1#,ZVG1#202207

3401

35970FHOUSING ASSY, POSITION INDICATOR

main35970-12590-C1iMXGH12,15,ZVG1#..LHD202207

BLACK & SILVER,TRIM1#,2#

main35970-12600-C1iMXGA10..E,N202207

BLACK & SILVER,TRIM2#

main35970-12600-C1iMXGA10..E,N202207

BLACK & SILVER,TRIM1#,2#

main35970-12620-C1iMXGH10,15..(E,N)..ARL202207

BLACK & SILVER,TRIM2#

main35970-12620-C1iMXGH10,15..(E,N)..ARL202207

BLACK & SILVER,TRIM1#,2#

9017906274

main90179-06274

9046814016

main90468-14016

9163160825

main91631-60825

12 parts on this diagram · 5 diagrams in section
