EXHAUST PIPE

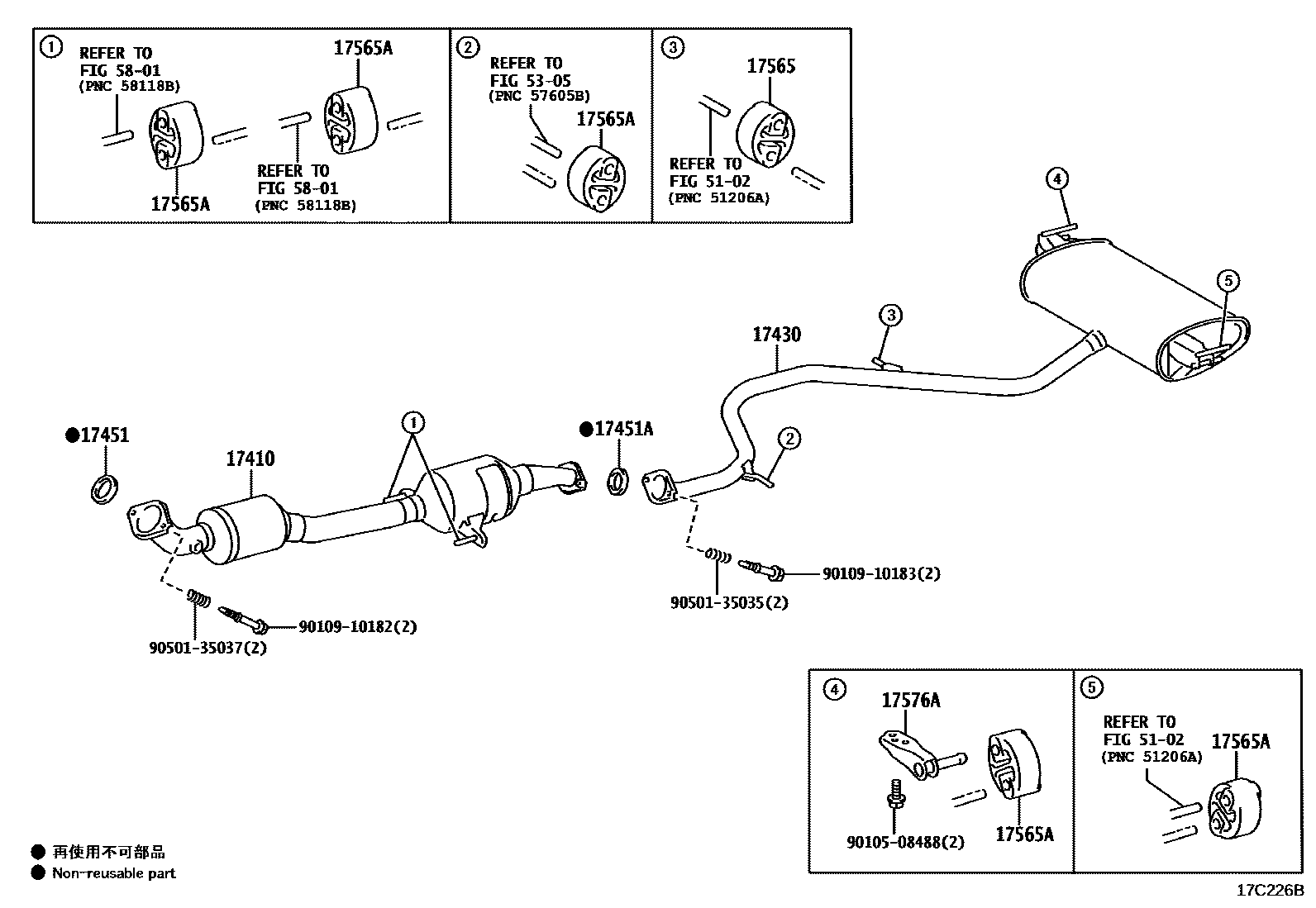

Parts diagram
17410PIPE ASSY, EXHAUST, FRONT
main17410-24640i202207-202312
main17410-24650i202207-202312
main17410-24670i202207
*114=TOYOTA/L56/Y
main17410-24690i202207-202312
GEORGIA,AZERBAIJAN SPEC
main17410-24690i202207-202312
UKRAINE SPEC
main17410-24690i202207-202312
UKRAINE,MOLDOVA SPEC
main17410-24890i202401
main17410-24A00i202401
main17410-24A10i202401
GEORGIA,AZERBAIJAN SPEC
main17410-24A10i202401
UKRAINE SPEC
main17410-24A10i202401
UKRAINE,MOLDOVA SPEC
main17410-37E20i202207
*114=TOYOTA/L57/Y
main17410-37F10i202303
*114=TOYOTA/L56/Y,MOON ROOF-WITH(PANORAMA ROOF)
main17410-37F20i202303
*114=TOYOTA/L56/Y
17430PIPE ASSY, EXHAUST, TAIL
main17430-24510i202207
main17430-24520i202207
main17430-24530i202207
main17430-24540i202207
main17430-37A20i202207
main17430-37C50i202303
17451GASKET, EXHAUST PIPE
main17451-24010i202207
main17451-28040i202207-202311
sub17451-28041
main17451-28041i202311
17451AGASKET, EXHAUST PIPE, NO.2
main17451-23042i202207-202311
sub17451-23043
main17451-23043i202311
main17451-24020i202207
17565SUPPORT, EXHAUST PIPE, NO.5
main17565-28010i202207
17565ASUPPORT, EXHAUST PIPE, NO.4
main17565-22040i202207
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
main17575-37030i202207
main17576-37010i202207
5102
5305
5801
9010508488
main90105-08488
9010910182
main90109-10182
9010910183
main90109-10183
9050135035
main90501-35035
9050135037
main90501-35037

15 parts on this diagram · 5 diagrams in section
