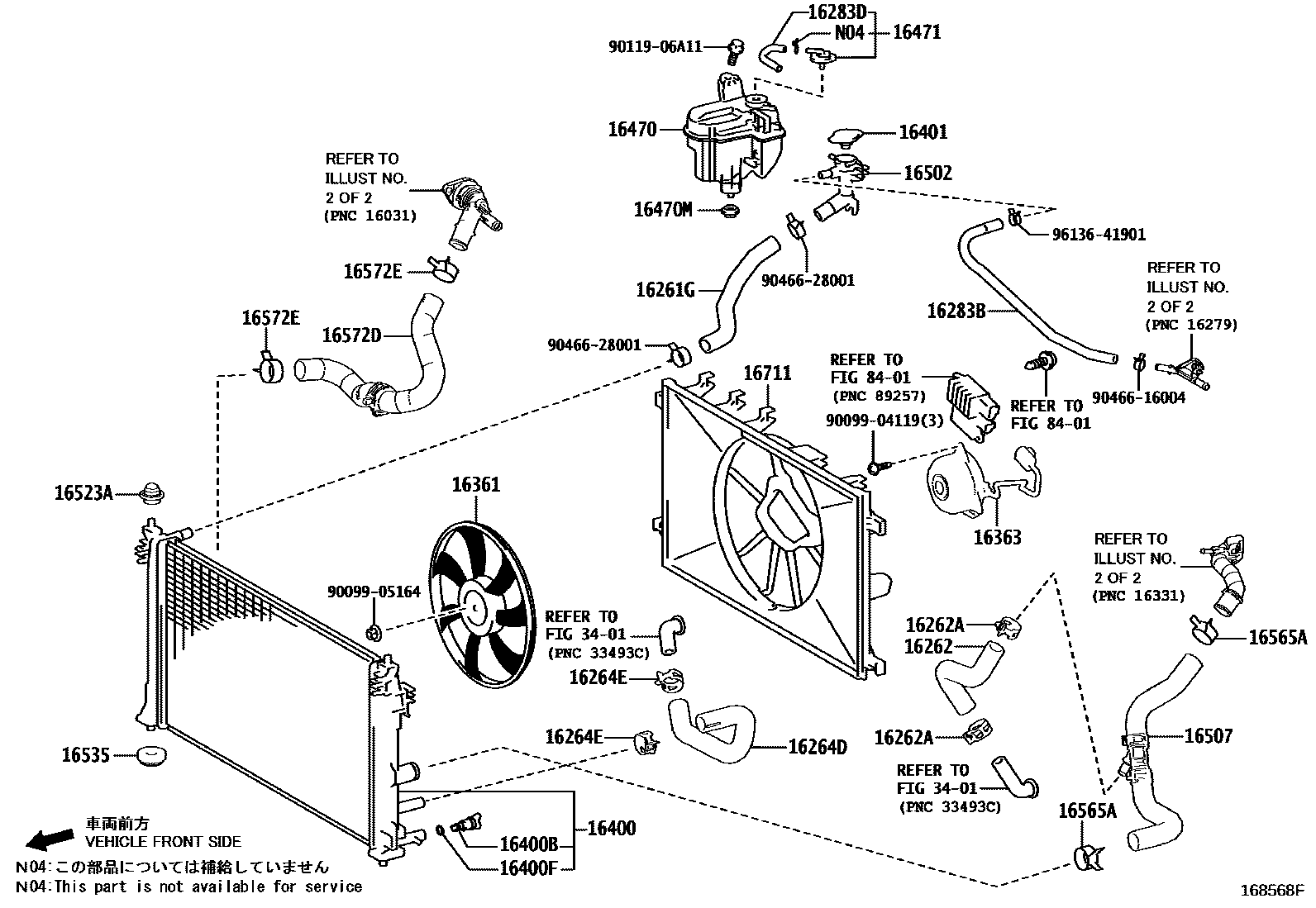

RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1RADIATOR SIDE 0003 1ENGINE SIDE 0004 1ENGINE SIDE 0005 1 0006 1

16261HOSE, WATER BY-PASS

main16261-37160i2ZRFXE..ZVG1#¥1,080202207

16261GHOSE, WATER BY-PASS, NO.1

main16261-37190iM20#..MXGA10,MXGH1#¥1,080202207

16262HOSE, WATER INLET

main16262-24020iM20AFKS..MXGA10¥540202207

16262ACLIP(FOR WATER INLET HOSE)

main96138-42501iM20AFKS..MXGA10¥180202207

16264HOSE, WATER BY-PASS, NO.2

main16264-24060iM20AFKS..MXGA10¥790202207

main16264-37130i2ZRFXE..ZVG1#¥1,010202207

16264DHOSE, WATER BY-PASS, NO.2

main16264-24070iM20AFKS..MXGA10¥1,010202207

16264ECLIP(FOR WATER BY-PASS HOSE NO.2)

main96138-42501iM20AFKS..MXGA10¥180202207

16283HOSE, WATER BY-PASS, NO.6

main16283-24010iM20AFKS..MXGA10¥540202207

main16283-24020iM20AFXS..MXGH1#¥540202207

main16283-37021i2ZRFXE..ZVG1#¥350202207

16283BHOSE, WATER BY-PASS

main16281-24060iM20AFKS..MXGA10¥790202207

main16281-24070iM20AFXS..MXGH1#¥1,010202207

16283DHOSE, WATER BY-PASS, NO.6

main16283-37030i2ZRFXE..ZVG12¥0202207-202208

16361FAN

main16361-24130iM20AFKS..MXGA10¥4,330202207

16363MOTOR, COOLING FAN

main16363-24120iM20AFKS..MXGA10¥15,900202207

16400RADIATOR ASSY

main16400-24380iM20AFKS..MXGA10¥33,500202207

main16400-24390iM20AFXS..MXGH1#¥32,500202207

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iM20AFKS..MXGA10¥360202207

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iM20AFKS..MXGA10¥210202207

16401CAP SUB-ASSY, RADIATOR

main16401-36030iM20#..MXGA10,MXGH1#¥900202207

16470TANK ASSY, RADIATOR RESERVE

main16470-37040iM20#..MXGA10,MXGH1#¥1,620202207

16470MGROMMET

main90480-18010iM20#..MXGA10,MXGH1#¥130202207

16471CAP SUB-ASSY, RESERVE TANK

main16405-37020iM20#..MXGA10,MXGH1#202207

16502FILLER SUB-ASSY, WATER

main16502-37040iM20#..MXGA10,MXGH1#¥1,670202207

16507PIPE SUB-ASSY, RADIATOR

main16570-24070iM20AFKS..MXGA10¥8,200202207

16523ACUSHION, RADIATOR SUPPORT

main16523-37010iM20#..MXGA10,MXGH1#¥400202207

16535SUPPORT, RADIATOR, LOWER

main16535-28030iM20AFKS..MXGA10¥660202207

main90480-40021iM20AFXS..MXGH1#¥220202207

16565ACLIP

main90466-43002iM20AFKS..MXGA10¥240202207

16572DHOSE, RADIATOR, NO.2

main16572-24030iM20AFKS..MXGA10¥1,350202207

main16572-24090iM20AFXS..MXGH1#¥1,220202207

main16572-37250i2ZRFXE..ZVG1#¥1,080202207

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iM20#..MXGA10,MXGH1#¥240202207

16711SHROUD, FAN

main16711-24160iM20AFKS..MXGA10¥5,100202207

main16711-24170iM20AFXS..MXGH1#¥5,900202207

main16711-37150i2ZRFXE..ZVG1#¥5,900202207

3401

8401

9009904119

main90099-04119

9009905164

main90099-05164¥0

9011906A11

main90119-06A11¥60

9046616004

main90466-16004¥180

9046628001

main90466-28001¥220

9613641901

main96136-41901¥120

35 parts on this diagram · 6 diagrams in section
